Machine vision lenses
Industrial FA machine vision lens, C mount, 75 mm, 1", C-mount (LS-FFL-1160)
Model LS-FFL-1160
- Focal length75mm
- MountC-mount
- Sensor1"
- ApertureF2.8
- Resolution10MP
- Field of viewD 12.5° / H 10° / V 7.3°
$549.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial FA machine vision automation lenses with C mount, listed by sensor format, focal length and resolution.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1160 |
|---|---|
| Format | 1" |
| F No. | 2.8 |
| BFL (mm) | 23.15 |
| MOD | 0.5m |
| FOV D (deg) | 12.5 |
| FOV H (deg) | 10 |
| FOV V (deg) | 7.3 |
Optics
| Focal length | 75mm |
|---|---|
| Distortion | 0.75% |
| TTL (mm) | 76.75 |
| Aperture | F2.8 |
| Field of view | D 12.5° / H 10° / V 7.3° |
Sensor and imaging
| Resolution | 10MP |
|---|---|
| Sensor format | 1" |

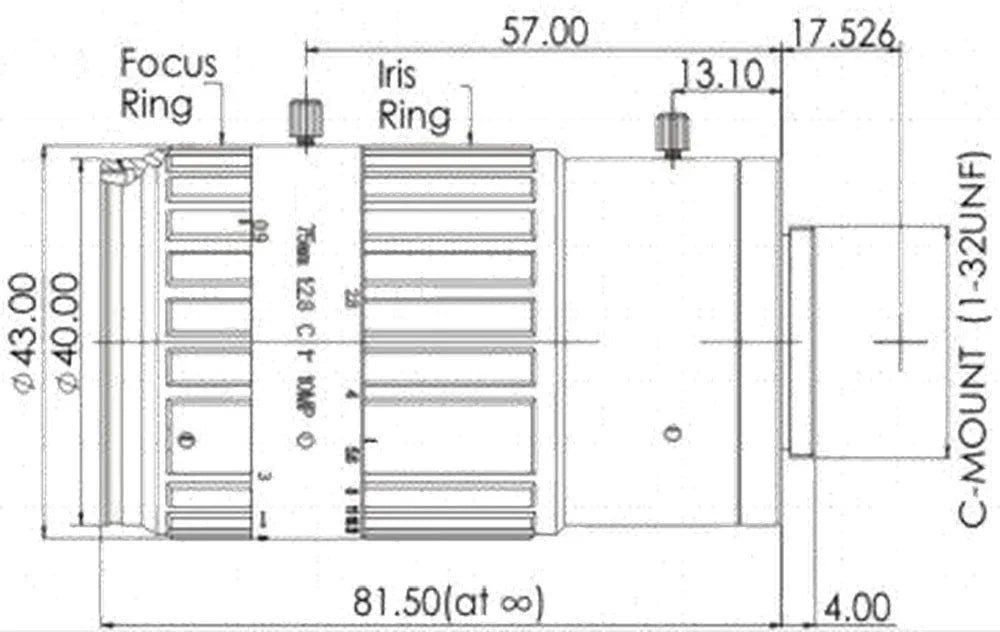

Mechanical
| Mount | C |
|---|---|
| Size (mm) | dia. 42.7 x 60.35 |
| Filter size | M39 x 0.5 |
| Weight | 187 g |
