Machine vision lenses
Industrial FA machine vision lens, C mount, 35 mm, 1", C-mount (LS-FFL-1157)
Model LS-FFL-1157
- Focal length35mm
- MountC-mount
- Sensor1"
- ApertureF2
- Resolution10MP
- Field of viewD 26° / H 21° / V 16°
$479.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial FA machine vision automation lenses with C mount, listed by sensor format, focal length and resolution.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1157 |
|---|---|
| Format | 1" |
| F No. | 2 |
| BFL (mm) | 12.96 |
| MOD | 0.2m |
| FOV D (deg) | 26 |
| FOV H (deg) | 21 |
| FOV V (deg) | 16 |
Optics
| Focal length | 35mm |
|---|---|
| Distortion | 0.33% |
| TTL (mm) | 49.58 |
| Aperture | F2 |
| Field of view | D 26° / H 21° / V 16° |
Sensor and imaging
| Resolution | 10MP |
|---|---|
| Sensor format | 1" |

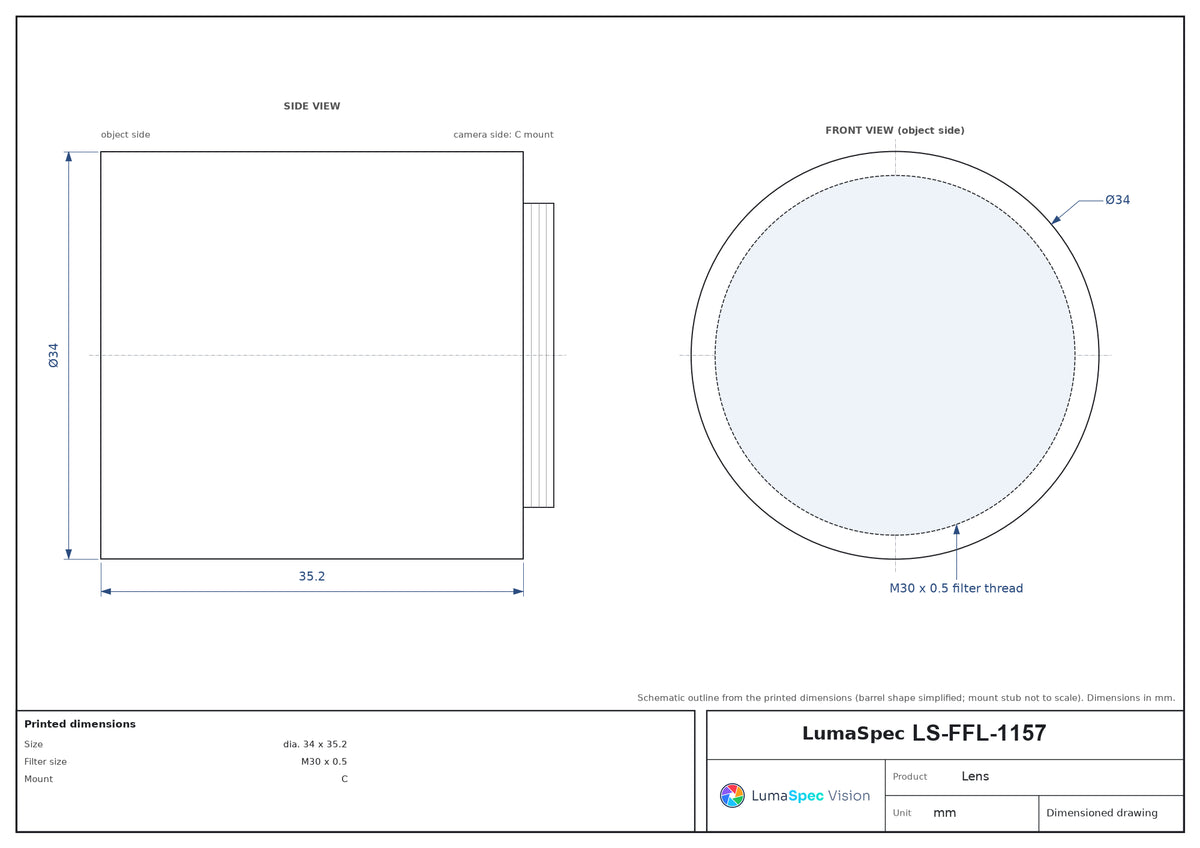

Mechanical
| Mount | C |
|---|---|
| Size (mm) | dia. 34 x 35.2 |
| Filter size | M30 x 0.5 |
| Weight | 98 g |
Other models in the Industrial FA machine vision lens, C mount (LS-FFL-S100) series
See all 29 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1167 | 16 mm, 1/1.8", C-mount | $189.00 | Ships in 2-3 weeks | View |
| LS-FFL-1166 | 16 mm, 1/1.8", C-mount | $189.00 | Ships in 2-3 weeks | View |
| LS-FFL-1169 | 25 mm, 1/1.8", C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-1168 | 25 mm, 1/1.8", C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-1170 | 30 mm, 1/1.8", C-mount | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-1172 | 40 mm, 1/1.8", C-mount | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-1171 | 35 mm, 1/1.8", C-mount | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-1173 | 50 mm, 1/1.8", C-mount | $249.00 | Ships in 2-3 weeks | View |
| LS-FFL-1174 | 6 mm, 1/1.7", C-mount | $299.00 | Ships in 2-3 weeks | View |
| LS-FFL-1175 | 12 mm, 2/3", C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-1176 | 16 mm, 2/3", C-mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-1177 | 35 mm, 2/3", C-mount | $359.00 | Ships in 2-3 weeks | View |
| LS-FFL-1178 | 50 mm, 2/3", C-mount | $389.00 | Ships in 2-3 weeks | View |
| LS-FFL-1150 | 6 mm, 1.1", C-mount | $419.00 | Ships in 2-3 weeks | View |
| LS-FFL-1151 | 8 mm, 1.1", C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-1152 | 8 mm, 1", C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-1153 | 12 mm, 1", C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-1155 | 16 mm, 1", C-mount | $439.00 | Ships in 2-3 weeks | View |
| LS-FFL-1154 | 16 mm, 1", C-mount | $439.00 | Ships in 2-3 weeks | View |
| LS-FFL-1156 | 25 mm, 1", C-mount | $459.00 | Ships in 2-3 weeks | View |
| LS-FFL-1159 | 50 mm, 1", C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-1158 | 50 mm, 1", C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-1160 | 75 mm, 1", C-mount | $549.00 | Ships in 2-3 weeks | View |
| LS-FFL-1161 | 100 mm, 1", C-mount | $589.00 | Ships in 2-3 weeks | View |
