Machine vision lenses
Industrial FA machine vision lens, C mount, 30 mm, 1/1.8", C-mount (LS-FFL-1170)
Model LS-FFL-1170
- Focal length30mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8
- Resolution6MP
- Field of viewD 15° / H 13.5° / V 9°
$209.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial FA machine vision automation lenses with C mount, listed by sensor format, focal length and resolution.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1170 |
|---|---|
| Format | 1/1.8" |
| F No. | 2.8 |
| BFL (mm) | 17.3 |
| MOD | 0.2m |
| FOV D (deg) | 15 |
| FOV H (deg) | 13.5 |
| FOV V (deg) | 9 |
| CRA | 5.4° |
| Transmission | AT486~656nm T≥85% |
Optics
| Focal length | 30mm |
|---|---|
| Distortion | <0.22% |
| TTL (mm) | 41.07 |
| Aperture | F2.8 |
| Field of view | D 15° / H 13.5° / V 9° |
| Relative illumination | 86% (H=4.5mm WD=INF) |
Sensor and imaging
| Resolution | 6MP |
|---|---|
| Sensor format | 1/1.8" |

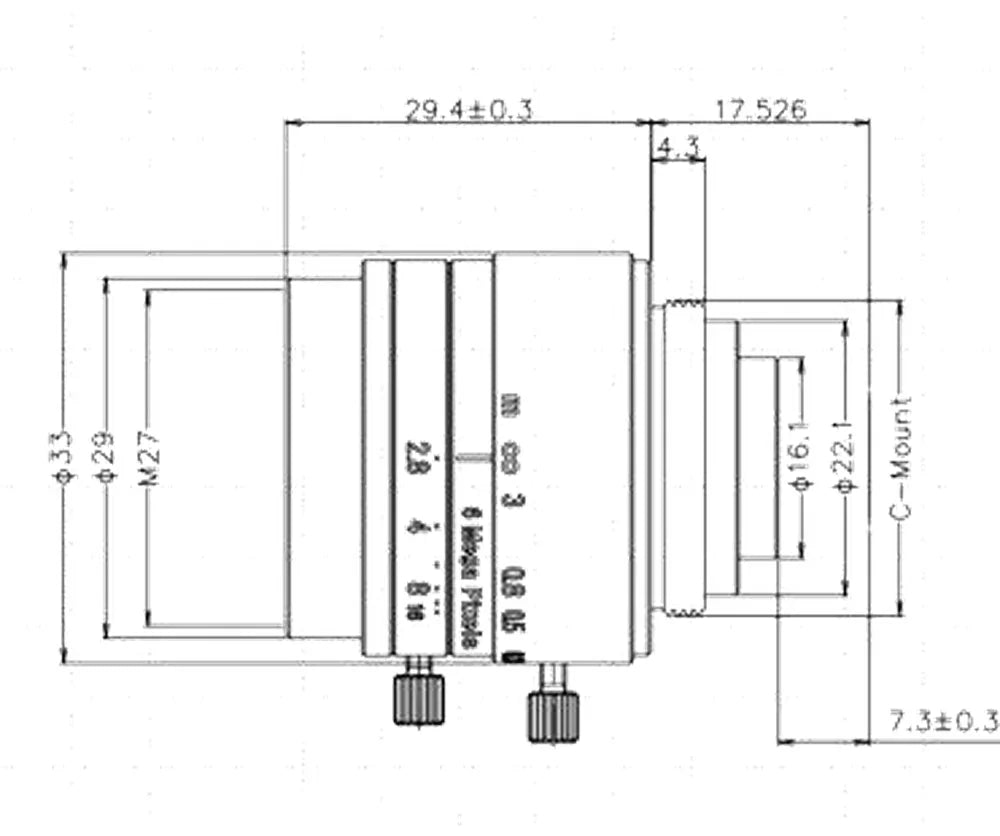

Mechanical
| Mount | C |
|---|---|
| Size (mm) | dia. 33 x 29.4 |
| Weight | 50g |
