Machine vision lenses
Industrial FA machine vision lens, C mount, 8 mm, 1/1.8", C-mount (LS-FFL-1164)
Model LS-FFL-1164
- Focal length8mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8
- Resolution6MP
- Field of viewD 60° / H 47.5° / V 37°
$169.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial FA machine vision automation lenses with C mount, listed by sensor format, focal length and resolution.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1164 |
|---|---|
| Format | 1/1.8" |
| F No. | 2.8 |
| BFL (mm) | 10.39 |
| MOD | 0.1m |
| FOV D (deg) | 60 |
| FOV H (deg) | 47.5 |
| FOV V (deg) | 37 |
| CRA | 10.8° |
| Transmission | AT486~656nm T≥85% |
Optics
| Focal length | 8mm |
|---|---|
| Distortion | <0.53% |
| TTL (mm) | 52 |
| Aperture | F2.8 |
| Field of view | D 60° / H 47.5° / V 37° |
| Relative illumination | 78% (H=4.5mm WD=INF) |
Sensor and imaging
| Resolution | 6MP |
|---|---|
| Sensor format | 1/1.8" |
Mechanical
| Mount | C |
|---|---|

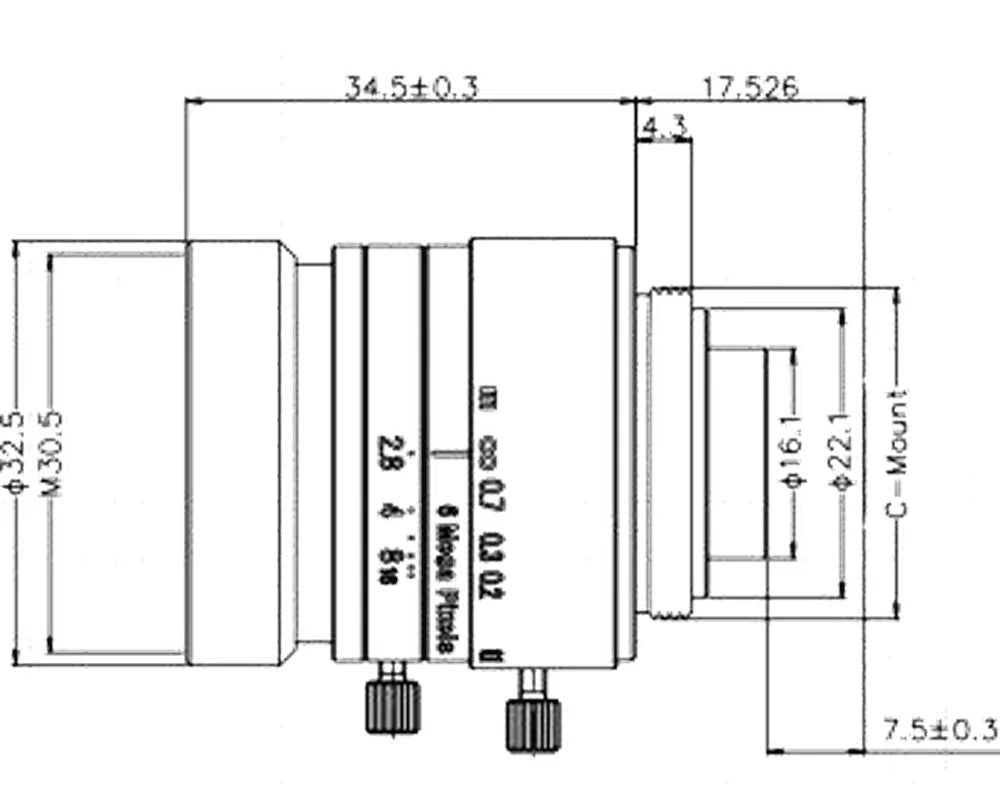

| Size (mm) | dia. 32.5 x 34.5 |
| Filter size | M30.5 x 0.5 |
| Weight | 61g |
