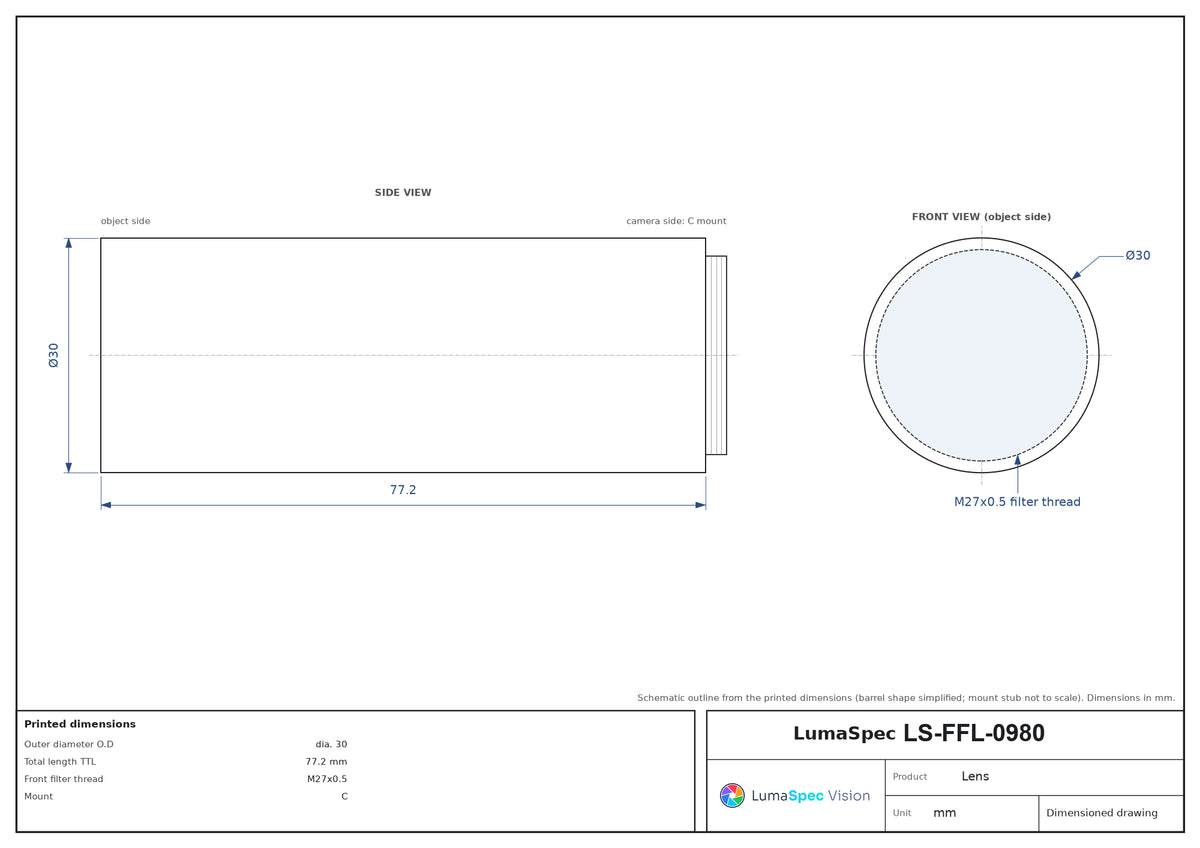

LS-FFL-0980 dimensions (mm)

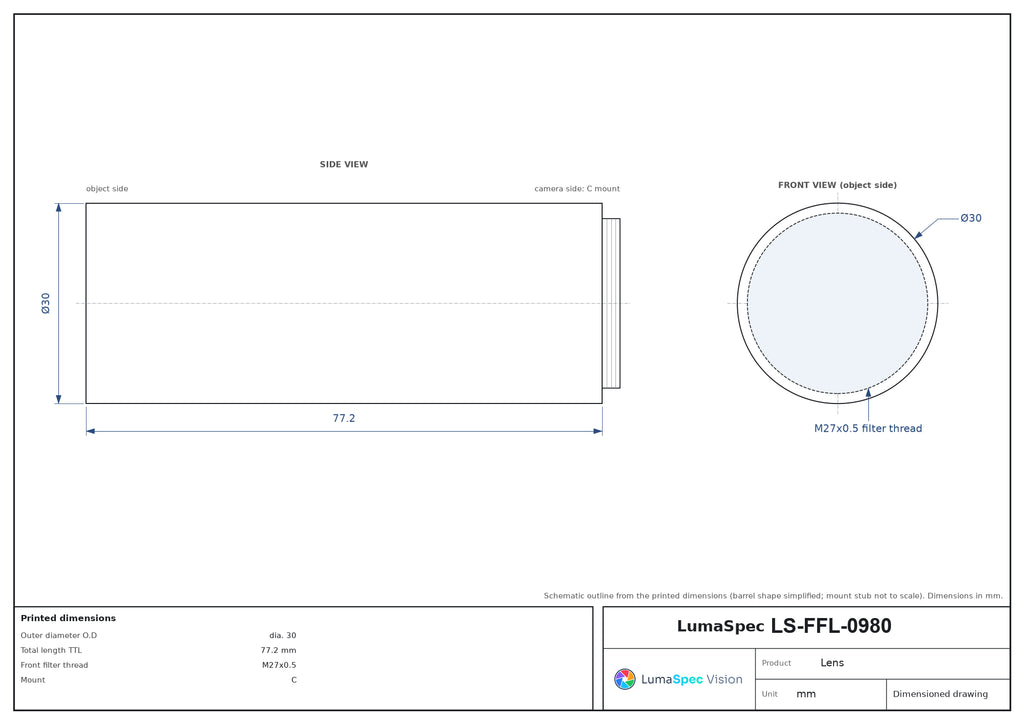

  • LS-FFL-0980 dimensions (mm)
  • 2/3", C-mount machine vision lens, 0.18x, WD 150 mm, length 77.2 mm (LS-FFL-0980)

Main picture: this model's dimensioned drawing, from its printed dimensions. The photo shows representative lenses of this series, not this exact model; size and shape differ by model.

Machine vision lenses

2/3", C-mount machine vision lens, 0.18x, WD 150 mm, length 77.2 mm (LS-FFL-0980)

Model LS-FFL-0980

  • Magnification0.18x
  • MountC-mount
  • Sensor2/3"
  • Working distance150 mm
  • Aperture12.6
$189.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2/3", C-mount machine vision lens, 0.18x, WD 150 mm, length 77.2 mm (LS-FFL-0980)LS-FFL-0980

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-FFL-0980: sensor format 2/3", image-side F/# 12.6, working distance 150 mm, magnification 0.18x.

2/3", C-mount Machine Vision Lens. At a glance: magnification 0.18x; working distance 150 mm; max sensor size 11 mm (2/3"); object-side resolution 47.1 µm; image-side f/# 12.6.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0980

Optics

Magnification (x)0.18
Working distance (mm)150
Image-side F/#12.6
Object-side telecentricity (deg max)Non-telecentric
Image-side distortion (% max)0.6
Numerical aperture NA0.00713
Object-side resolution (um)47.1
Theoretical depth of field (mm)31.1
Image-side MTF30 (lp/mm)50
Total length TTL (mm)77.2
Front filter threadM27x0.5
Measured depth of field as shipped (mm)10

Sensor and imaging

Sensor format2/3"
Max sensor size (dia. mm)11

Mechanical

Outer diameter O.D (mm)dia. 30
MountC
Shipping weight (estimated)0.31 kg

Photo shows a representative model of this series; see the specifications for this model.

Engineering data

Field of view with the LS-FFL-0980

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 11 mmCovers sensors up to 2/3"
Magnification0.18×
Distortion≤ 0.6 %
Total length77.2 mm
SizeØ 30 mm
NA0.00713
Depth of field31.1 mmtheoretical
Filter threadM27 × 0.5
MTF50 lp/mmimage side, at 30 % contrast
Field of view (width × height) by sensor format
Sensor format0.18×
1/2.9"4.98 × 3.74 mm27.7 × 20.8 mm
1/2"6.4 × 4.8 mm35.6 × 26.7 mm
1/1.8"7.07 × 5.3 mm39.3 × 29.4 mm
2/3"8.45 × 7.07 mm46.9 × 39.3 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Cameras this lens fits

7.1 mm sensor diagonal; this lens covers up to 11 mm

9.5 mm sensor diagonal; this lens covers up to 11 mm

3.2 mm sensor diagonal; this lens covers up to 11 mm

6.6 mm sensor diagonal; this lens covers up to 11 mm

8.9 mm sensor diagonal; this lens covers up to 11 mm

8.8 mm sensor diagonal; this lens covers up to 11 mm

Adapters

For CS-mount cameras

Other models in the Long working distance standard machine vision lenses (LS-FFL-S96) series

See all 288 models
ModelMagnificationWorking distanceAperturePriceAvailabilityLink
LS-FFL-0980This model0.18x150 mm12.6$189.00 Ships in 2-3 weeks
LS-FFL-10090.125x270 mm12.2$189.00 Ships in 2-3 weeks View
LS-FFL-09700.12x455 mm12.9$189.00 Ships in 2-3 weeks View
LS-FFL-09710.12x650 mm8.4$189.00 Ships in 2-3 weeks View
LS-FFL-09720.14x250 mm11$189.00 Ships in 2-3 weeks View
LS-FFL-09730.14x600 mm17$189.00 Ships in 2-3 weeks View
LS-FFL-09740.14x700 mm9.3$189.00 Ships in 2-3 weeks View
LS-FFL-09750.15x205 mm12.5$189.00 Ships in 2-3 weeks View
LS-FFL-09760.16x210 mm11.4$189.00 Ships in 2-3 weeks View
LS-FFL-09770.16x360 mm10$189.00 Ships in 2-3 weeks View
LS-FFL-09780.16x525 mm18.3$189.00 Ships in 2-3 weeks View
LS-FFL-09790.16x600 mm11.8$189.00 Ships in 2-3 weeks View
LS-FFL-10100.185x350 mm9.5$189.00 Ships in 2-3 weeks View
LS-FFL-09810.18x680 mm10.5$189.00 Ships in 2-3 weeks View
LS-FFL-09820.18x750 mm10$189.00 Ships in 2-3 weeks View
LS-FFL-10110.195x550 mm9.2$189.00 Ships in 2-3 weeks View
LS-FFL-09020.1x1405 mm9.6$189.00 Ships in 2-3 weeks View
LS-FFL-09830.21x520 mm14.5$189.00 Ships in 2-3 weeks View
LS-FFL-09840.22x135 mm11.9$189.00 Ships in 2-3 weeks View
LS-FFL-09850.22x145 mm11.9$189.00 Ships in 2-3 weeks View
LS-FFL-09860.22x235 mm14.1$189.00 Ships in 2-3 weeks View
LS-FFL-09870.22x275 mm11.3$189.00 Ships in 2-3 weeks View
LS-FFL-09880.22x300 mm10.4$189.00 Ships in 2-3 weeks View
LS-FFL-09890.22x580 mm12.5$189.00 Ships in 2-3 weeks View
LS-FFL-09900.24x490 mm10$189.00 Ships in 2-3 weeks View
