Machine vision lenses
2/3", C-mount Machine Vision Lens, 0.22x, WD 135 mm, length 66.5 mm (LS-FFL-0984)
Model LS-FFL-0984
- Magnification0.22x
- MountC-mount
- Sensor2/3"
- Working distance135 mm
- Aperture11.9
$189.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2/3", C-mount Machine Vision Lens. At a glance: magnification 0.22x; working distance 135 mm; max sensor size 11 mm (2/3"); object-side resolution 36.1 µm; image-side f/# 11.9.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0984 |
|---|
Optics
| Magnification (x) | 0.22 |
|---|---|
| Working distance (mm) | 135 |
| Image-side F/# | 11.9 |
| Object-side telecentricity (deg max) | Non-telecentric |
| Image-side distortion (% max) | 0.25 |
| Numerical aperture NA | 0.00929 |
| Object-side resolution (um) | 36.1 |
| Theoretical depth of field (mm) | 19.7 |
| Image-side MTF30 (lp/mm) | 75 |
| Total length TTL (mm) | 66.5 |
| Front filter thread | M27x0.5 |
| Measured depth of field as shipped (mm) | 6 |
Sensor and imaging
| Max sensor size (dia. mm) | 11(2/3") |
|---|

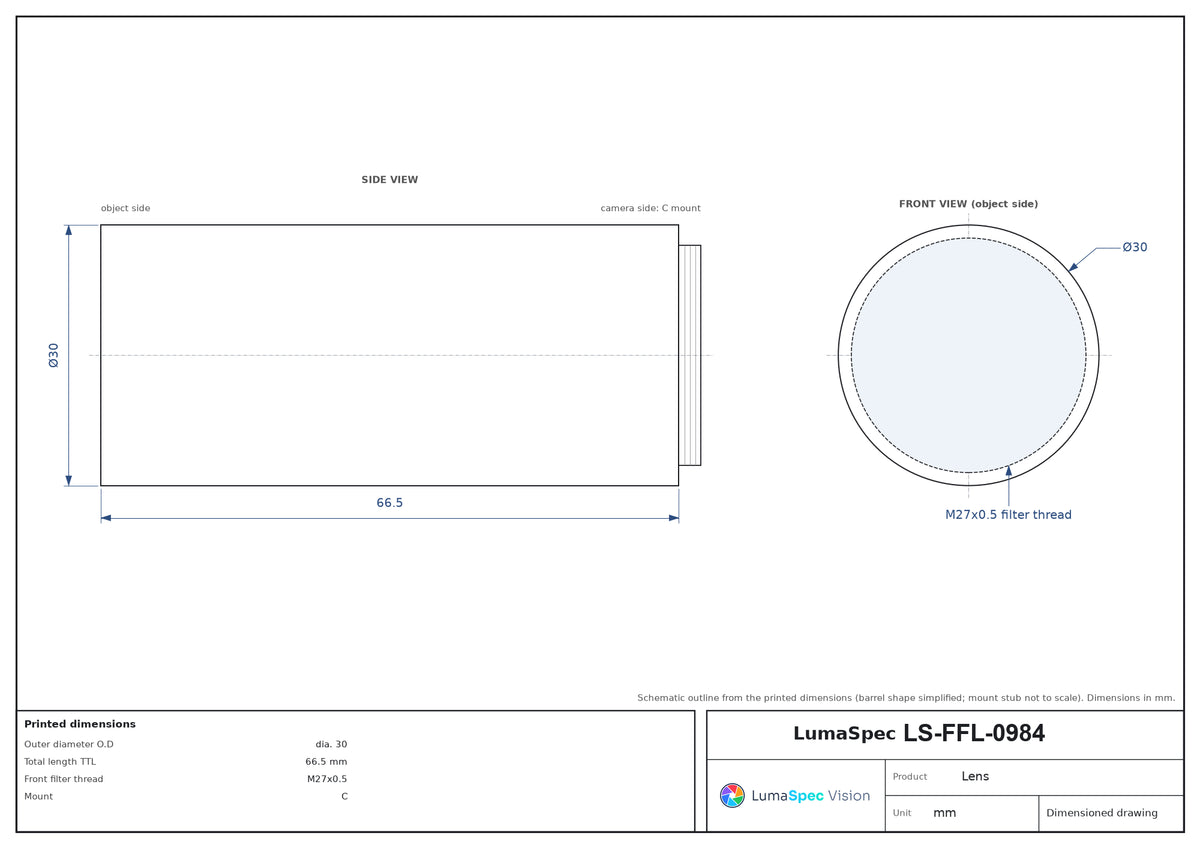

Mechanical
| Outer diameter O.D (mm) | dia. 30 |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.31 kg |
Photo shows a representative model of this series; see the specifications for this model.
