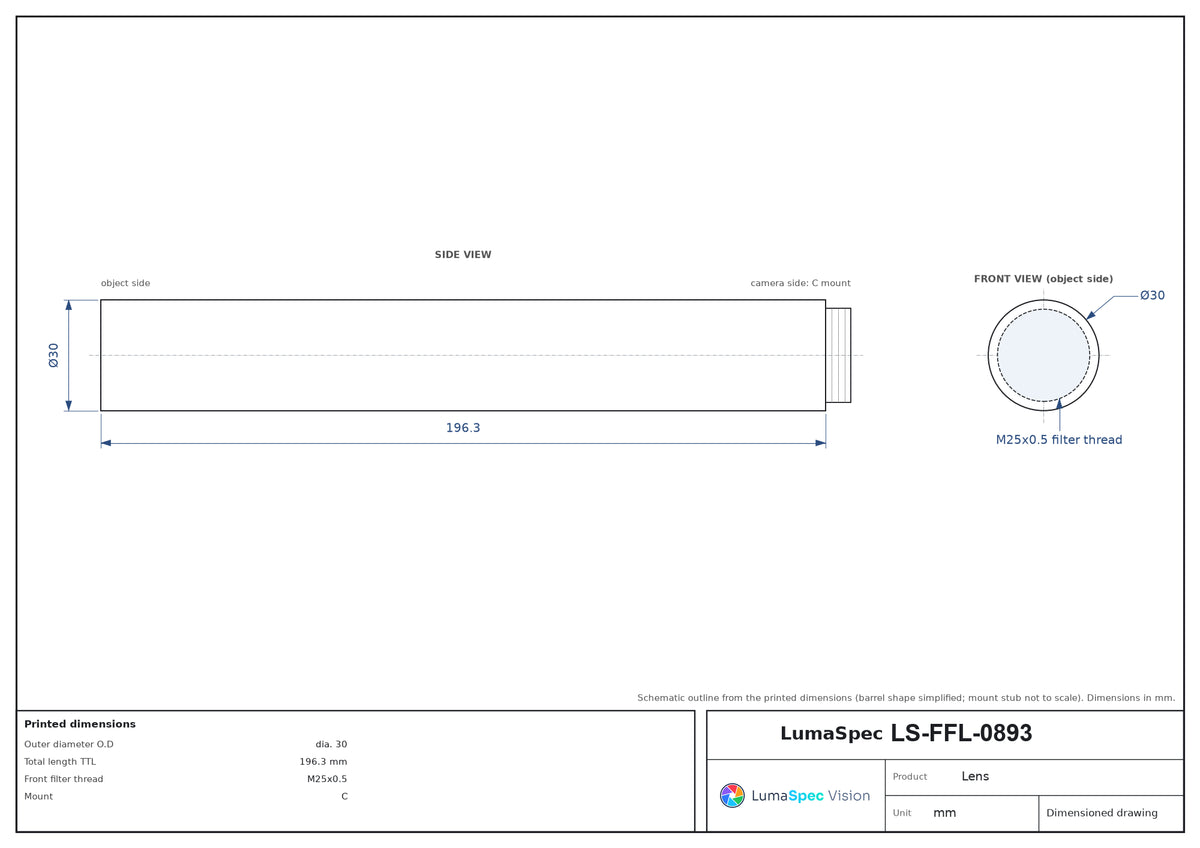

LS-FFL-0893 dimensions (mm)
  • LS-FFL-0893 dimensions (mm)
  • 4/3", C-mount machine vision lens, 0.75x, WD 168 mm, length 196.3 mm (LS-FFL-0893)

Main picture: this model's dimensioned drawing, from its printed dimensions. The photo shows representative lenses of this series, not this exact model; size and shape differ by model.

Machine vision lenses

4/3", C-mount machine vision lens, 0.75x, WD 168 mm, length 196.3 mm (LS-FFL-0893)

Model LS-FFL-0893

  • Magnification0.75x
  • MountC-mount
  • Sensor4/3"
  • Working distance168 mm
  • Aperture13.5
$309.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4/3", C-mount machine vision lens, 0.75x, WD 168 mm, length 196.3 mm (LS-FFL-0893)LS-FFL-0893

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-FFL-0893: sensor format 4/3", image-side F/# 13.5, working distance 168 mm, magnification 0.75x, image-side distortion ≤ 0.4 %.

4/3", C-mount Machine Vision Lens. At a glance: magnification 0.75x; working distance 168 mm; max sensor size 22.5 mm (4/3"); object-side resolution 12.1 µm; image-side f/# 13.5.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0893

Optics

Magnification (x)0.75
Working distance (mm)168
Image-side F/#13.5
Object-side telecentricity (deg max)Non-telecentric
Image-side distortion (% max)0.4
Numerical aperture NA0.02781
Object-side resolution (um)12.1
Theoretical depth of field (mm)1.9
Image-side MTF30 (lp/mm)50
Total length TTL (mm)196.3
Front filter threadM25x0.5

Sensor and imaging

Sensor format4/3"
Max sensor size (dia. mm)22.5

Mechanical

Outer diameter O.D (mm)dia. 30
MountC
Shipping weight (estimated)0.52 kg

Photo shows a representative model of this series; see the specifications for this model.

Engineering data

Field of view with the LS-FFL-0893

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 22.5 mmCovers sensors up to 4/3"
Magnification0.75×
Distortion≤ 0.4 %
Total length196.3 mm
SizeØ 30 mm
NA0.02781
Depth of field1.9 mmtheoretical
Filter threadM25 × 0.5
MTF50 lp/mmimage side, at 30 % contrast
Field of view (width × height) by sensor format
Sensor format0.75×
1/1.2"11.25 × 7.03 mm15 × 9.4 mm
1"13.2 × 8.8 mm17.6 × 11.7 mm
1.1"14.13 × 10.35 mm18.8 × 13.8 mm
4/3"17.3 × 13 mm23.1 × 17.3 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Cameras this lens fits

7.1 mm sensor diagonal; this lens covers up to 22.5 mm

17.2 mm sensor diagonal; this lens covers up to 22.5 mm

9.5 mm sensor diagonal; this lens covers up to 22.5 mm

3.2 mm sensor diagonal; this lens covers up to 22.5 mm

6.6 mm sensor diagonal; this lens covers up to 22.5 mm

With a 5 mm C-CS ring

15.8 mm sensor diagonal; this lens covers up to 22.5 mm

Adapters

For CS-mount cameras
