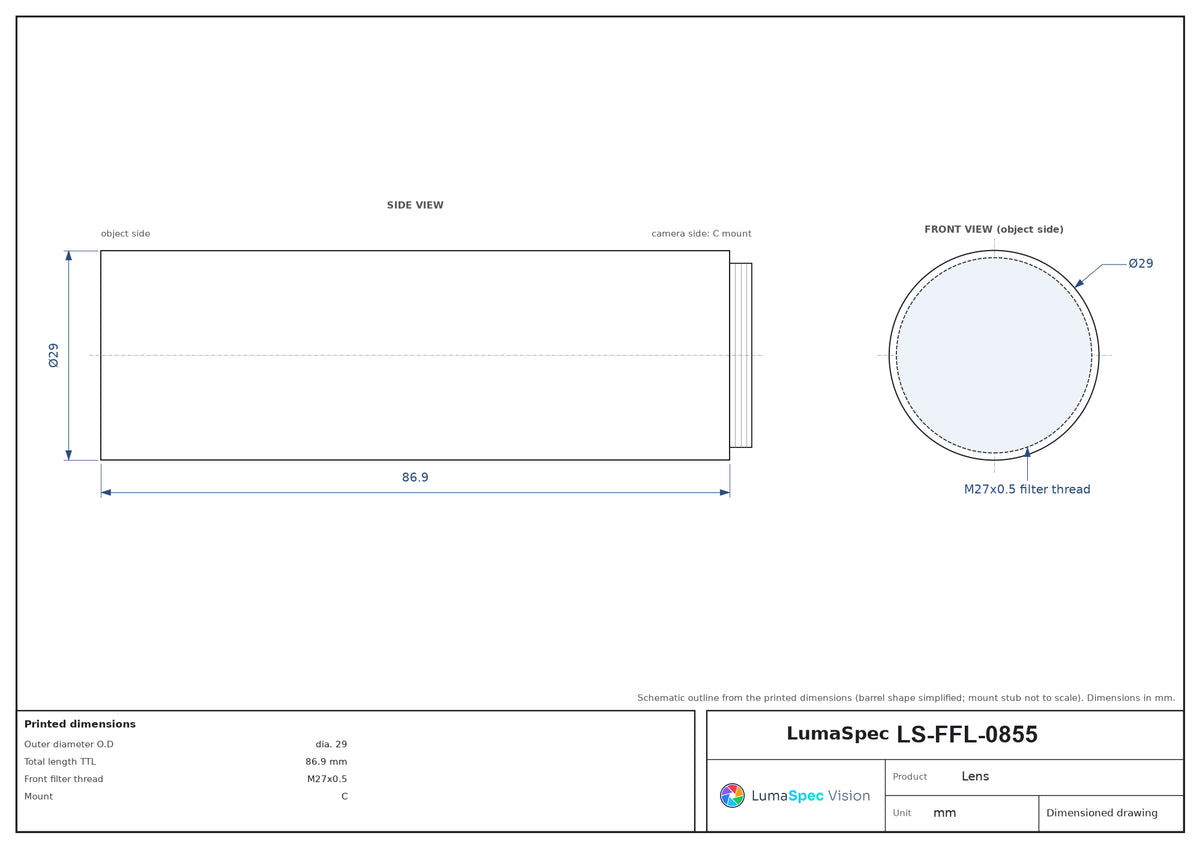

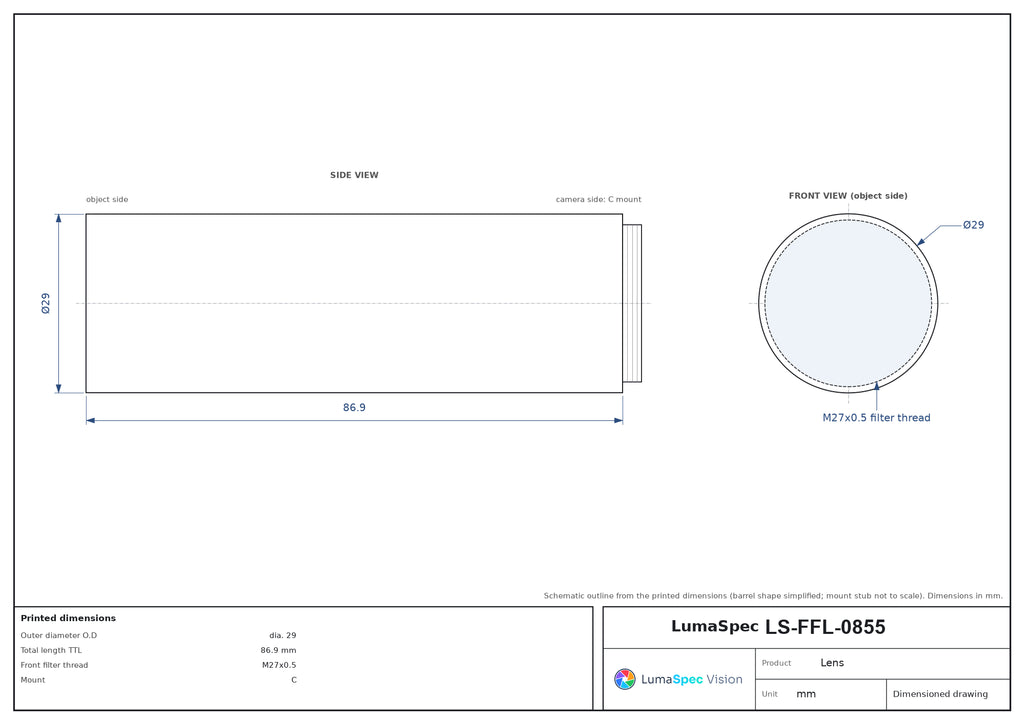

LS-FFL-0855 dimensions (mm)
  • LS-FFL-0855 dimensions (mm)
  • 1/2.5", C-mount machine vision lens, 0.4x, WD 113 mm (LS-FFL-0855)

Main picture: this model's dimensioned drawing, from its printed dimensions. The photo shows representative lenses of this series, not this exact model; size and shape differ by model.

Machine vision lenses

1/2.5", C-mount machine vision lens, 0.4x, WD 113 mm (LS-FFL-0855)

Model LS-FFL-0855

  • Magnification0.4x
  • MountC-mount
  • Sensor1/2.5"
  • Working distance113 mm
  • Aperture13.4
$189.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1/2.5", C-mount machine vision lens, 0.4x, WD 113 mm (LS-FFL-0855)LS-FFL-0855

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-FFL-0855: sensor format 1/2.5", image-side F/# 13.4, working distance 113 mm, magnification 0.4x.

1/2.5", C-mount Machine Vision Lens. At a glance: magnification 0.4x; working distance 113 mm; max sensor size 7.2 mm (1/2.5"); object-side resolution 22.3 µm; image-side f/# 13.4.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0855

Optics

Magnification (x)0.4
Working distance (mm)113
Image-side F/#13.4
Object-side telecentricity (deg max)Non-telecentric
Image-side distortion (% max)0.25
Numerical aperture NA0.01503
Object-side resolution (um)22.3
Theoretical depth of field (mm)6.7
Image-side MTF30 (lp/mm)70
Total length TTL (mm)86.9
Front filter threadM27x0.5
Measured depth of field as shipped (mm)3

Sensor and imaging

Sensor format1/2.5"
Max sensor size (dia. mm)7.2

Mechanical

Outer diameter O.D (mm)dia. 29
MountC
Shipping weight (estimated)0.31 kg

Photo shows a representative model of this series; see the specifications for this model.

Engineering data

Field of view with the LS-FFL-0855

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 7.2 mmCovers sensors up to 1/2.5"
Magnification0.4×
Distortion≤ 0.25 %
Total length86.9 mm
SizeØ 29 mm
NA0.01503
Depth of field6.7 mmtheoretical
Filter threadM27 × 0.5
MTF70 lp/mmimage side, at 30 % contrast
Field of view (width × height) by sensor format
Sensor format0.4×
1/3"4.8 × 3.6 mm12 × 9 mm
1/2.9"4.98 × 3.74 mm12.5 × 9.3 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Cameras this lens fits

7.1 mm sensor diagonal; this lens covers up to 7.2 mm

3.2 mm sensor diagonal; this lens covers up to 7.2 mm

6.6 mm sensor diagonal; this lens covers up to 7.2 mm

6.4 mm sensor diagonal; this lens covers up to 7.2 mm

7.1 mm sensor diagonal; this lens covers up to 7.2 mm

7.1 mm sensor diagonal; this lens covers up to 7.2 mm

Adapters

For CS-mount cameras
