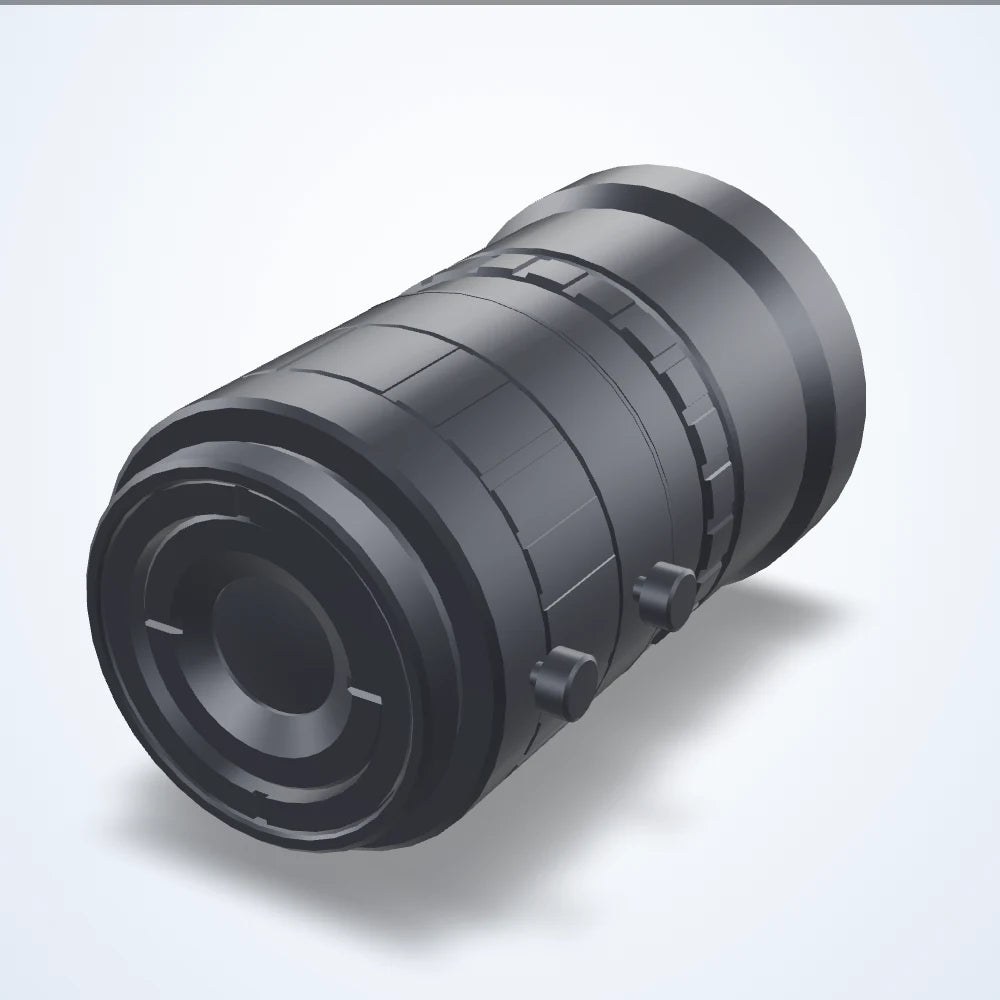

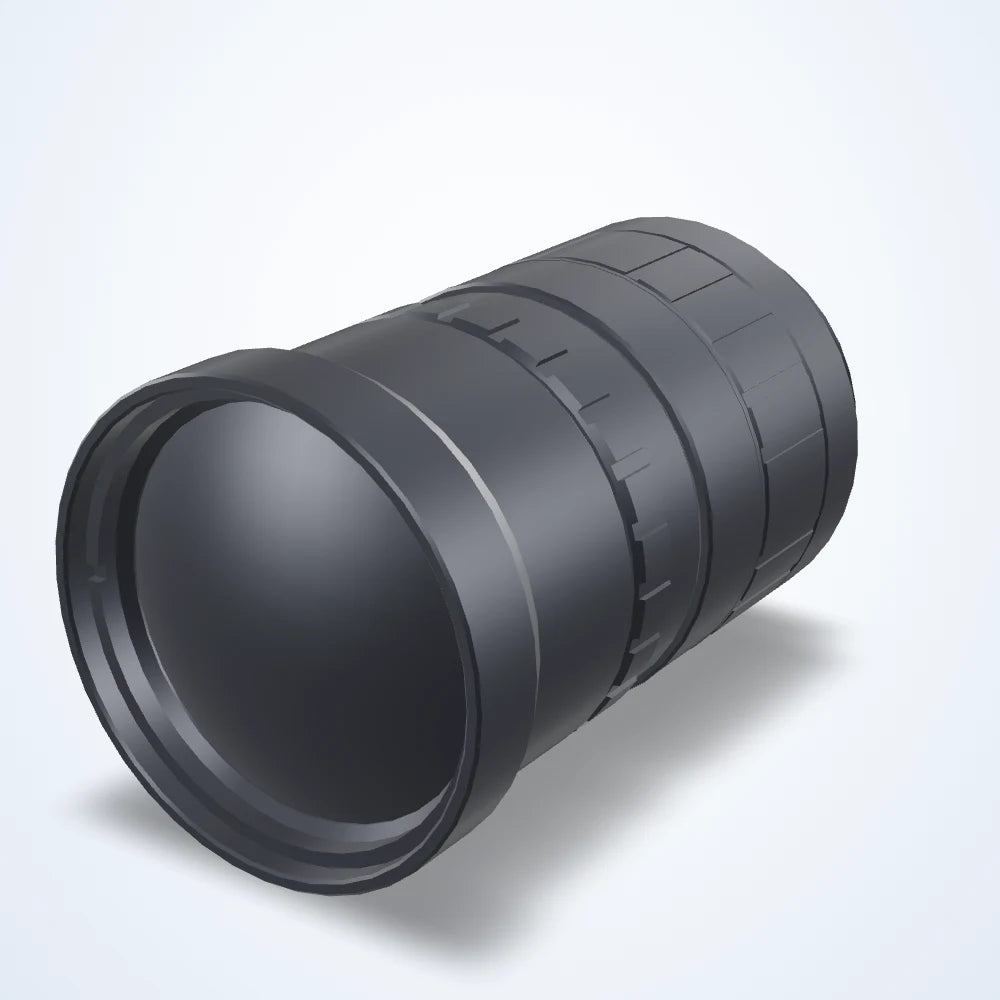

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
75 mm lens, 2/3", C-mount, front diameter 31 mm (LS-FFL-0120)
Model LS-FFL-0120
- Focal length75 mm
- MountC-mount
- Sensor2/3"
- Aperturef/2.8
- Resolution1.5
$219.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0120 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 6.7° x 5.0° |
| Chief ray angle | 11.57° |
| Distance between principle points | 43.29 mm |
| Entrance pupil position | 35.48 mm |
| Exit pupil position | -26.71 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -100.77 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | -57.48 mm |
| Spectrum | Visible |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture (max) | f/2.8 |
| Back focal length | 15.75 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | 0.36 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|

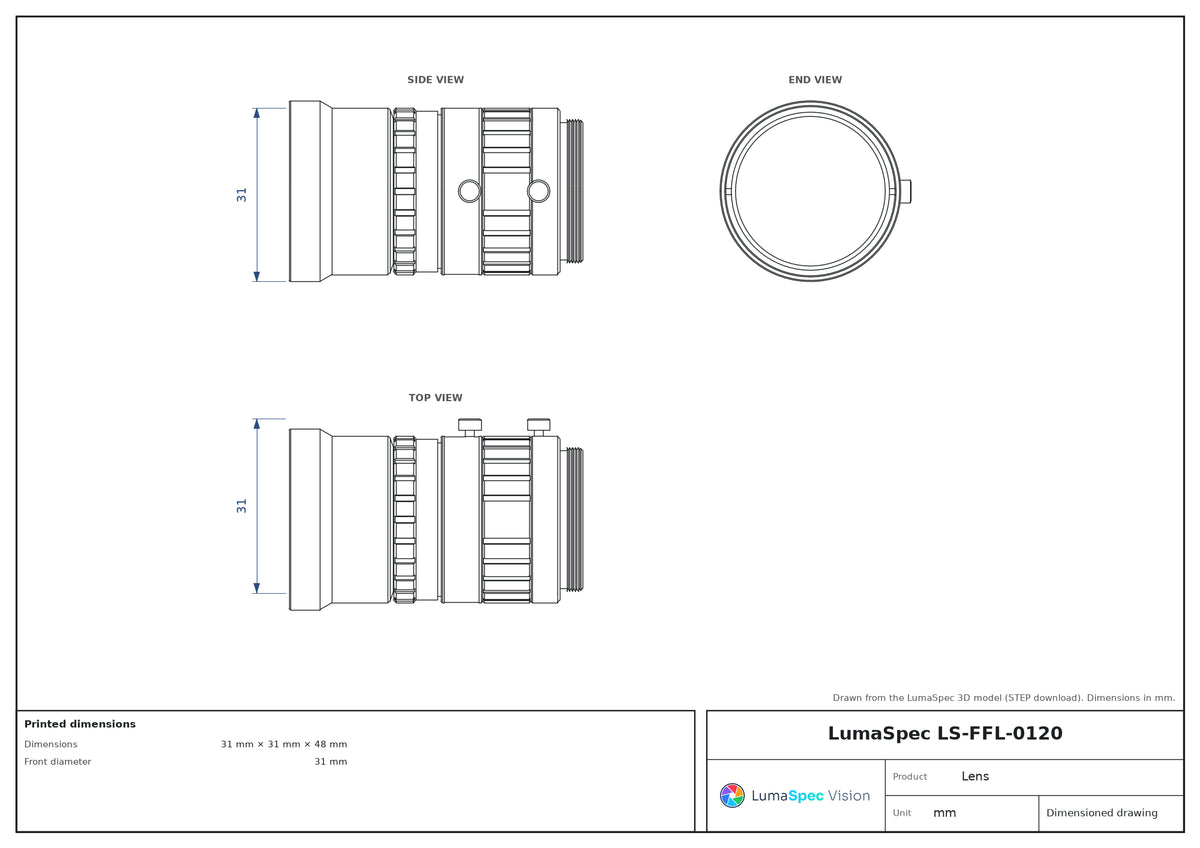

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 31 mm × 31 mm × 48 mm |
| Front diameter | 31 mm |
| Weight | 50 Grams |
