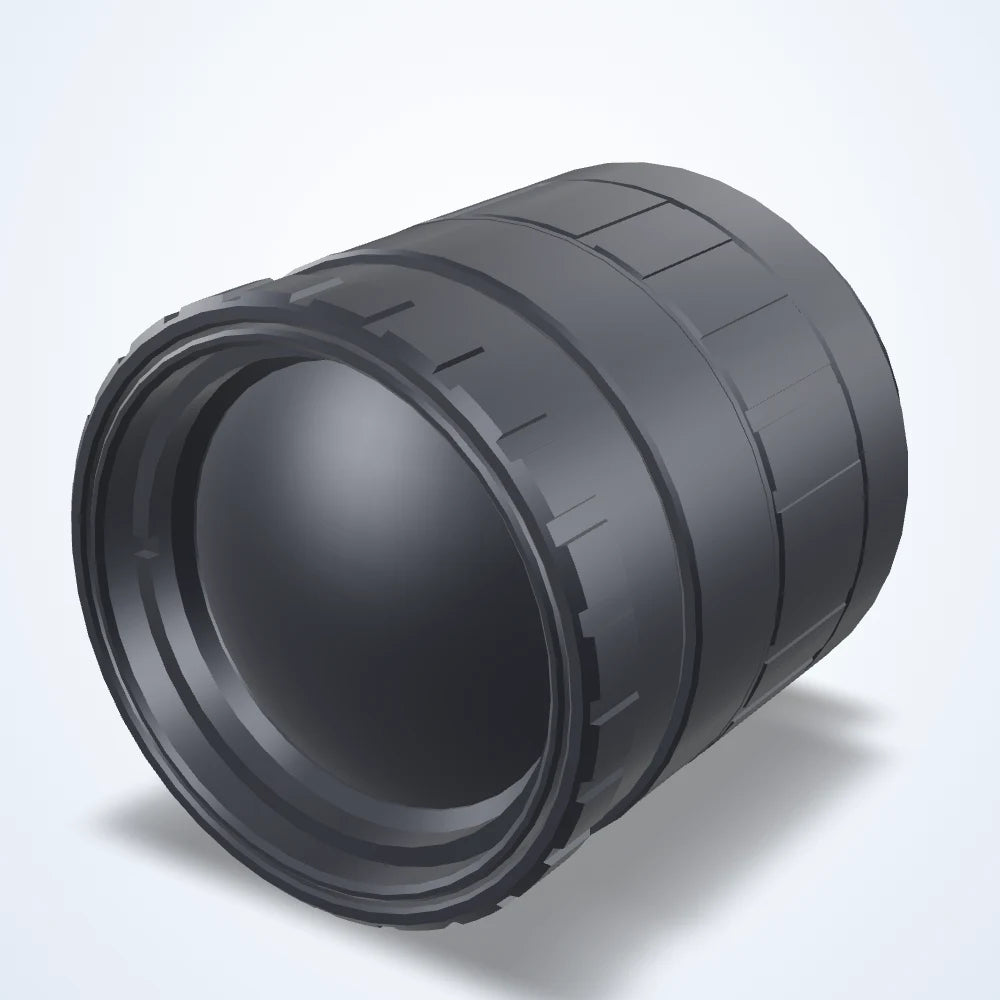

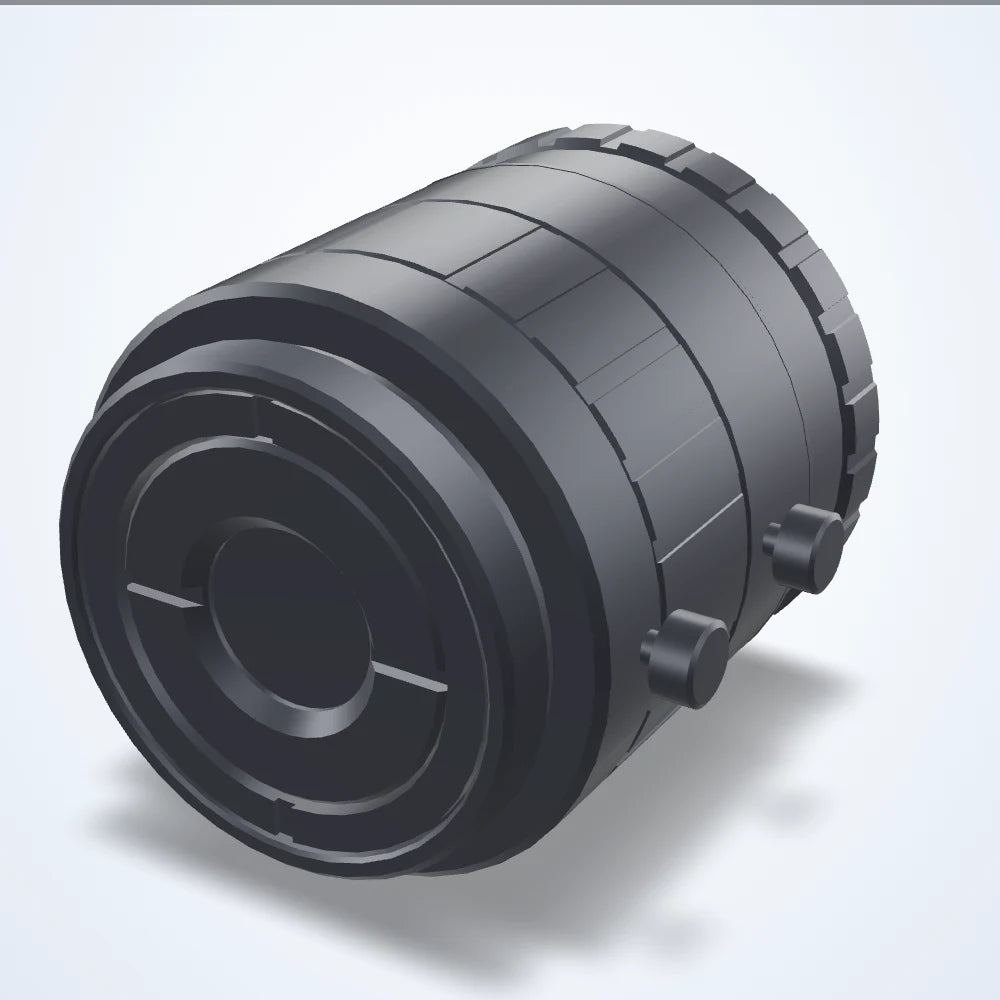

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-mount, front diameter 29 mm (LS-FFL-0116)
Model LS-FFL-0116
- Focal length50 mm
- MountC-mount
- Sensor2/3"
- Aperturef/2.3
- Resolution1.5
$219.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 500 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0116 |
|---|---|
| Minimum object distance | 500 mm |
| Angle of view @ 2/3″ | 10.1° x 7.6° |
| Chief ray angle | 12.25° |
| Distance between principle points | 10.59 mm |
| Entrance pupil position | 6.05 mm |
| Exit pupil position | -25.15 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -42.63 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | -35.04 mm |
| Spectrum | Visible |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (max) | f/2.3 |
| Back focal length | 15.24 mm |
| Filter thread | M25.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | 0.06 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

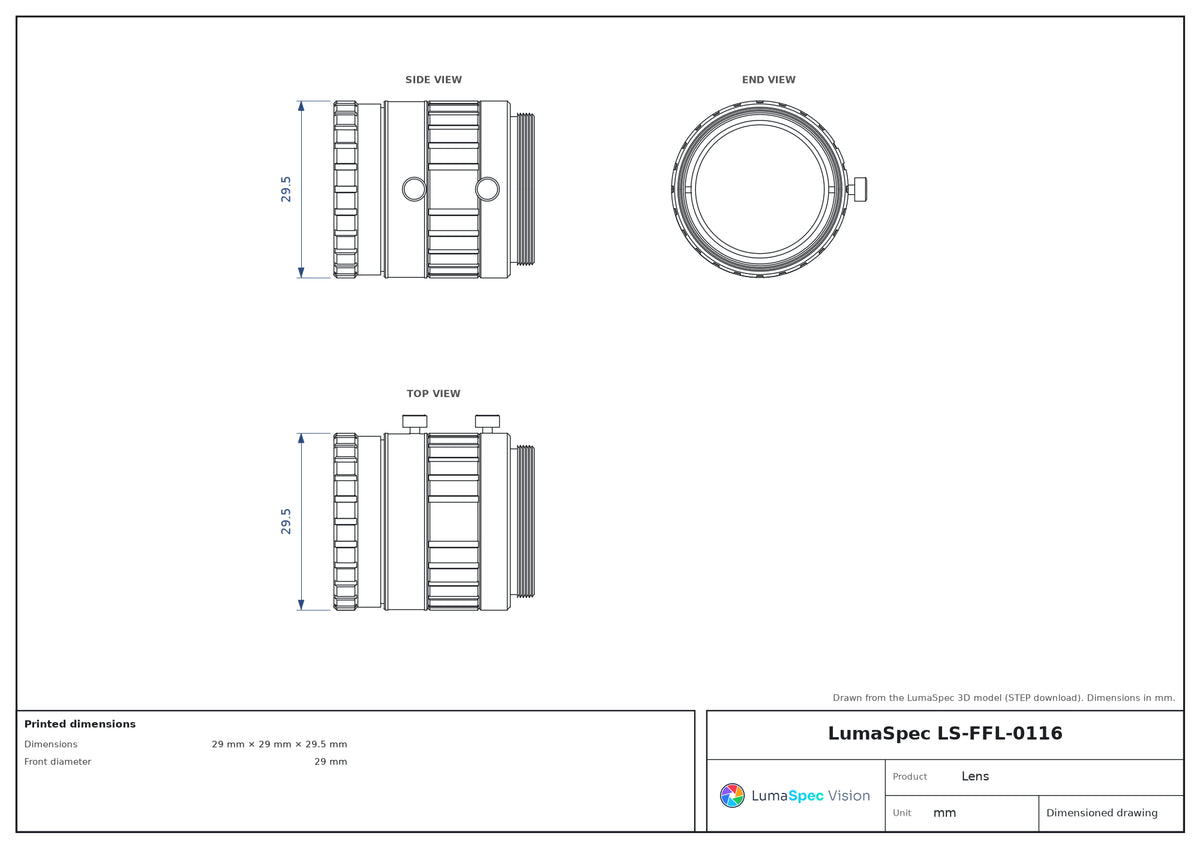

| Dimensions | 29 mm × 29 mm × 29.5 mm |
| Front diameter | 29 mm |
| Weight | 40 Grams |
