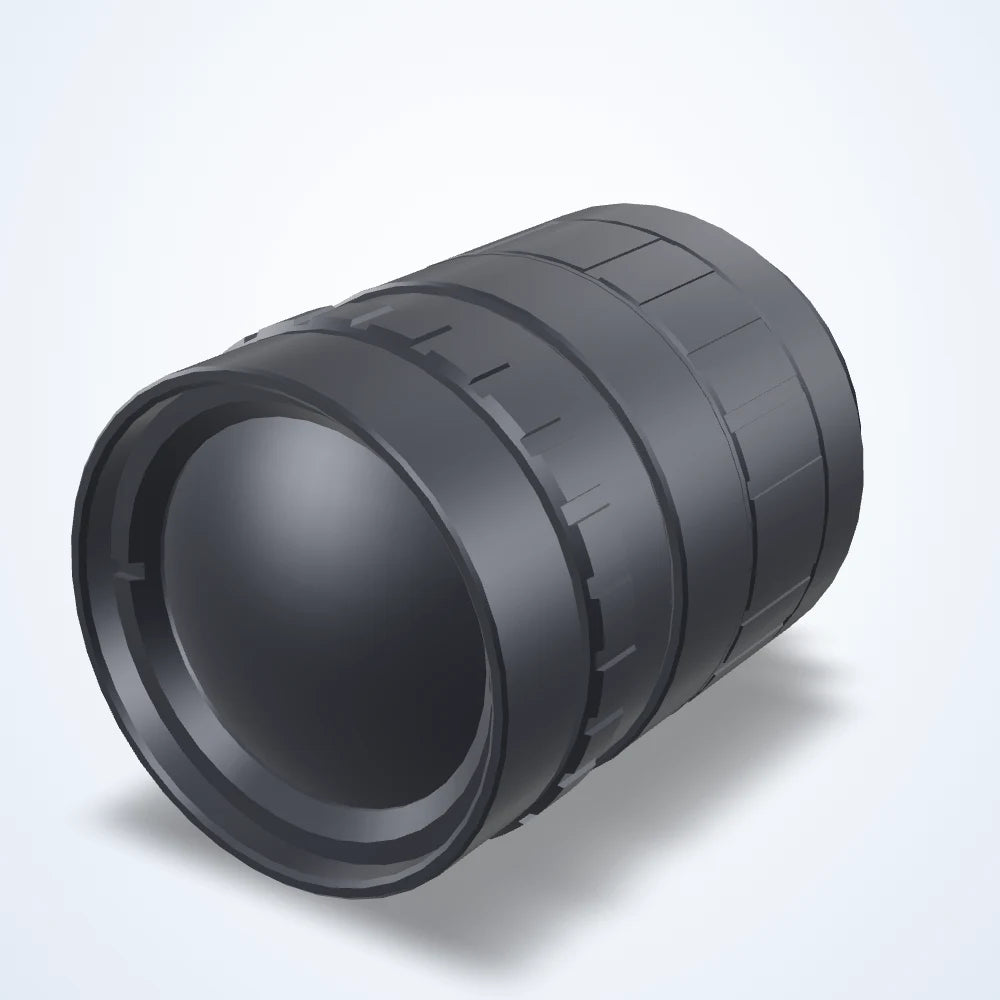

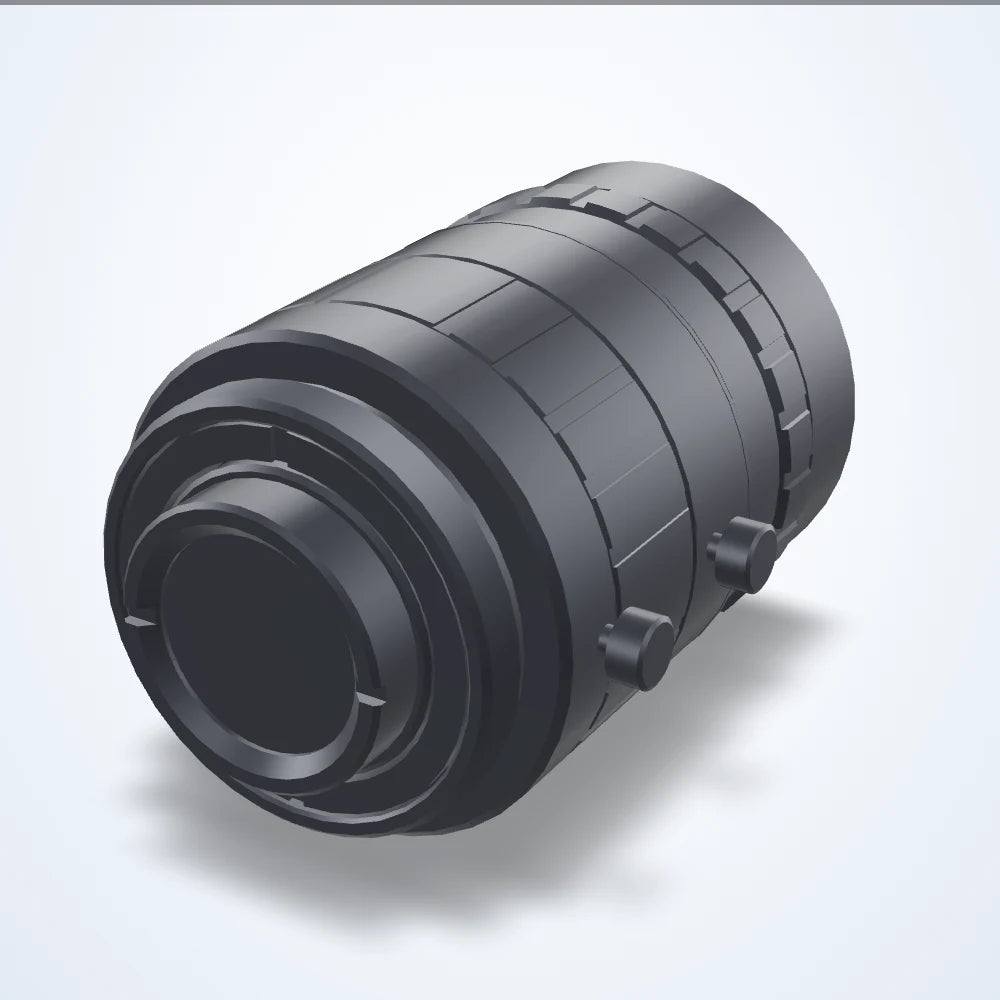

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 1/2", C-mount, M27-0.5 thread (LS-FFL-0093)
Model LS-FFL-0093
- Focal length6 mm
- MountC-mount
- Sensor1/2"
- Aperturef/1.2
- Resolution1.5
$199.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0093 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 57.3° x 43.8° |
| Chief ray angle | 3.97° |
| Distance between principle points | 27.83 mm |
| Entrance pupil position | -21.24 mm |
| Exit pupil position | -49.19 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -16.45 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | 11.38 mm |
| Spectrum | Visible |
Optics
| Focal length | 6 mm |
|---|---|
| Aperture (max) | f/1.2 |
| Back focal length | 11.44 mm |
| Filter thread | M27-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | -1.84 |
Sensor and imaging
| Sensor format | 1/2" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

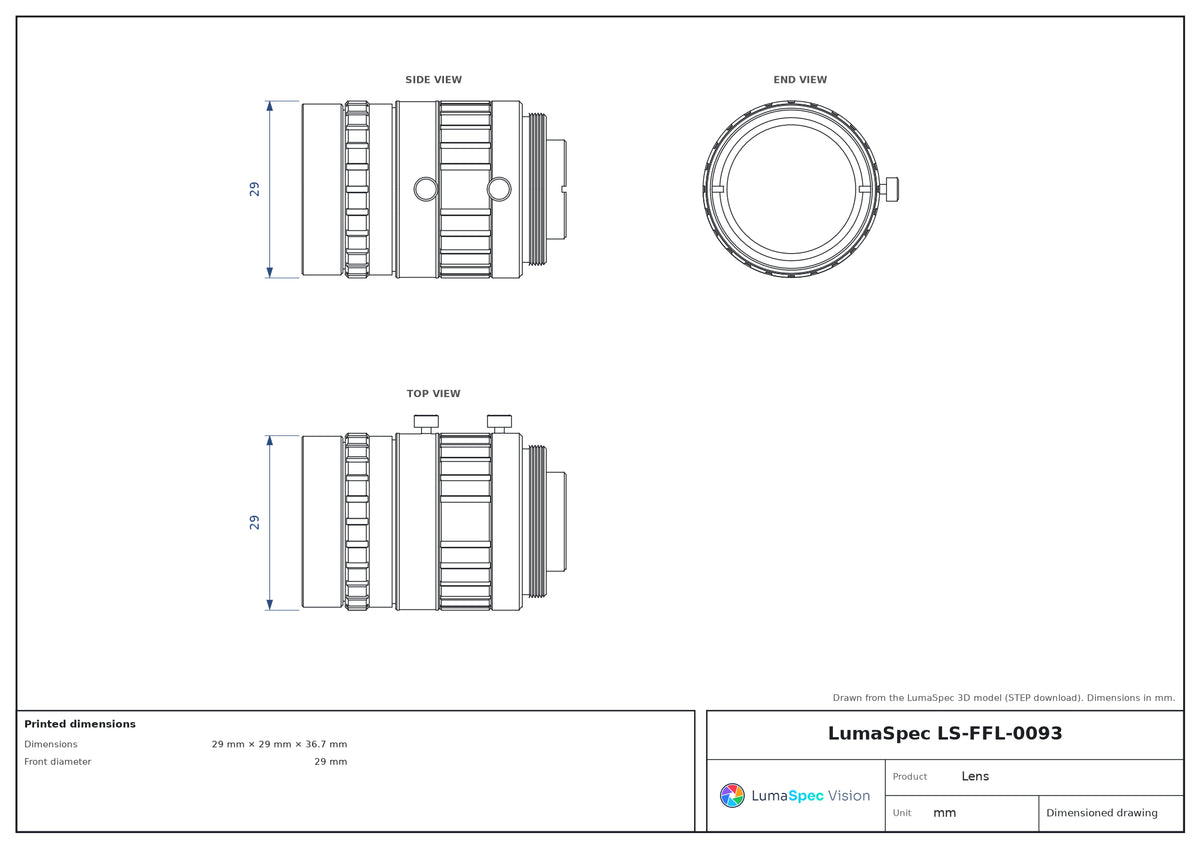

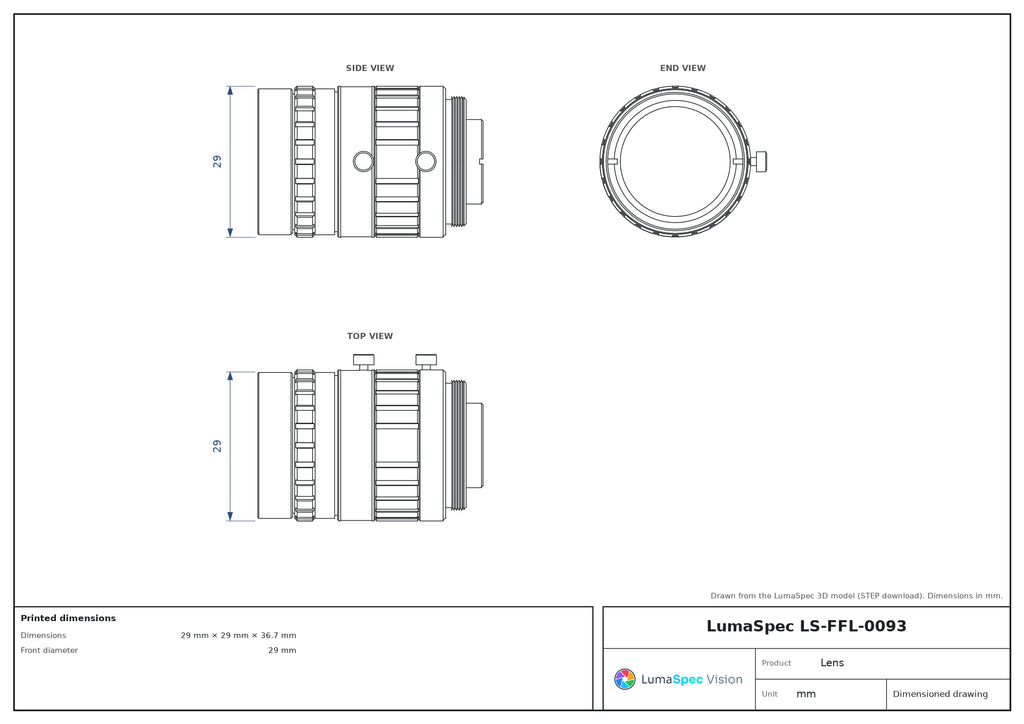

| Dimensions | 29 mm × 29 mm × 36.7 mm |
| Front diameter | 29 mm |
| Weight | 50 Grams |
