Machine vision lenses
12.5 mm lens, 2/3", C-mount, M25.5-0.5 thread, back focus 15.09 mm (LS-FFL-0097)
Model LS-FFL-0097
- Focal length12.5 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.4
- Resolution1.5
$159.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0097 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 39.2° x 29.4° |
| Chief ray angle | 9.5° |
| Distance between principle points | 7.49 mm |
| Entrance pupil position | -9.86 mm |
| Exit pupil position | -31.33 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -2.85 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | 4.65 mm |
| Spectrum | Visible |
Optics
| Focal length | 12.5 mm |
|---|---|
| Aperture (max) | f/1.4 |
| Back focal length | 15.09 mm |
| Filter thread | M25.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | -1.95 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

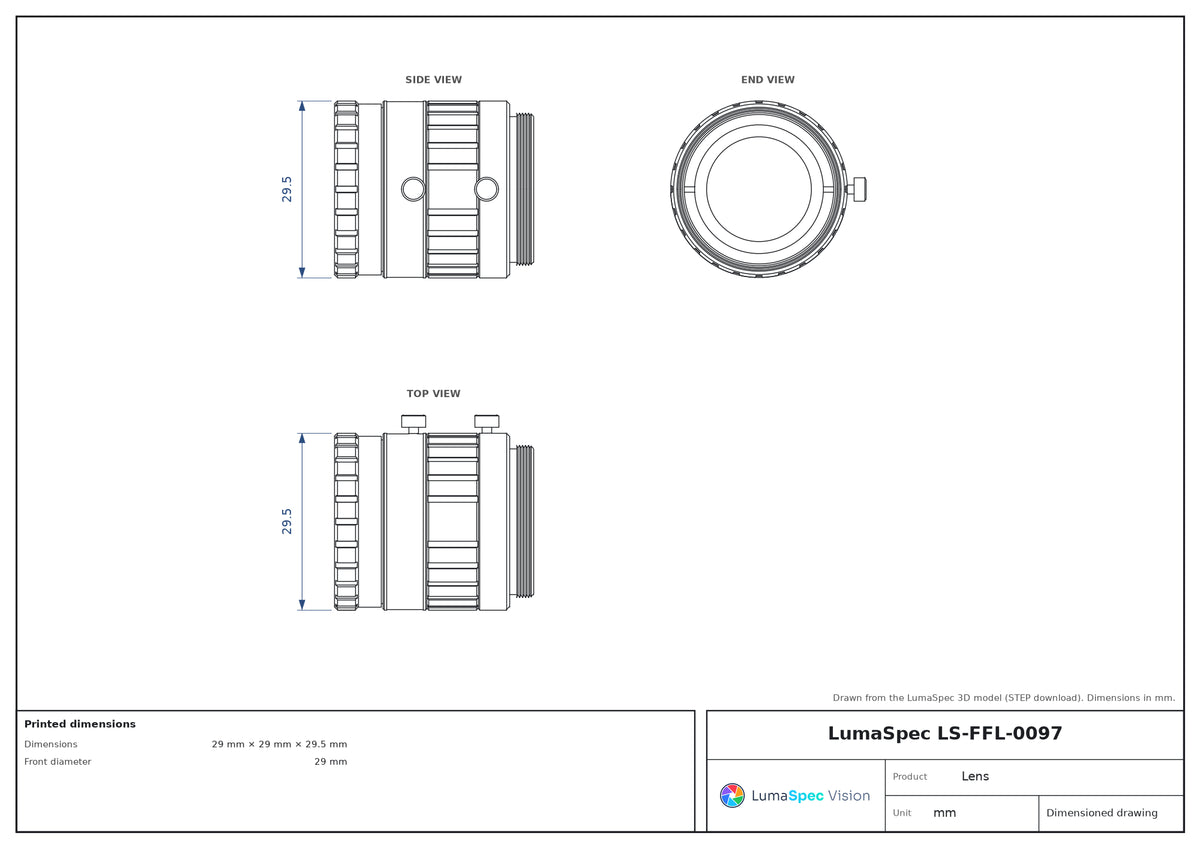

| Dimensions | 29 mm × 29 mm × 29.5 mm |
| Front diameter | 29 mm |
| Weight | 40 Grams |
