Rendered illustration: the actual product may differ in appearance.
Machine vision lenses

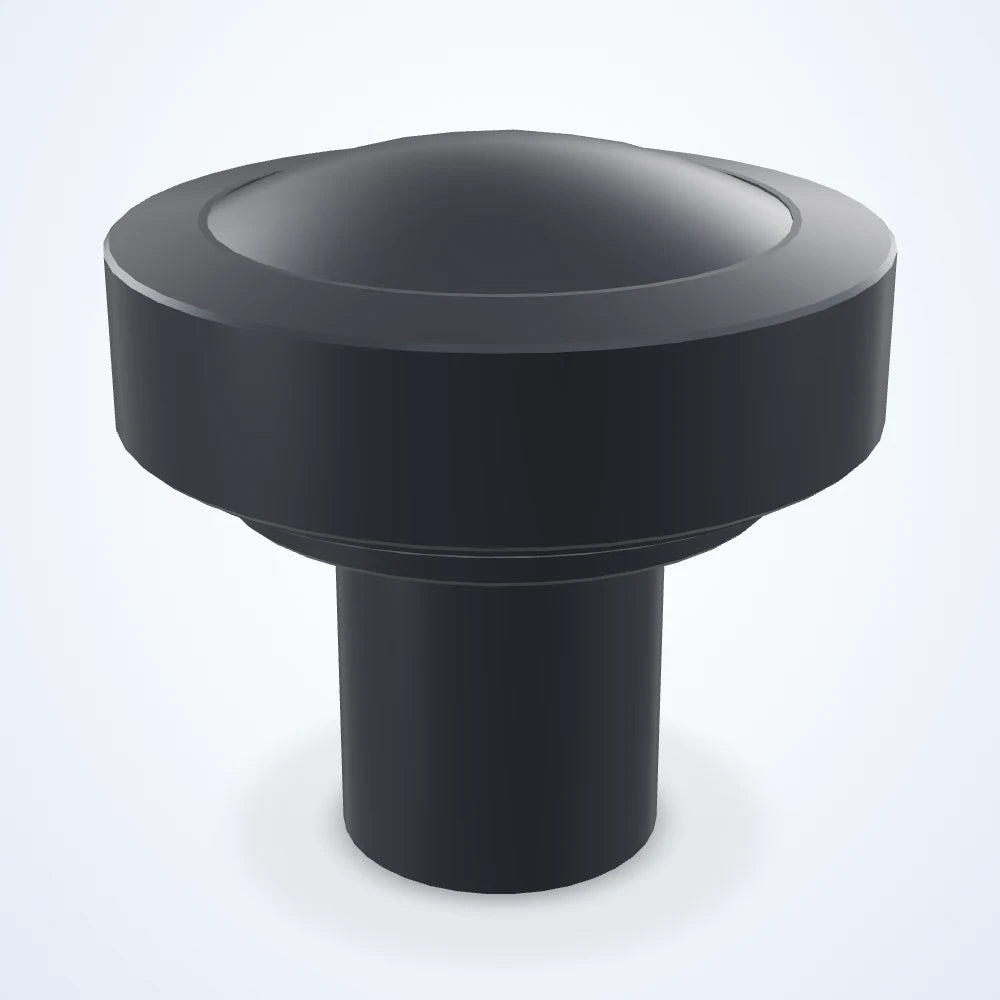

1.05 mm lens, 1/2.5", M12-0.5-mount (LS-FFL-0015)
Model LS-FFL-0015
- Focal length1.05 mm
- MountM12
- Sensor1/2.5"
- Resolution5
$79.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0015 |
|---|---|
| Aov @ 1/1.7″ h°×v°×d° | 180.0° |
| Aov @ 1/3″ h°×v°×d° | 180.0 × 163.2° |
| Aov @ 1/4″ h°×v°×d° | 163.2 × 130.2 × 180.0° |
| Lens type | Fisheye |
| Spectrum | Visible |
| Working ƒ/n | f/2.8 |
| Zoom range | Fixed |
Optics
| Focal length | 1.05 mm |
|---|---|
| Back focal length | 3.62 mm |
| Filter thread | No Filter Threads |
| Focus range | 0.05 m - ∞ |
| Image circle | 4.1 mm |
Sensor and imaging
| Sensor format | 1/2.5" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| IP rating | IP66 |
|---|

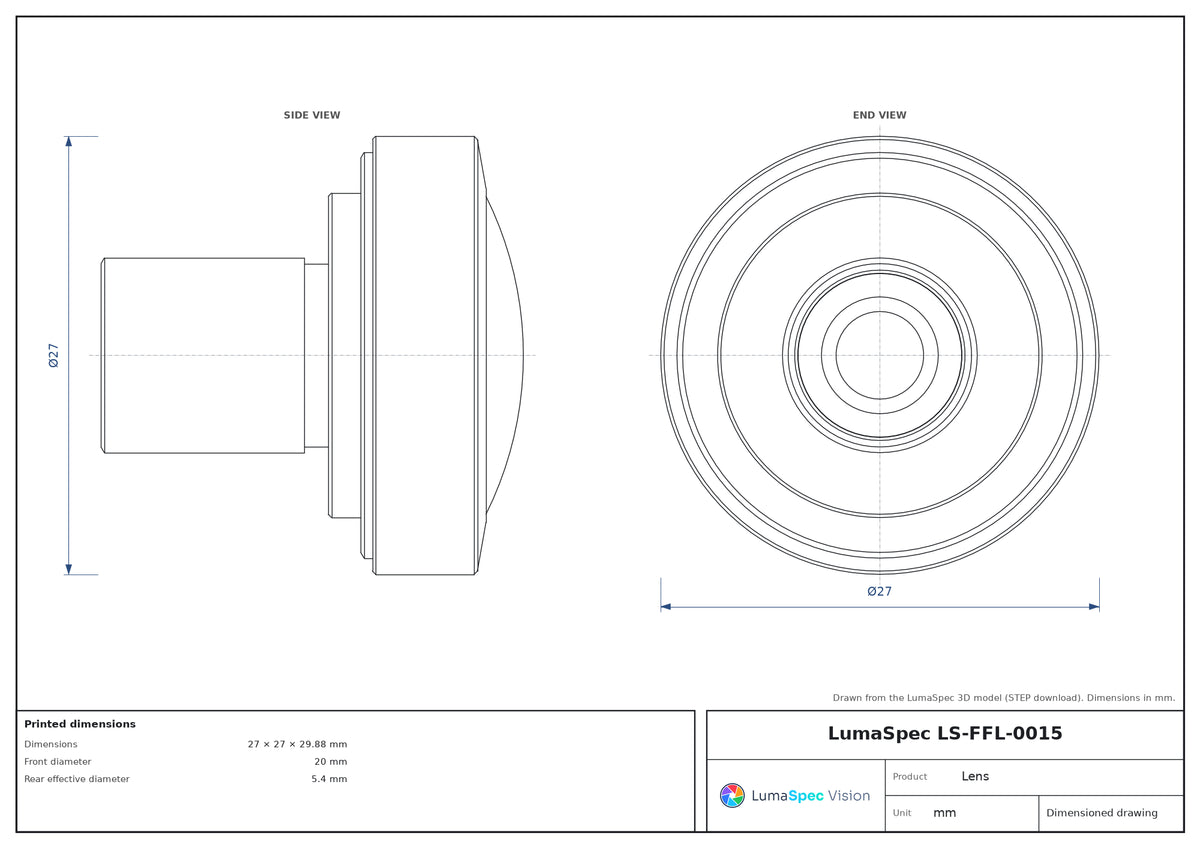

Mechanical
| Mount | M12-0.5 |
|---|---|
| Dimensions | 27 × 27 × 29.88 mm |
| Front diameter | 20 mm |
| Rear effective diameter | 5.4 mm |
| Weight | 17.3 |
Other models in the Lens series, M12-0.5 series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0014 | 1.65 mm | $99.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0013 | 1.2 mm | $119.00 Quote | Lead time confirmed with your quote | View |
