1.65 mm lens, 1/1.7", M12-0.5-mount (LS-FFL-0014)

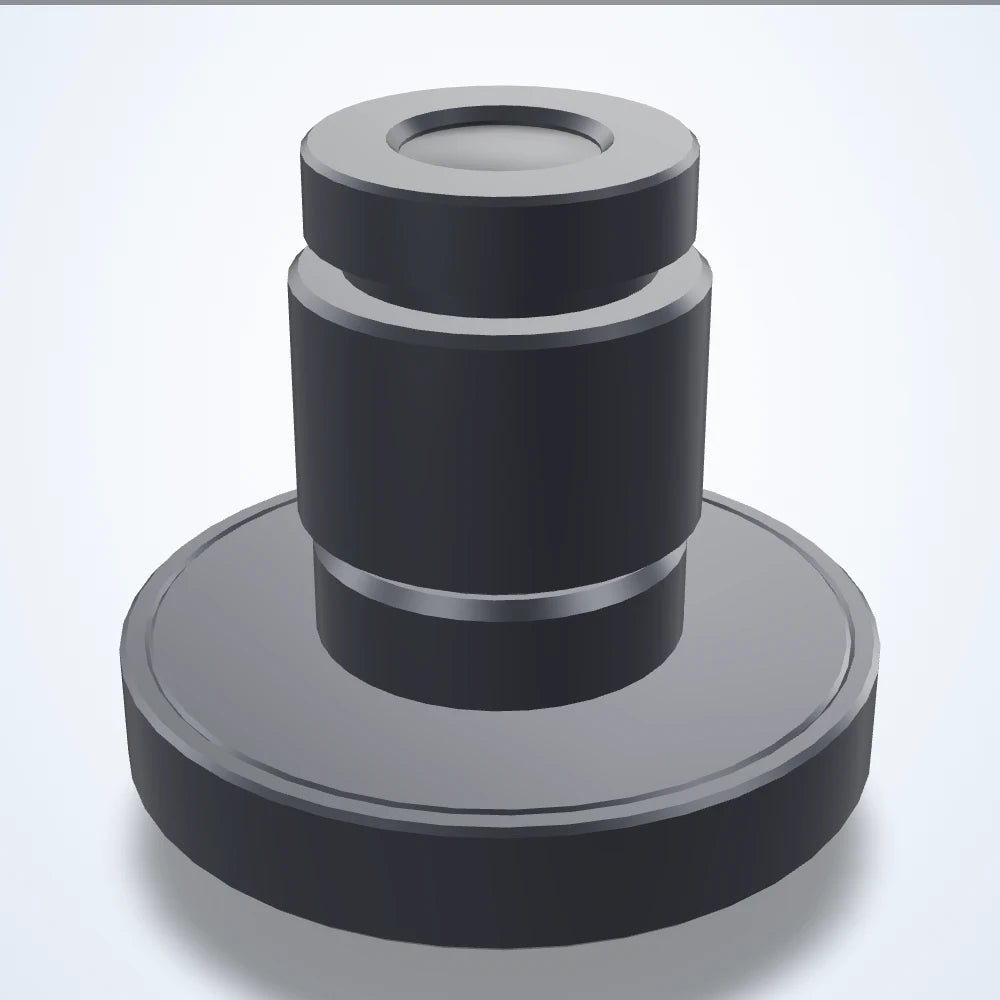

  • 1.65 mm lens, 1/1.7", M12-0.5-mount (LS-FFL-0014)

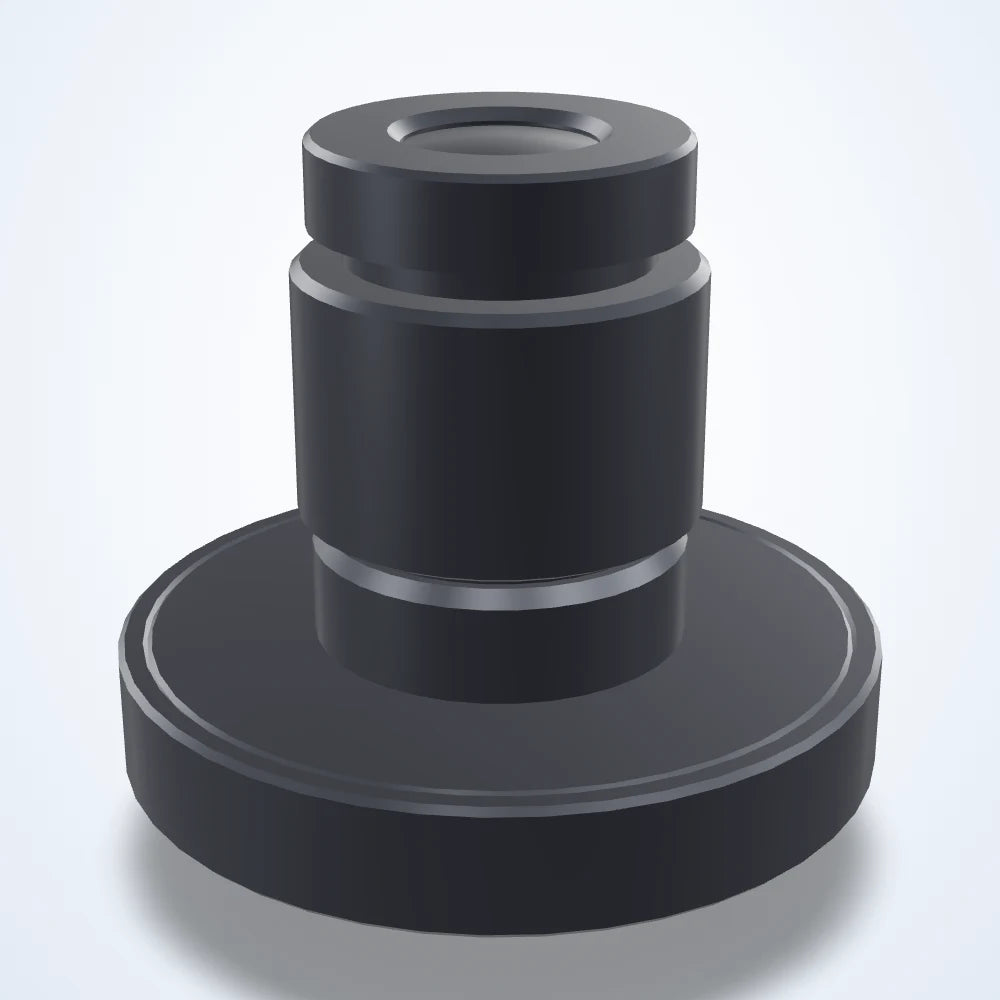

  • 1.65 mm lens, 1/1.7", M12-0.5-mount (LS-FFL-0014) - view 2

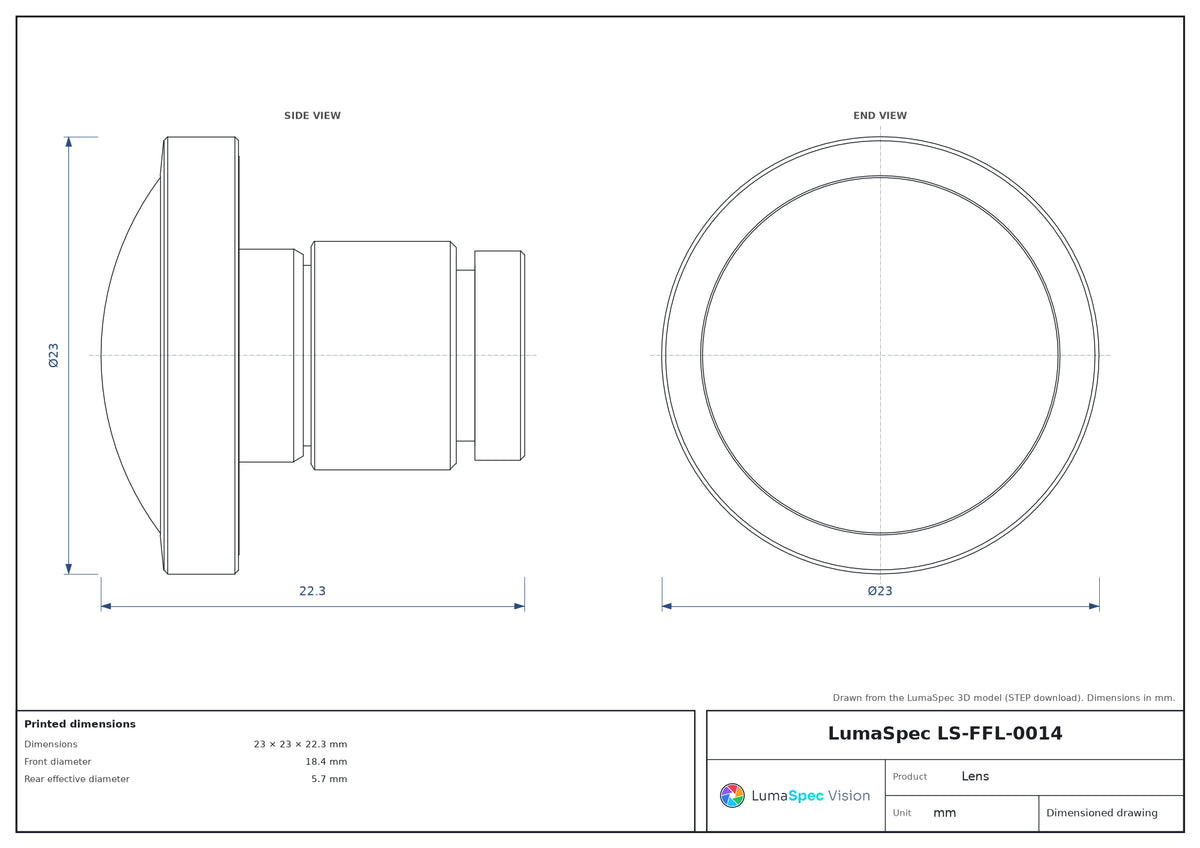

  • LS-FFL-0014 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

1.65 mm lens, 1/1.7", M12-0.5-mount (LS-FFL-0014)

Model LS-FFL-0014

  • Focal length1.65 mm
  • MountM12
  • Sensor1/1.7"
  • Resolution12
$99.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

1.65 mm lens, 1/1.7", M12-0.5-mount (LS-FFL-0014)LS-FFL-0014

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0014
Aov @ 1/1.7″ h°×v°×d°190.0°
Aov @ 1/3″ h°×v°×d°168.2 × 111.6°
Aov @ 1/4″ h°×v°×d°125.5 × 94.2 × 157.3°
Lens typeFisheye
SpectrumVisible + NIR
Working ƒ/nf/2.8
Zoom rangeFixed

Optics

Focal length1.65 mm
Back focal length4.58 mm
Filter threadNo Filter Threads
Focus rangeFixed
Image circle5.38 mm

Sensor and imaging

Sensor format1/1.7"
Resolution (MP)12

Environment and compliance

Operating temperature range-20 to +60 °C

Mechanical

MountM12-0.5
Dimensions23 × 23 × 22.3 mm
Front diameter18.4 mm
Rear effective diameter5.7 mm
Weight10.8

LS-FFL-0014

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-FFL-0014 — Lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Focal length
1.65 mm
Sensor format
1/1.7"
Mount
M12-0.5

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Lens series, M12-0.5 series

See all 3 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0015 1.05 mm $79.00 Quote Lead time confirmed with your quote View
LS-FFL-0013 1.2 mm $119.00 Quote Lead time confirmed with your quote View
