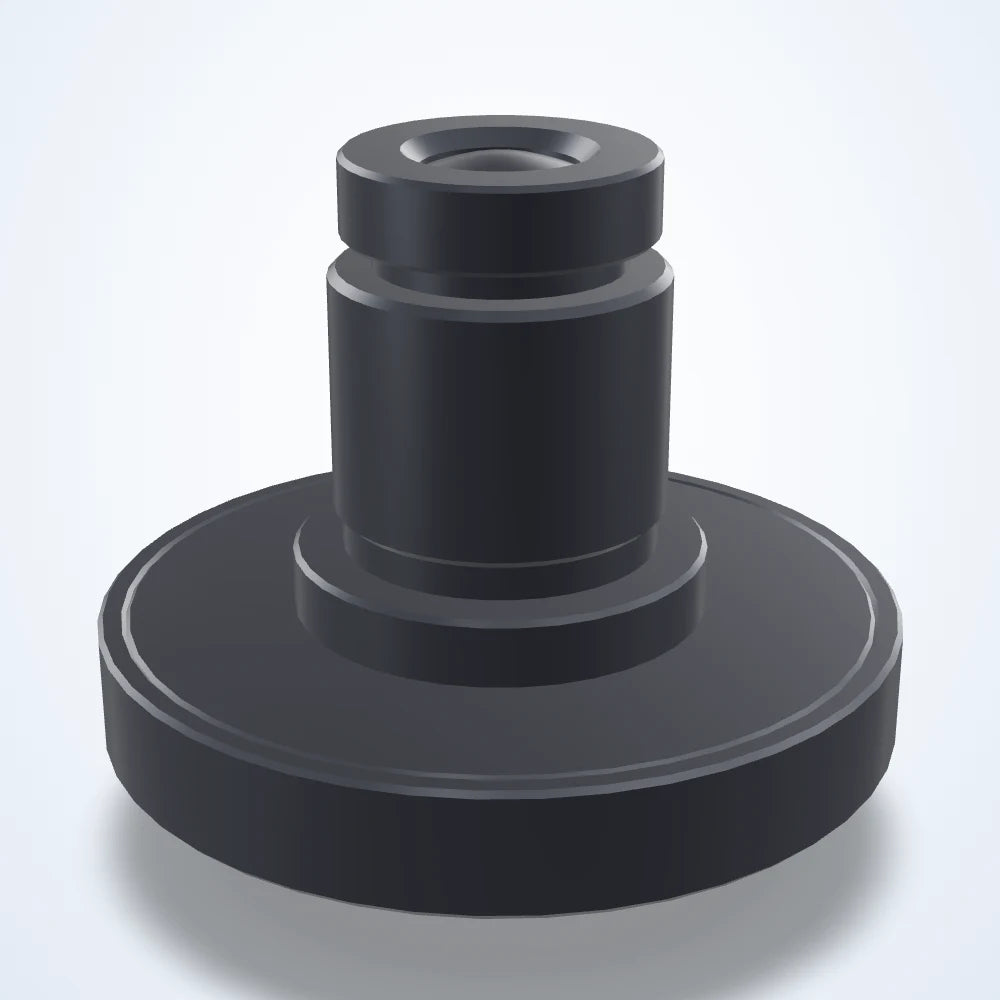

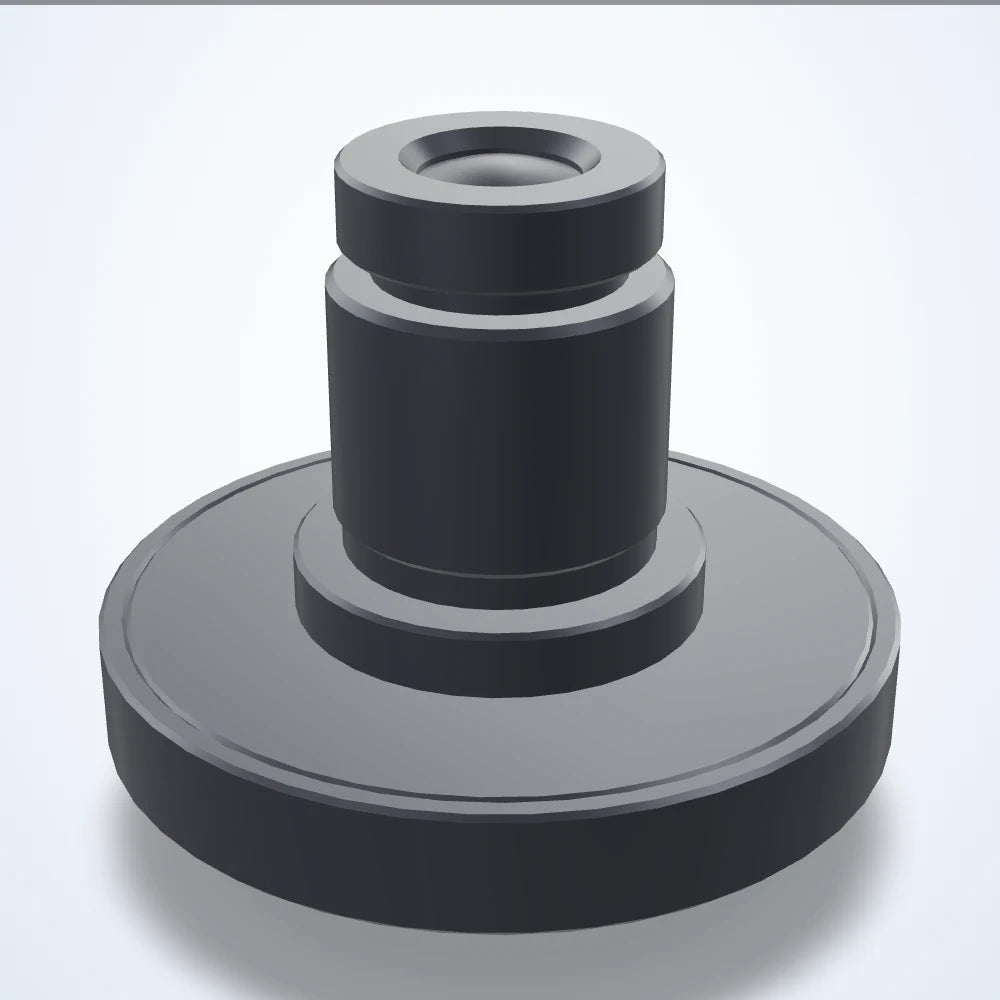

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
1.2 mm lens, 1/1.7", M12-0.5-mount (LS-FFL-0013)
Model LS-FFL-0013
- Focal length1.2 mm
- MountM12
- Sensor1/1.7"
- Resolution12
$119.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0013 |
|---|---|
| Aov @ 1/1.7″ h°×v°×d° | 185.0° |
| Aov @ 1/3″ h°×v°×d° | 171.5 × 139.5° |
| Aov @ 1/4″ h°×v°×d° | 139.5 × 110.3 × 164.2° |
| Lens type | Fisheye |
| Spectrum | Visible + NIR |
| Working ƒ/n | f/2.2 |
| Zoom range | Fixed |
Optics
| Focal length | 1.2 mm |
|---|---|
| Back focal length | 4.2 mm |
| Filter thread | No Filter Threads |
| Focus range | Fixed |
| Image circle | 5.38 mm |
Sensor and imaging
| Sensor format | 1/1.7" |
|---|---|
| Resolution (MP) | 12 |
Environment and compliance
| Operating temperature range | -20 to +60 °C |
|---|
Mechanical
| Mount | M12-0.5 |
|---|---|

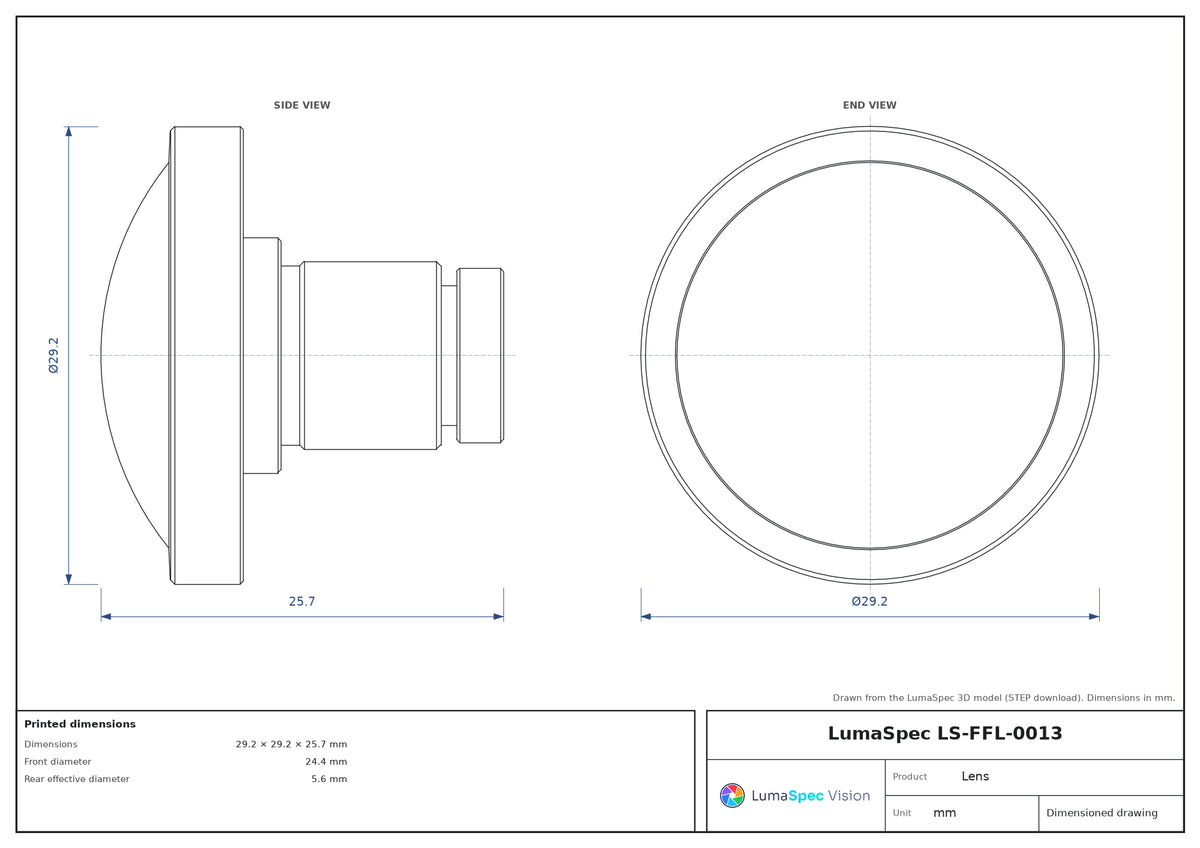

| Dimensions | 29.2 × 29.2 × 25.7 mm |
| Front diameter | 24.4 mm |
| Rear effective diameter | 5.6 mm |
| Weight | 16.3 |
