Dome lights
260 mm dia. spherical integral light (LS-DOM-0135)
Model LS-DOM-0135-R
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Outer diameter260 mm
- Height117 mm
- Largest height of the 10 models in its series: 117 mm
$1,249.00
Ships in 2-3 weeks
2.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-DOM-0135: outer diameter 260 mm, inner diameter / viewing window 48 mm, height 117 mm, power red 2.9 W.
Uses a specially designed diffuser plate for highly uniform diffused illumination, eliminating interference caused by surface unevenness.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DOM-0135 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 2.9 |
| Power white/blue/green (W) | 5.8 |
Mechanical
| Outer diameter (mm) | 260 |
|---|---|
| Inner diameter / viewing window (mm) | 48 |
| Height (mm) | 117 |
| Mounting | 6 x dia. 3.5 through holes |
| Shipping weight | 2.75 kg |
Engineering data
Drive and fit the LS-DOM-0135
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Current at 24 V242 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 5.8 W
Cable length500 mm
Mounting and installation
| Mounting holes | 6 × Ø 3.5 mmthrough |
|---|---|
| Cable | 0.5 m |

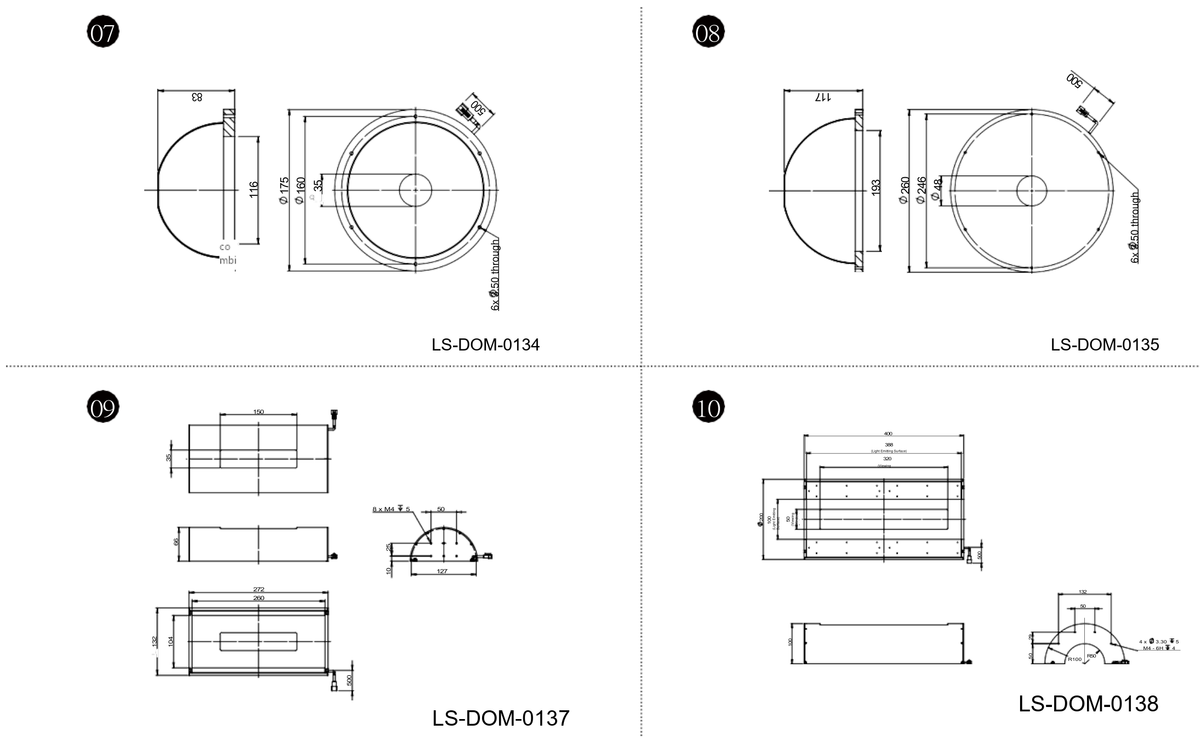

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
10 W per channel at 24 V for this 5.8 W light
Digital controller, 8 ch, 65 W
LS-CTL-0409
- Channels 8
- Output Constant voltage 24 V
$639.00
Ships in 2-3 weeks
8.1 W per channel at 24 V for this 5.8 W light
Digital controller, 16 ch, 120 W
LS-CTL-0412
- Channels 16
- Output Constant voltage 24 V
$1,019.00
Ships in 2-3 weeks
7.5 W per channel at 24 V for this 5.8 W light
20 W per channel at 24 V for this 5.8 W light
4-channel 24 V analog LED light controller
LS-CTL-0461
- Channels 4
- Output 24 V
$150.00
Ships in 3-4 weeks
15 W per channel at 24 V for this 5.8 W light
24 W per channel at 24 V for this 5.8 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-DOM-0095, the same type of part
Food, pharma and agriculture
Noodle-cake foreign fibre
Even dome light flattens the noodle texture so a dark fibre stands out.Light in sourceLS-DOM-0095 · whiteExplore the study
Set up with the LS-DOM-0050, the same type of part
Batteries and automotive
Battery welds and tabs
Control what shiny metal reflects.LightFlat dome, 100 × 100 mm emittingExplore the study
Set up with the LS-DOM-0095, the same type of part
Plastics, rubber and ceramics
Visible insert regions in a moulded carrier
Verify what each visible region represents before using it as an assembly rule.Light in sourceLS-DOM-0095 · whiteExplore the study
Other models in the Spherical integral light (LS-DOM-S22) series
See all 10 models- Largest height of the 10 models in its series: 117 mm
| Model | Outer diameter | Height | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-DOM-0135This model | 260 mm | 117 mm | $1,249.00 | Ships in 2-3 weeks | |
| LS-DOM-0129 | 32 mm | 23 mm | $139.00 | Ships in 2-3 weeks | View |
| LS-DOM-0130 | 52 mm | 36 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-DOM-0136 | 60 mm | $309.00 | Ships in 2-3 weeks | View | |
| LS-DOM-0131 | 70 mm | 40 mm | $349.00 | Ships in 2-3 weeks | View |
| LS-DOM-0132 | 116 mm | 61 mm | $439.00 | Ships in 2-3 weeks | View |
| LS-DOM-0133 | 134 mm | 69 mm | $559.00 | Ships in 2-3 weeks | View |
| LS-DOM-0134 | 175 mm | 83 mm | $719.00 | Ships in 2-3 weeks | View |
| LS-DOM-0137 | 272 mm | 65 mm | $1,339.00 | Ships in 2-3 weeks | View |
| LS-DOM-0138 | 100 mm | $2,409.00 | Ships in 2-3 weeks | View |
