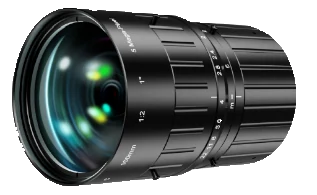

100 mm, F2.0, 1", 900-1700 nm, C-mount, SWIR lens
LS-FFL-1545
- Focal length 100 mm
- Mount C-mount
$779.00
Ships in 2-3 weeks
Rendered illustration
Rendered illustration: the actual product may differ in appearance.
Area scan cameras

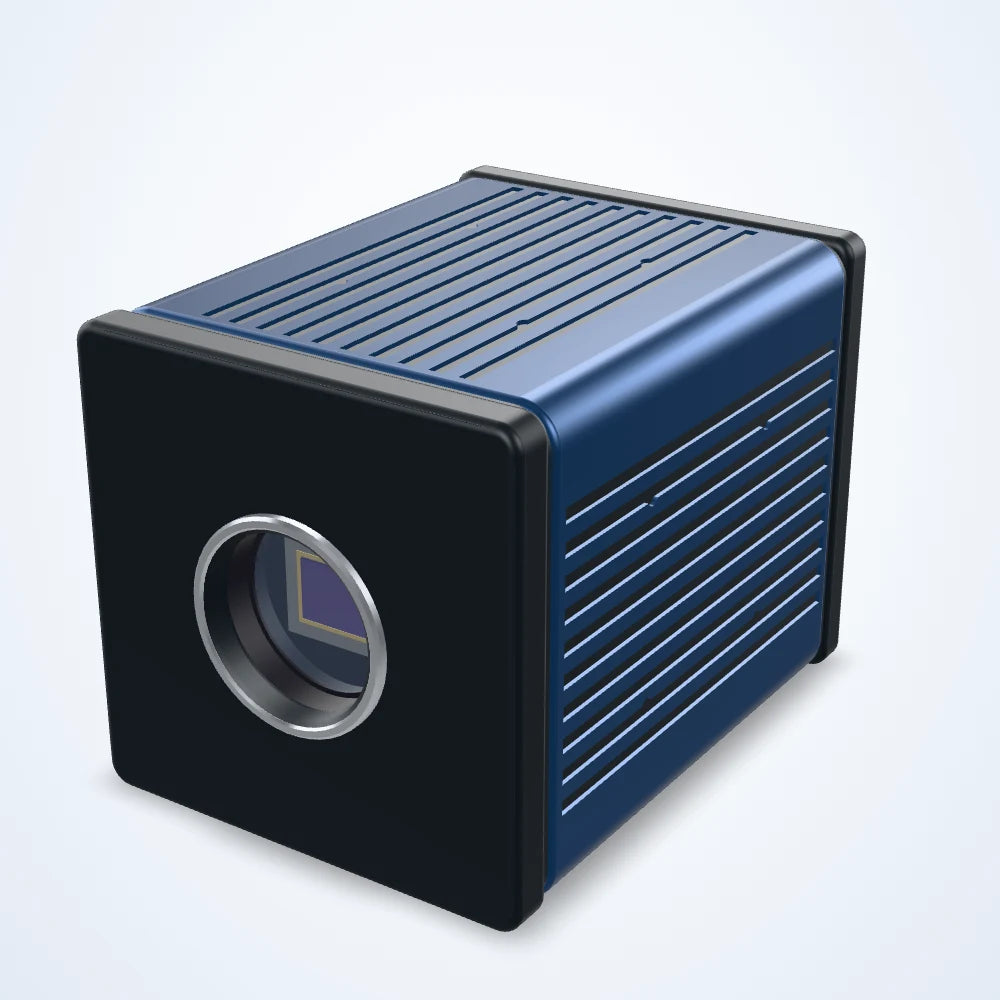

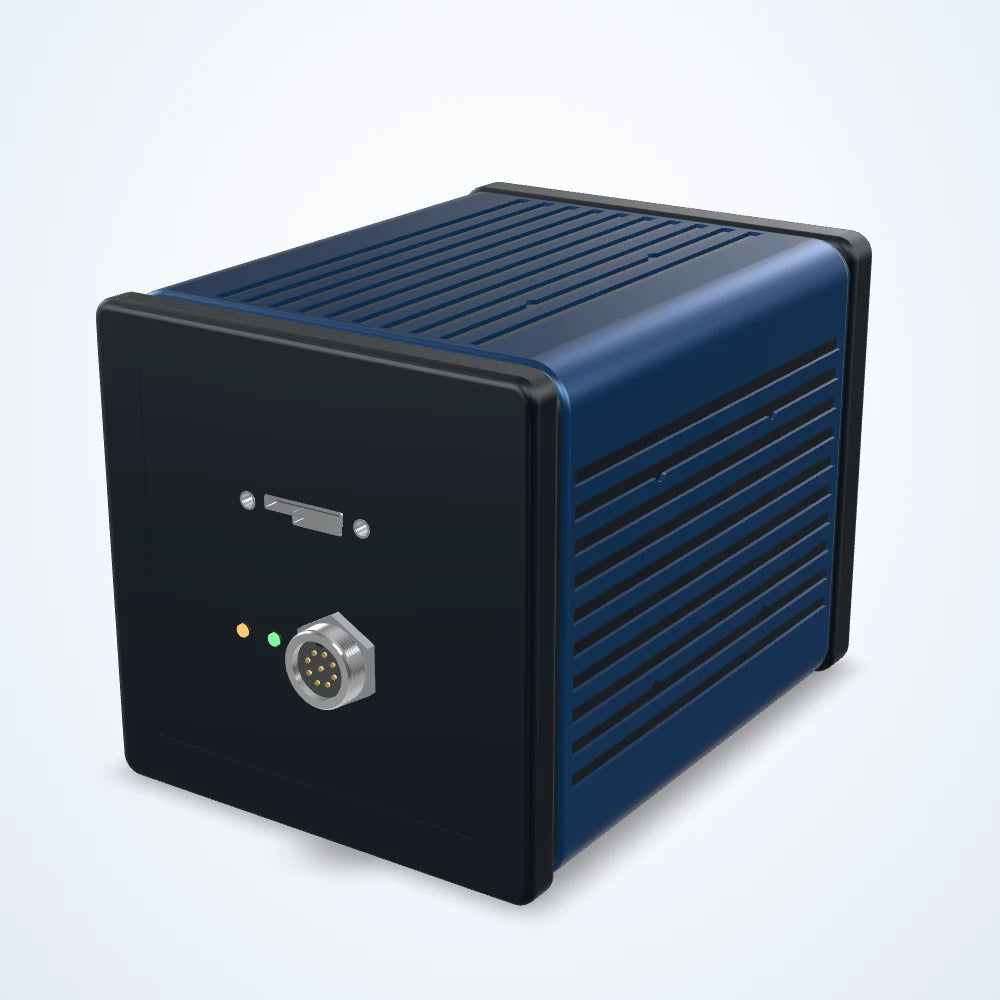

640 x 512 SWIR camera, 240 fps (LS-CMR-0551)
Model LS-CMR-0551
- Resolution640 × 512
- Sensor3/4″ (9.60 × 7.68)
- InterfaceUSB3.0
- Speed240 fps
- Lens mountC-mount
- Pixel size15 μm
$55,000.00
Ships in 3-4 weeks
0.78 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Ask an engineerBrowse Area scan cameras
lumaspecvision.com/products/lumaspec-ls-cmr-0551
LS-CMR-0551: resolution 640 x 512; dimensions 68mmX68mmX90.3 mm; power supply USB3.0, DC12 V.
0.3 MP SWIR camera for inspection, measurement and guidance on the production line. 640 x 512 pixels; up to 240 frames per second.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CMR-0551 |
|---|
Sensor and imaging
| Resolution | 640 × 512 |
|---|---|
| Max. frame rate | 240 fps |
| Sensor model | 1000-1900 |
| Shutter | Global |
| Sensor size | 3/4″ (9.60 × 7.68) |
| Pixel size | 15 μm |
| Pixel format | Mono 12 / Mono 14 |
| Pixel bit depth | 8/12/14 bit |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output |
Light
| Color Type | SWIR |
|---|
Environment and compliance
| Operating temperature | -30 to 60 °C |
|---|---|
| Storage temperature | -40 to 85 °C |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | USB3.0, DC12 V |
Mechanical

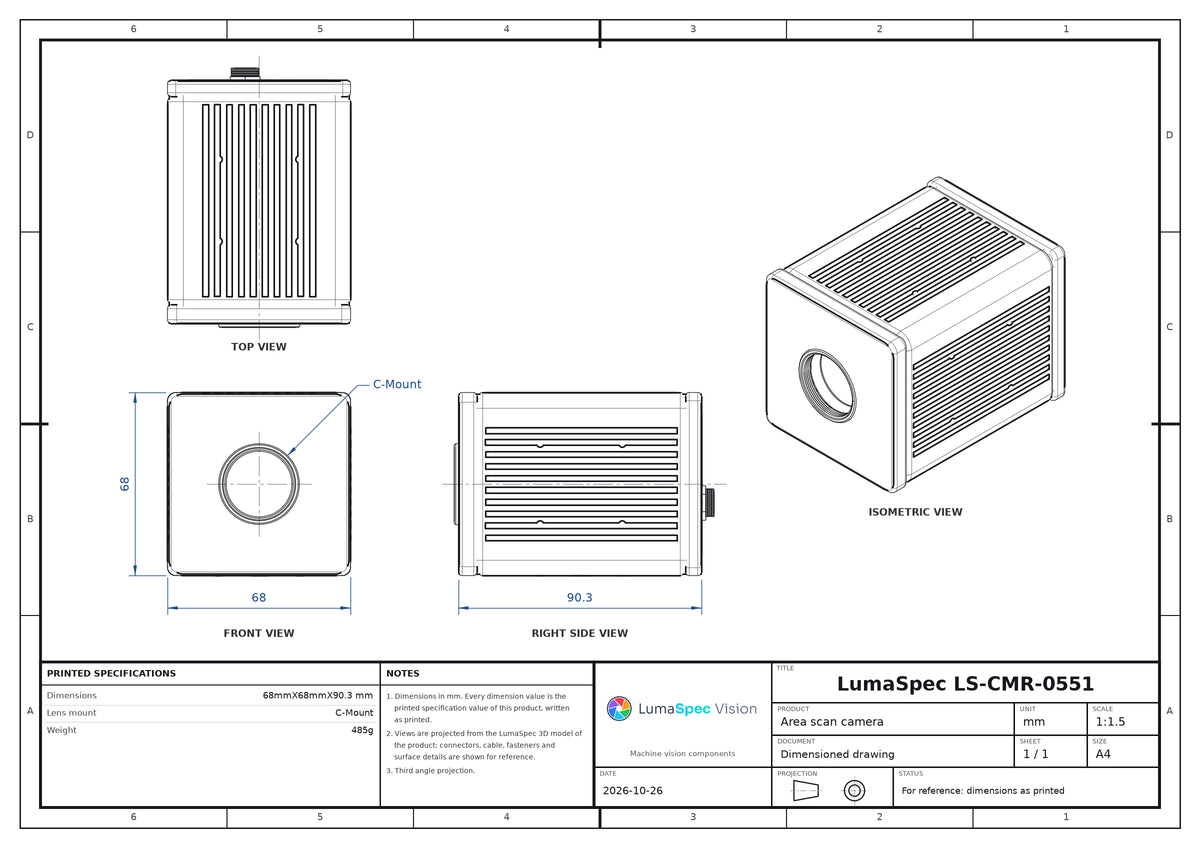

| Dimensions | 68mmX68mmX90.3 mm |
|---|---|
| Lens mount | C-Mount |
| Weight | 485 g |
Engineering data
Field of view and resolution with the LS-CMR-0551
Sensor area9.6 × 7.68 mm3/4" optical format
Lens image circle needed≥ Ø 12.3 mmC-mount
Pixel pitch15 µm640 x 512 px
Image data at max frame rate78.6 MB/sCalculated: 240 fps × 640 × 512 px at 8 bit
· USB3 carries 625 MB/s nominal
With a 16 mm lens at 500 mm300 × 240 mm0.469 mm per pixel
ShutterGlobal
Weight485 g
| Lens | At 300 mm | At 500 mm | At 1000 mm |
|---|---|---|---|
| 8 mm | 360 × 288 mm0.562 mm per pixel | 600 × 480 mm0.938 mm per pixel | 1200 × 960 mm1.875 mm per pixel |
| 12 mm | 240 × 192 mm0.375 mm per pixel | 400 × 320 mm0.625 mm per pixel | 800 × 640 mm1.25 mm per pixel |
| 16 mm | 180 × 144 mm0.281 mm per pixel | 300 × 240 mm0.469 mm per pixel | 600 × 480 mm0.938 mm per pixel |
| 25 mm | 115 × 92.2 mm0.18 mm per pixel | 192 × 154 mm0.3 mm per pixel | 384 × 307 mm0.6 mm per pixel |
| 35 mm | 82.3 × 65.8 mm0.129 mm per pixel | 137 × 110 mm0.214 mm per pixel | 274 × 219 mm0.429 mm per pixel |
| 50 mm | 57.6 × 46.1 mm0.09 mm per pixel | 96 × 76.8 mm0.15 mm per pixel | 192 × 154 mm0.3 mm per pixel |
Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part640 x 512 SWIR camera, 240 fps (LS-CMR-0551)
$55,000.00
-
Lenses for this camera
100 mm, F2.0, 1", 900-1700 nm, C-mount, SWIR lens (LS-FFL-1545)
$779.00
Set total $55,779.00
Added to your quote list.
Lenses for this C-mount camera
This camera's 12.3 mm sensor diagonal uses 77 % of the lens's 16 mm image circle

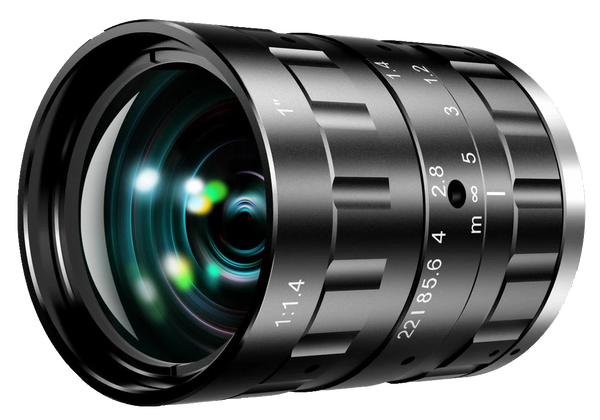

35 mm, F1.4, 1", 900-1700 nm, C-mount, SWIR lens
LS-FFL-1543
- Focal length 35 mm
- Mount C-mount
$449.00
Ships in 2-3 weeks
This camera's 12.3 mm sensor diagonal uses 77 % of the lens's 16 mm image circle

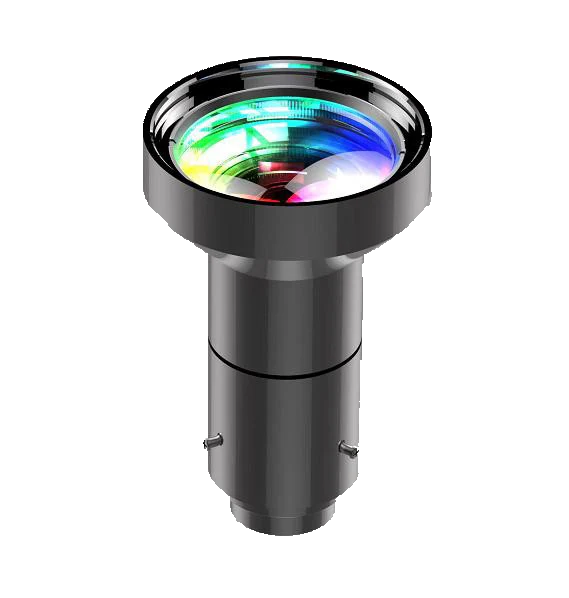

12 mm, F1.6, 1", 900-1700 nm, C-mount, SWIR lens
LS-FFL-1540
- Focal length 12 mm
- Mount C-mount
$369.00
Ships in 2-3 weeks
This camera's 12.3 mm sensor diagonal uses 77 % of the lens's 16 mm image circle

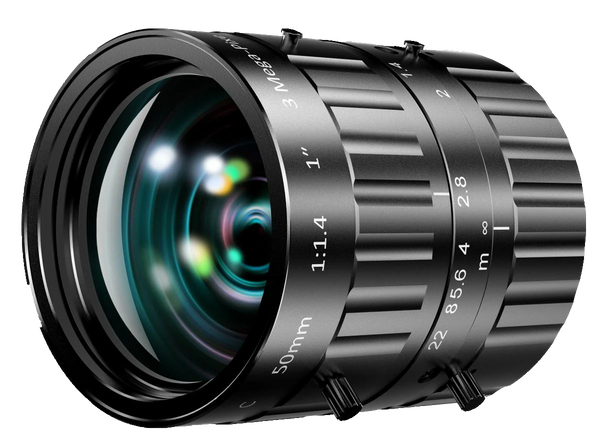

50 mm, F1.4, 1", 900-1700 nm, C-mount, SWIR lens
LS-FFL-1544
- Focal length 50 mm
- Mount C-mount
$489.00
Ships in 2-3 weeks
This camera's 12.3 mm sensor diagonal uses 77 % of the lens's 16 mm image circle
25 mm, F1.4, 1", 900-1700 nm, C-mount, SWIR lens
LS-FFL-1542
- Focal length 25 mm
- Mount C-mount
$449.00
Ships in 2-3 weeks
This camera's 12.3 mm sensor diagonal uses 77 % of the lens's 16 mm image circle
16 mm, F1.4, 1", 900-1700 nm, C-mount, SWIR lens
LS-FFL-1541
- Focal length 16 mm
- Mount C-mount
$389.00
Ships in 2-3 weeks
This camera's 12.3 mm sensor diagonal uses 77 % of the lens's 16 mm image circle
Before you buy
Questions about the LS-CMR-0551
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which lenses fit the LS-CMR-0551?
C-mount lenses whose image circle covers its sensor diagonal (about 12.3 mm): LS-FFL-1545 (100 mm), LS-FFL-1543 (35 mm), LS-FFL-1540 (12 mm) and LS-FFL-1544 (50 mm).
What data rate does the LS-CMR-0551 need over USB3?
About 78.6 MB/s at its printed 240 fps at 640 x 512 (8 bits per pixel, calculated), about 13 % of the nominal 625 MB/s USB3 link.
How does the LS-CMR-0551 connect?
Printed: Data interface: USB3.0.
Can the LS-CMR-0551 be triggered externally?
Yes, as printed: Trigger mode: Soft Trigger; Hardware Trigger; Free Run; Digital I/O: 1 opto-isolated input, 1 opto-isolated output.
What power supply does the LS-CMR-0551 need?
Printed: Power supply: USB3.0, DC12 V.
Learn
Guides for this part
Engineering guides picked for the LS-CMR-0551: how to choose it, set it up and get a better image.
Choosing camera resolution for dimensional inspectionCamera resolution for dimensional inspection should be calculated from field of view and the sampling needed to support your tolerance, not selected by megapixels alone.
Multiple USB cameras: diagnose connection limitsMultiple USB cameras do not have a universal four-stream limit.
Machine vision camera resolution calculatorPixels needed on each axis = field of view / smallest feature × pixels per feature.
Other models in the SWIR area scan camera (LS-CMR-S41) series
See the categoryHow this model compares
- Compared with LS-CMR-0550: operating temperature -30 to 60 °C here, -20 to 60 °C there.
Swipe to see all columns
| Model | Speed | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0550 | 25 Hz/50 Hz Option | $27,300.00 Quote | Ships in 3-4 weeks | View |
| LS-CMR-0551This model | 240 fps | $55,000.00 Quote | Ships in 3-4 weeks |
