Machine vision lenses

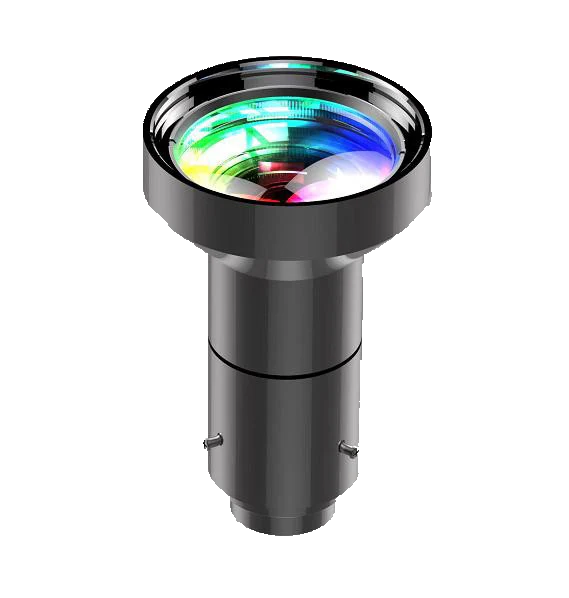

12mm, F1.6, 1", 900-1700nm, C-mount, SWIR lens (LS-FFL-1540)
Model LS-FFL-1540
- Focal length12mm
- MountC-mount
- Sensor1"
- ApertureF1.6
$369.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12mm, F1.6, 1", 900-1700nm, C-mount, SWIR lens. Maximum sensor format 1'' Large-aperture design for high light throughput
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1540 |
|---|---|
| Minimum object distance | 0.5m |
Optics
| Focal length | 12mm |
|---|---|
| F-number | F1.6 |
| Image size | Φ16 mm(1”) |
| Distortion | 2.4% |
| Field of view | D(15.86 mm):70°; H(12.45 mm):57°; V(9.83 mm):44° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M52×0.75 |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 17.526mm |
|---|---|
| Dimension | Φ55 × 79 mm |
| Shipping weight (estimated) | 0.31 kg |
Other models in the SWIR Lens Series (LS-FFL-S149) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1541 | 16mm · C-mount | $389.00 | 5 in stock | View |
| LS-FFL-1542 | 25mm · C-mount | $449.00 | 3 in stock | View |
| LS-FFL-1543 | 35mm · C-mount | $449.00 | 5 in stock | View |
| LS-FFL-1537 | 25mm · M42 | $449.00 | 4 in stock | View |
| LS-FFL-1544 | 50mm · C-mount | $489.00 | 2 in stock | View |
| LS-FFL-1538 | 40mm · M42 | $489.00 | 3 in stock | View |
| LS-FFL-1539 | 50mm · M42 | $489.00 | 4 in stock | View |
| LS-FFL-1545 | 100mm · C-mount | $779.00 | 4 in stock | View |
