40mm, F1.6, Φ28mm, 900-1700nm, M42 connector, SWIR lens (LS-FFL-1538)
  • 40mm, F1.6, Φ28mm, 900-1700nm, M42 connector, SWIR lens (LS-FFL-1538)

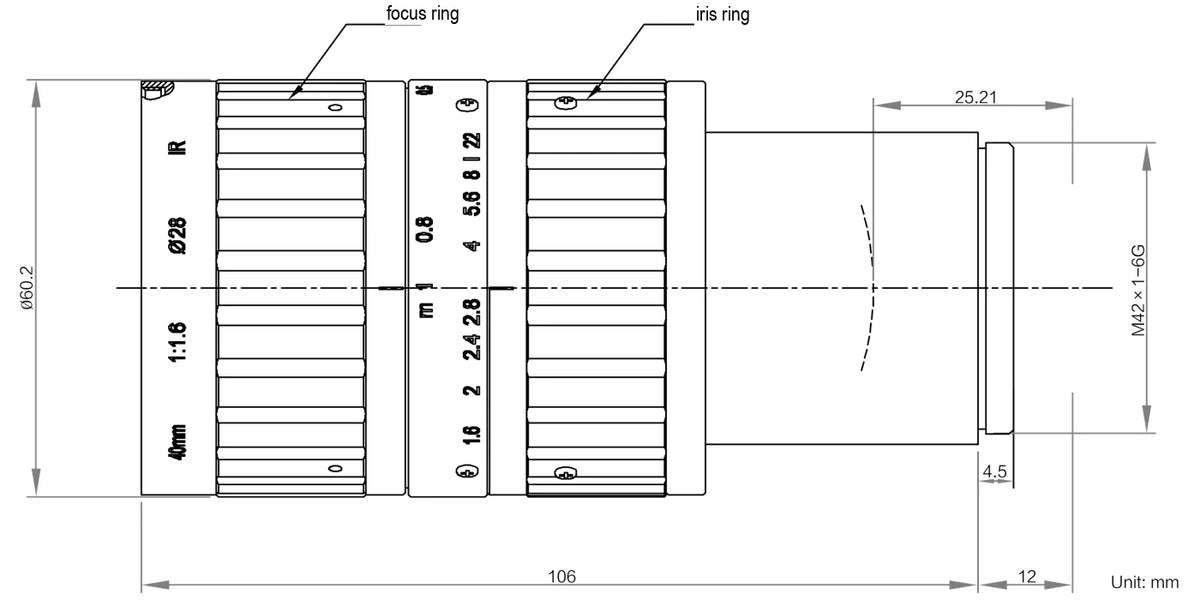

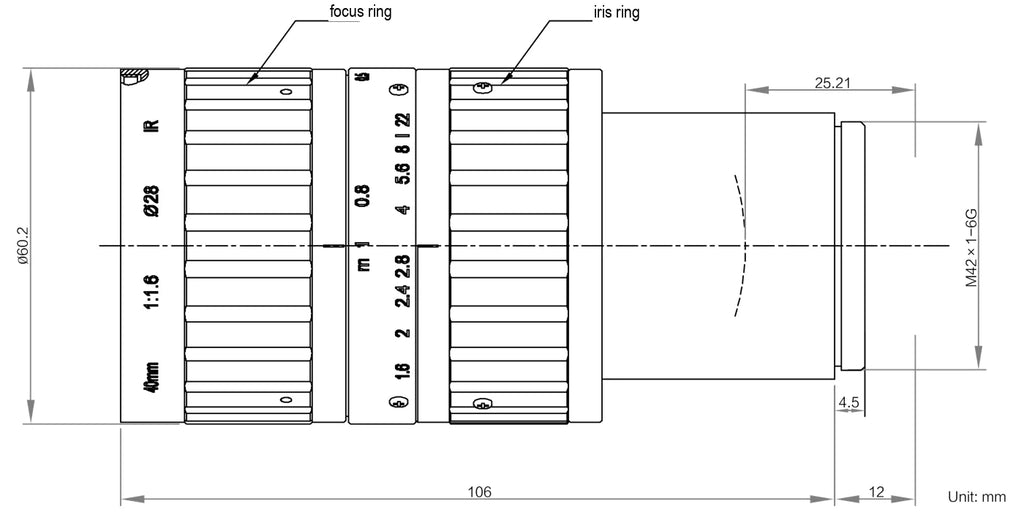

  • LS-FFL-1538 dimensions (mm)

Machine vision lenses

40mm, F1.6, Φ28mm, 900-1700nm, M42 connector, SWIR lens (LS-FFL-1538)

Model LS-FFL-1538

  • Focal length40mm
  • MountM42
  • SensorAPS-C
  • Working distance0.25~1 m
  • ApertureF1.6
$489.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

40mm, F1.6, Φ28mm, 900-1700nm, M42 connector, SWIR lens (LS-FFL-1538)LS-FFL-1538

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

40mm, F1.6, Φ28mm, 900-1700nm, M42 connector, SWIR lens. Maximum sensor format Φ28 mm Large-aperture design for high light throughput

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1538

Optics

Focal length40mm
F-numberF1.6
Image sizeΦ28mm
Distortion-0.8%
Working distance0.25~1 m
Field of viewD:35.2°; H:28.6°; V:21.5°
Iris controlManual
Focus controlManual
Filter threadM58×0.75

Interfaces and I/O

Connector typeM42-Mount

Environment and compliance

Temperature-10 ~ 50°C
CertificationRoHS2.0

Mechanical

Flange back length12mm
DimensionΦ60.2×106mm
Shipping weight (estimated)0.31 kg

Other models in the SWIR Lens Series (LS-FFL-S149) series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1540 12mm · C-mount $369.00 Ships in 2-3 weeks View
LS-FFL-1541 16mm · C-mount $389.00 Ships in 2-3 weeks View
LS-FFL-1542 25mm · C-mount $449.00 Ships in 2-3 weeks View
LS-FFL-1543 35mm · C-mount $449.00 Ships in 2-3 weeks View
LS-FFL-1537 25mm · M42 $449.00 Ships in 2-3 weeks View
LS-FFL-1544 50mm · C-mount $489.00 Ships in 2-3 weeks View
LS-FFL-1539 50mm · M42 $489.00 Ships in 2-3 weeks View
LS-FFL-1545 100mm · C-mount $779.00 Ships in 2-3 weeks View
