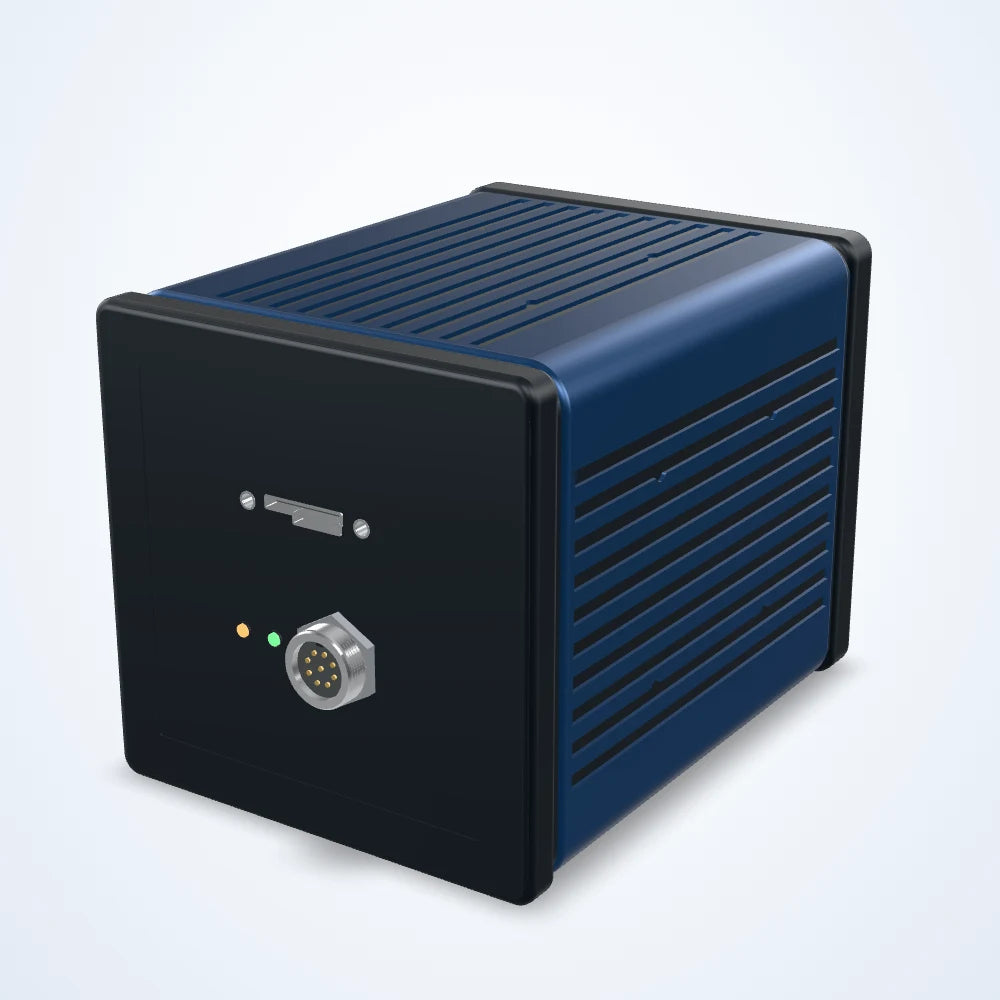

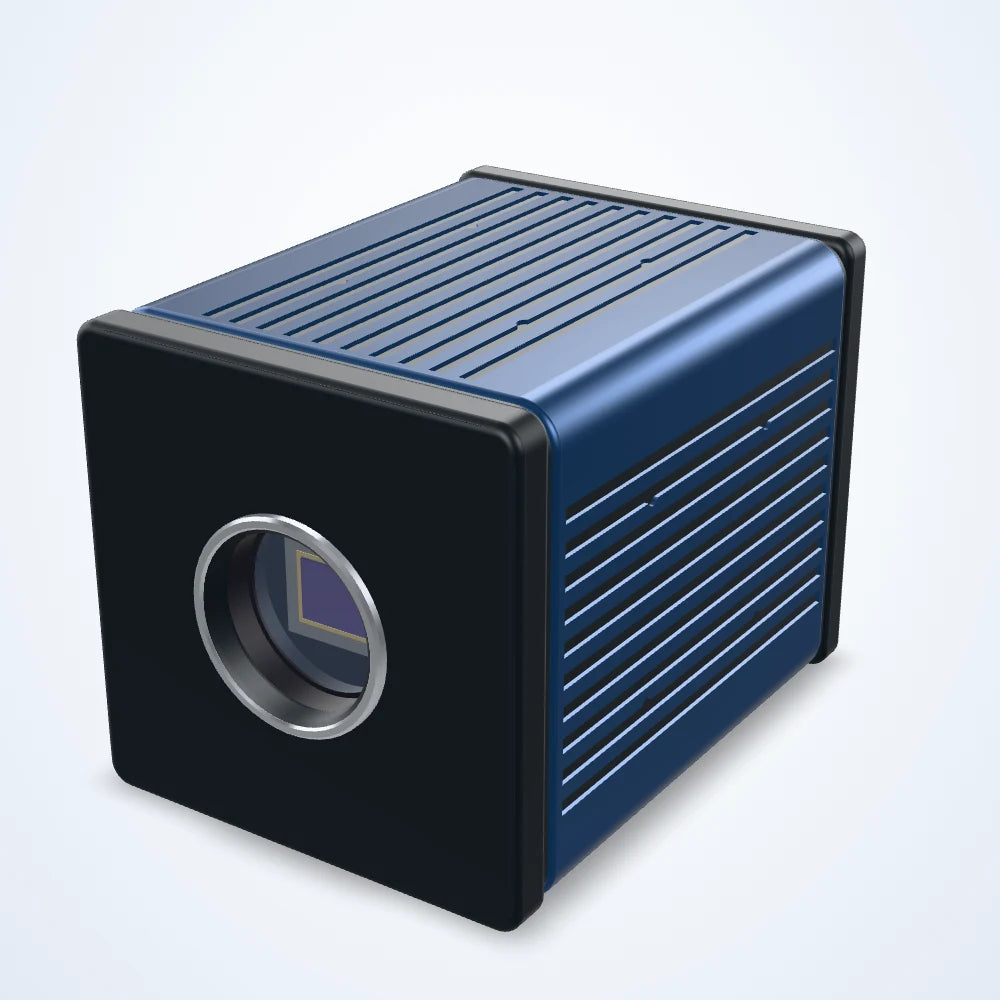

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
2048 x 1536 Camera Link SWIR camera, IMX993, 150 fps (LS-CMR-0519)
Model LS-CMR-0519
- Resolution2048 × 1536
- SensorInGaAs
- InterfaceCameraLink
- Speed150 fps
- Lens mountC-mount
- Pixel size3.5 μm
$23,145.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
2.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
3.1 MP SWIR camera for inspection, measurement and guidance on the production line. IMX993 sensor; 2048 x 1536 pixels; up to 150 frames per second; Camera Link interface; spectral range 400-1700 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0519 |
|---|---|
| Spectral range | 400-1700 nm |
Sensor and imaging
| Resolution | 2048 × 1536 |
|---|---|
| Sensor model | IMX993 |
| Max. frame rate | 150 fps |
| Sensor type | InGaAs |
| Pixel size | 3.5 μm |
| Sensor size | 1/1.8" |
| Dynamic range | 51.36 dB (HCG); 51.47 dB (LCG) |
| Exposure time | 15 μs-60s |
| Pixel bit depth | 8/12 bit |
Interfaces and I/O
| Data interface | CameraLink |
|---|---|
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
Environment and compliance
| Operating temperature | -20 °C ~ +60 °C(Operating)-40 °C ~ +85 °C(Storage) |
|---|---|
| Humidity | 20%~80% (non-condensing) |
Electrical
| Power supply | 12 V |
|---|
Mechanical
| Weight | <390 g |
|---|---|

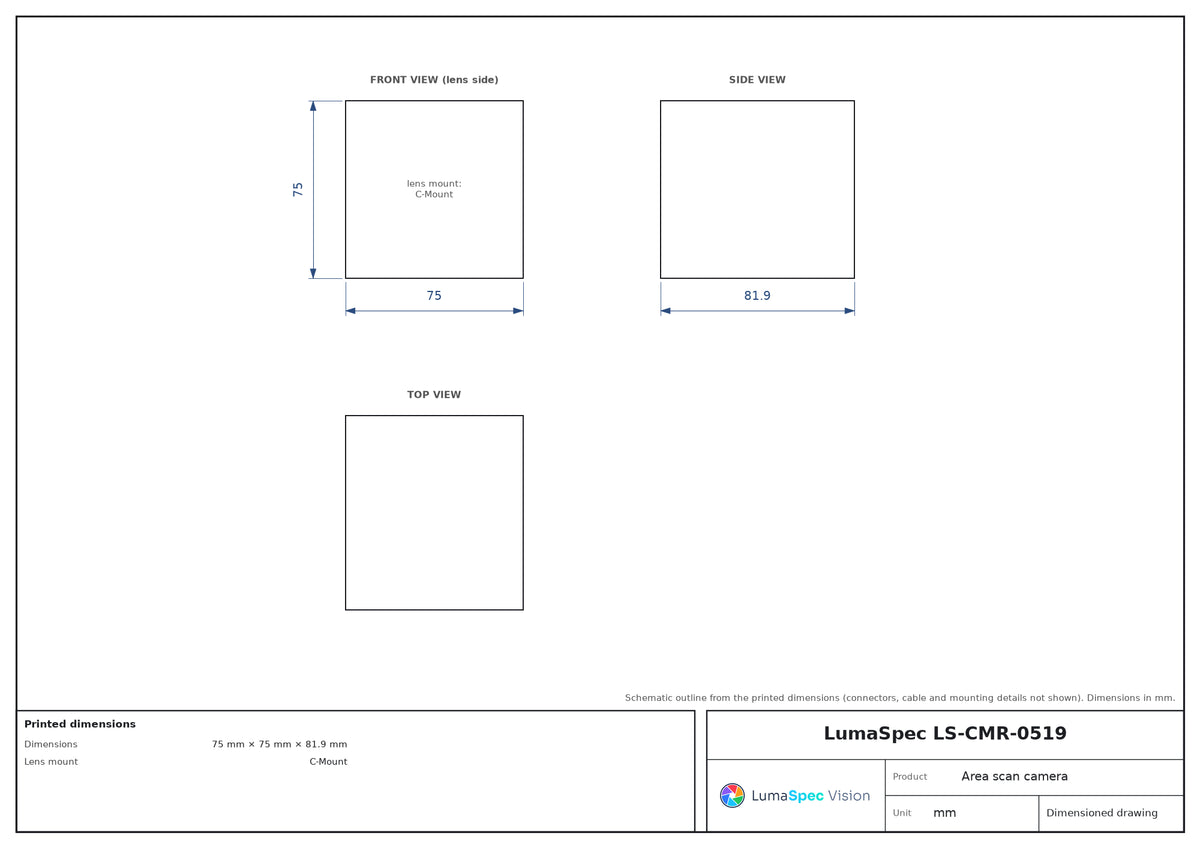

| Dimensions | 75 mm × 75 mm × 81.9 mm |
| Lens mount | C-Mount |
