640 x 512 Camera Link SWIR camera, 3/4", 533 fps, Built-in TEC
  • 640 x 512 Camera Link SWIR camera, 3/4", 533 fps, Built-in TEC
  • 640 x 512 Camera Link SWIR camera, 3/4", 533 fps, Built-in TEC

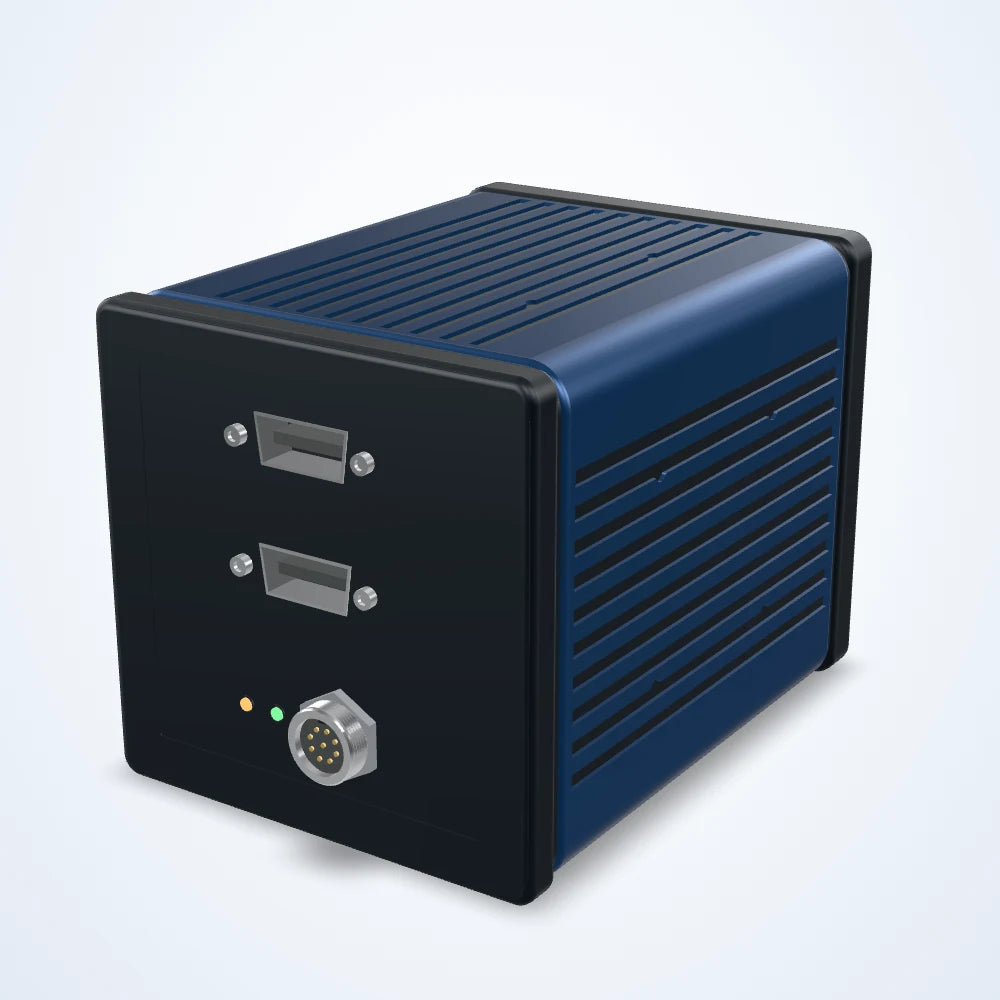

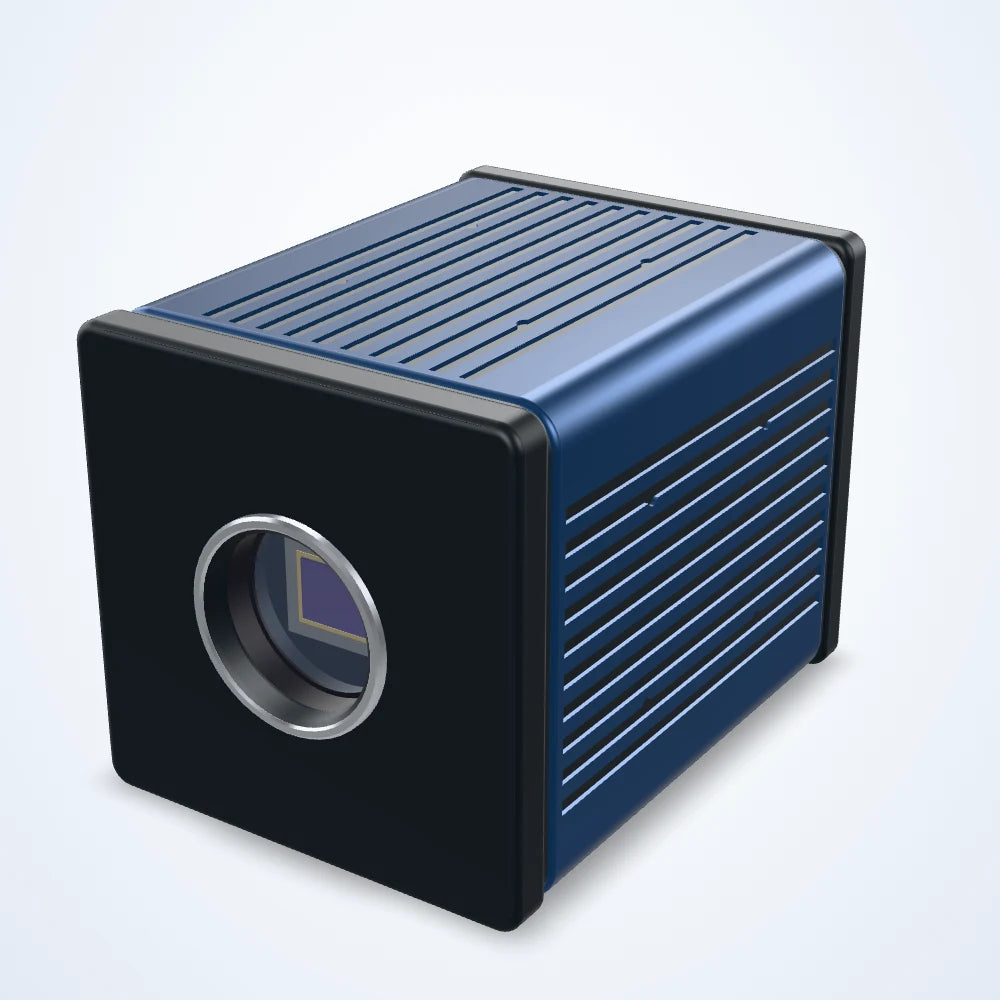

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 Camera Link SWIR camera, 3/4", 533 fps, Built-in TEC (LS-CMR-0510)

Model LS-CMR-0510

  • Resolution640x512
  • SensorInGaAs
  • InterfaceCameralink Full
  • Speed533 fps
  • Lens mountC-mount
  • Pixel size15 μm
$15,600.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

3.0 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

640 x 512 Camera Link SWIR camera, 3/4", 533 fps, Built-in TEC (LS-CMR-0510)LS-CMR-0510

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. InGaAs sensor (3/4"); 640 x 512 pixels of 15 μm; up to 533 frames per second; Camera Link interface; C-mount lens mount; spectral range 900-1700 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0510
Spectral range900-1700 nm
Quantum efficiency75%@1350 nm

Sensor and imaging

Sensor typeInGaAs
Max. frame rate533 fps
Resolution640x512
Pixel size15 μm
Sensor size3/4"
Exposure time31.25 μs-1s

Interfaces and I/O

Data interfaceCameralink Full

Mechanical

Lens mountC-Mount
Shipping weight3.00 kg
