Rendered illustration: the actual product may differ in appearance.
Area scan cameras
640 x 512 Camera Link SWIR camera, IMX991, 350 fps (LS-CMR-0507)
Model LS-CMR-0507
- Resolution640 × 512
- SensorInGaAs
- InterfaceCamera Link
- Speed350 fps
- Lens mountC-mount
- Pixel size5 μm
$8,750.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX991 sensor; 640 x 512 pixels; up to 350 frames per second; Camera Link interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0507 |
|---|---|
| Spectral Band | 0.4-1.8um |
Sensor and imaging
| Resolution | 640 × 512 |
|---|---|
| Max. frame rate | 350 fps |
| Sensor model | IMX991 |
| Sensor type | InGaAs |
| Pixel size | 5 μm |
| Sensor size | 1/4" |
| Dynamic range | 59.7 dB |
| Pixel bit depth | 8/12 bit |
Interfaces and I/O
| Data interface | Camera Link |
|---|---|
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
Environment and compliance
| Operating temperature | -20 °C ~ +60 °C(Operating)-40 °C ~ +85 °C(Storage) |
|---|---|
| Humidity | 20%~80% (non-condensing) |
Electrical
| Power supply | 12 V |
|---|
Mechanical
| Weight | <390 g |
|---|---|

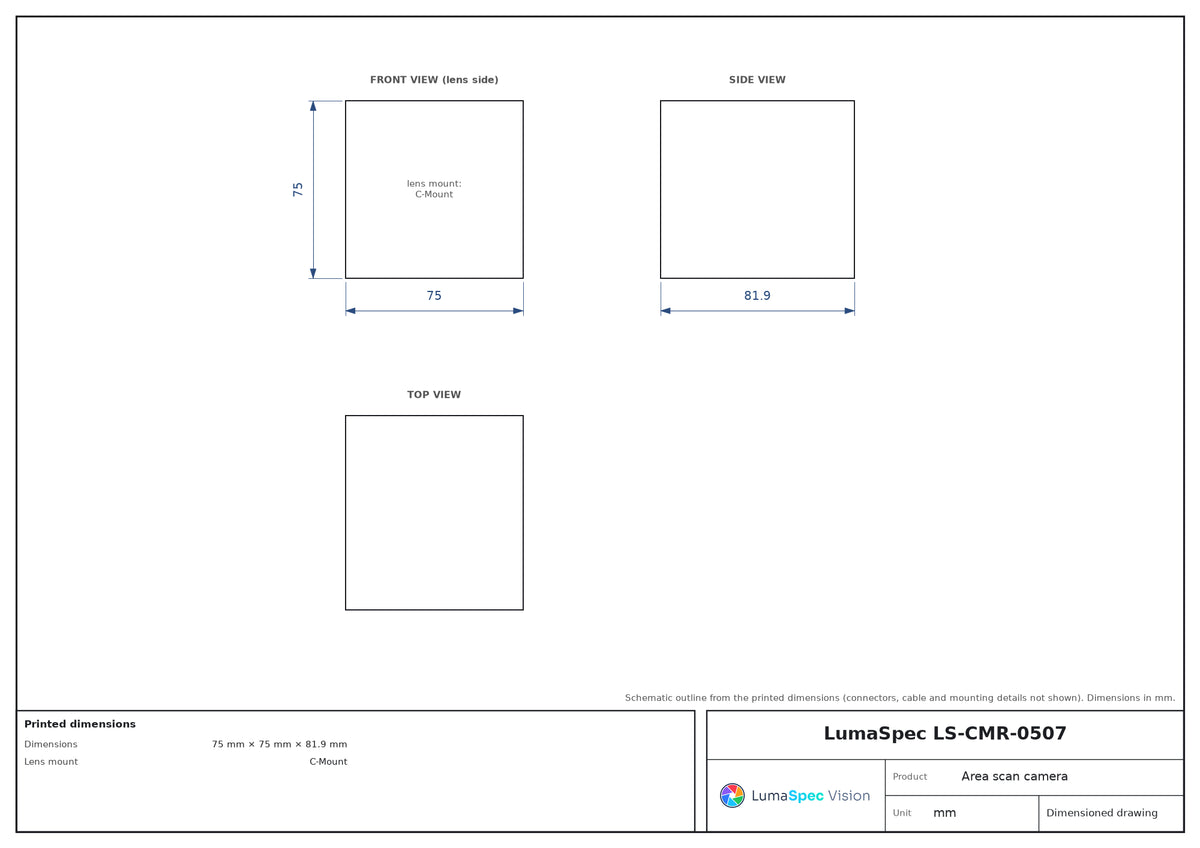

| Dimensions | 75 mm × 75 mm × 81.9 mm |
| Lens mount | C-Mount |
