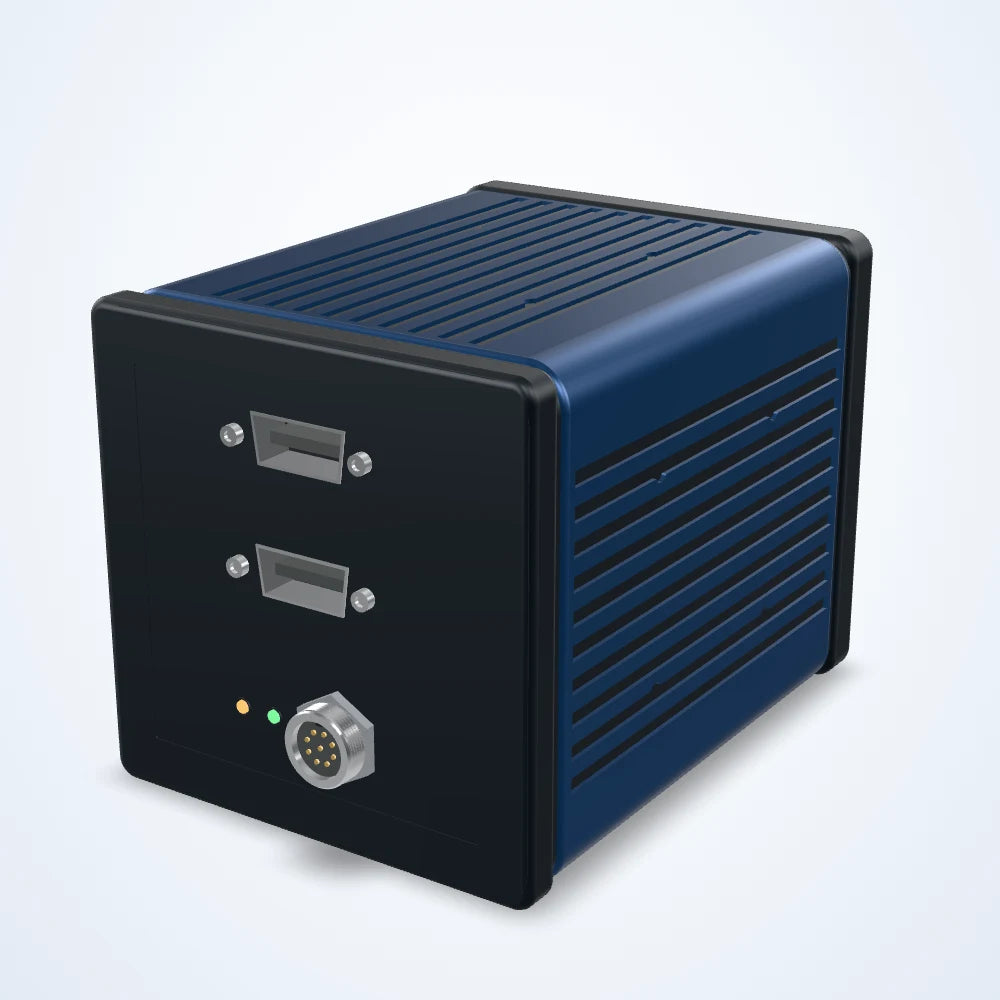

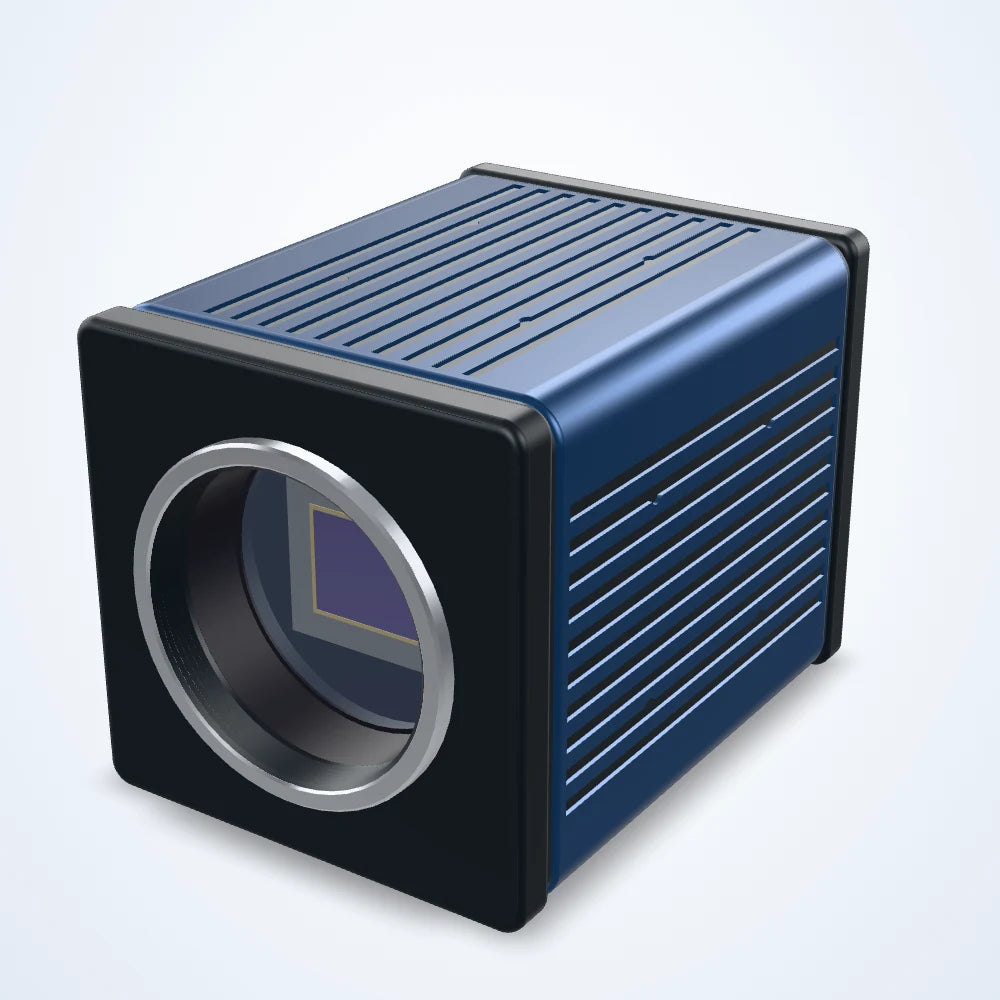

1280 x 1024 Camera Link SWIR camera, 1.5", 200 fps, M42
  • 1280 x 1024 Camera Link SWIR camera, 1.5", 200 fps, M42
  • 1280 x 1024 Camera Link SWIR camera, 1.5", 200 fps, M42
  • 1280 x 1024 Camera Link SWIR camera, 1.5", 200 fps, M42, 1280x1024 CameraLink

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1280 x 1024 Camera Link SWIR camera, 1.5", 200 fps, M42, 1280x1024 CameraLink (LS-CMR-0517)

Model LS-CMR-0517

  • Resolution1280x1024
  • Sensor1.5"
  • InterfaceCameraLink
  • Speed200 fps
  • Lens mountM42
  • Pixel size15
$37,450.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

0.78 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

1280 x 1024 Camera Link SWIR camera, 1.5", 200 fps, M42, 1280x1024 CameraLink (LS-CMR-0517)LS-CMR-0517

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.3 MP SWIR camera for inspection, measurement and guidance on the production line. InGaAs CMOS image sensor (1.5"); 1280 x 1024 pixels of 15 μm; up to 200 frames per second; Camera Link interface; M42 lens mount; spectral range 900-1700 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0517
Spectral range900-1700 nm
Quantum efficiency≥ 70@1.55 μm
Readout Noise69.2 dB(LG), 63.2 dB(MG), 57.4 dB(HG) (For reference only)
Cooling40° C below ambient temperature

Sensor and imaging

Sensor size1.5"
Max. frame rate200 fps
Pixel size15
Resolution1280x1024
Sensor typeInGaAs CMOS Image Sensor
Conversion Gain1μV/e- (LG), 16μV/e- (MG), 53.3μV/e- (HG)
Exposure time16 μs~1s
Pixel formatMono 8 / Mono 14
Sensor model900-1700 nm
ShutterGlobal
Dynamic range69.2 dB
SNR65.4 dB
Pixel bit depth14 bit

Interfaces and I/O

Data interfaceCameraLink
Digital I/O1 opto-isolated input, 1 opto-isolated output

Light

Color TypeSWIR

Environment and compliance

Storage temperature-40~85 °C
Operating temperature-30~60 °C
Humidity20%–80% RH, non-condensing

Computing

Operating systemWindows, Linux

Electrical

Power supplyDC 12 V
Power consumption8.4 W(TEC OFF)/ <16 W(TEC ON)
Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run

Mechanical

Lens mountM42-Mount
Dimensions68×68×89.8 mm (485g)
Weight485g
