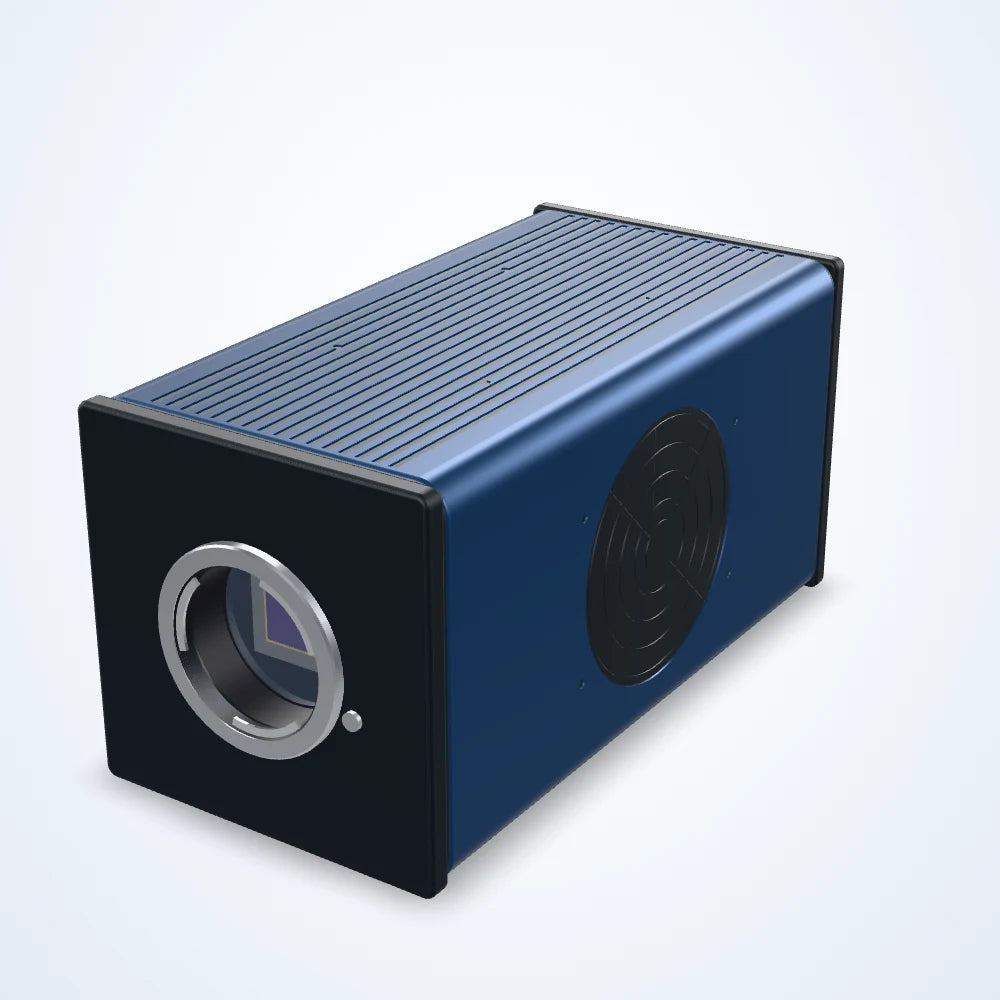

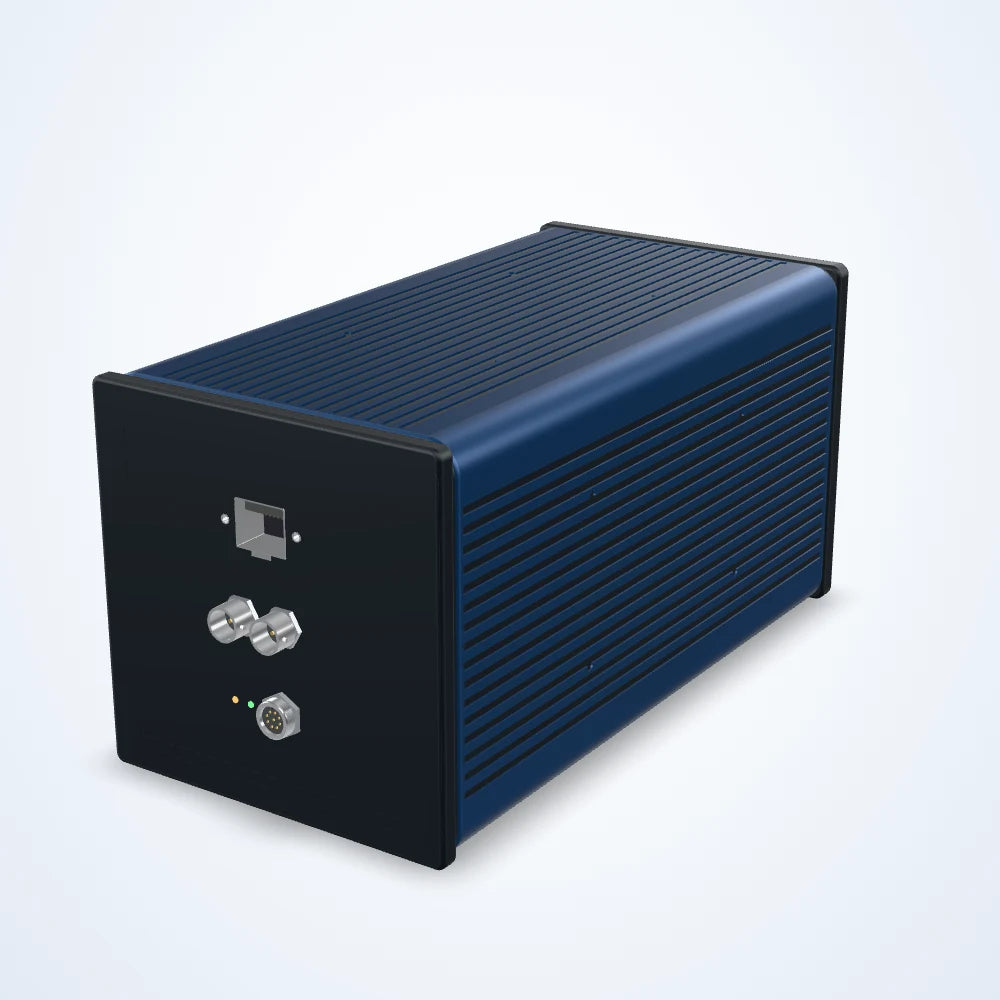

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

8.4 MP 10GigE high-speed camera, global shutter, 2000 fps (LS-CMR-0306)

Model LS-CMR-0306

  • Resolution4096×2048
  • Interface10 GigE, Adaptive GigE
  • Speed2000 fps
  • Pixel size4.5um
$49,500.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

5.0 kg shipping weight

Option

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

8.4 MP 10GigE high-speed camera, global shutter, 2000 fps (LS-CMR-0306)LS-CMR-0306

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8.4 MP high-speed camera for inspection, measurement and guidance on the production line. 4096 x 2048 pixels of 4.5 μm; up to 2000 frames per second; global shutter; 10GigE interface; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0306
ROISupported
SensitivityISO10000(Mono) ; ISO3000(Color)
Recording ModeStart, End, Center, Random, Manual
Fan ControlThe fan can be turned on and off remotely and can auto adapt to different temperatures

Sensor and imaging

Resolution4096×2048
Max. frame rate2000 fps
Min. exposure time1 μs
Pixel size4.5um
ShutterGlobal shutter
Dynamic range60 dB
Pixel bit depth8 bit / 10 bit / 12 bit
Gain×2 , ×4 , ×8
Frame rate at 4096 × 20482000 fps
Frame rate at 4096 × 15362500 fps
Frame rate at 4096 × 10243800 fps
Frame rate at 4096 × 5126900 fps
Frame rate at 4096 × 25611500 fps
Frame rate at 4096 × 12817000 fps
Frame rate at 4096 × 6420000 fps

Interfaces and I/O

Data interface10 GigE, Adaptive GigE
Digital I/OInput: Trigger (TTL/switch) signal, sync signal, ready signal, event signal, IRIGB code signal. Output: Trigger (TTL/switch) signal, sync signal, ready signal, in-exposure signal, in-record signal

Environment and compliance

Operating temperature / humidityStandard -10–50 °C , below 95% (no condensation); -40–65 °C can be customized
Operating temperature-10~50 °C,below 95% (no condensation);versions with wide temperature range of -35~65 °C can be customized

Computing

Operating systemWindows

Electrical

Trigger modeManual, IO, Image
Video Signal OutputSDI, Ethernet
Power supplyDual power supply, DC24 V@55 W
Power consumption55 W

Mechanical

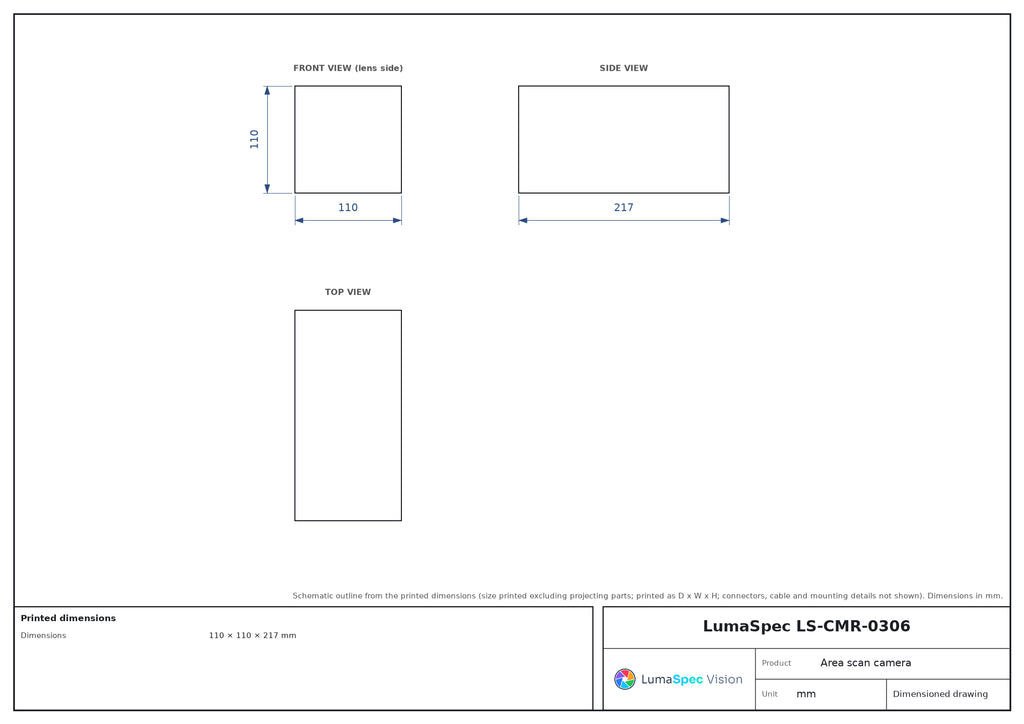

Dimensions217D×110 W×110H, excluding projecting parts (3.8 kg)
Lens mountE connector, which can be transfered to F / C / EF connector
Weight3.8 kg
