Area scan cameras
1.1 MP CoaXPress high-speed camera, global shutter, 3600 fps (LS-CMR-0288)
Model LS-CMR-0288
- Resolution1280x864
- InterfaceCoaxPress-12 2 channels
- Speed1800 fps
- Pixel size10 μm
$9,600.00
Ships in 3-4 weeks
22.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.1 MP high-speed camera for inspection, measurement and guidance on the production line. 1280 x 864 pixels of 10 μm; up to 3600 frames per second; global shutter; CoaXPress interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0288 |
|---|---|
| ROI | Supported |
| Sensitivity | ISO30000(Mono) ; ISO10000(Color) |
| Fan Control | Optional, supports enable/disable, and can auto-adapt to temperature changes |
| Ultra-High Speed | Up to 3600 fps for capturing fast-moving events. |
| High-Speed Data Transfer | CoaXPress CXP-12 interface supports high-bandwidth imaging. |
| High Sensitivity | Up to ISO 30,000 for monochrome imaging in challenging lighting. |
| Flexible Configurations | Multiple resolution, frame rate, and Mono/Color options available. |
| Recording Mode | Start, End, Center, Random, Manual |
Sensor and imaging
| Resolution | 1280x864 |
|---|---|
| Max. frame rate | 1800 fps |
| Min. exposure time | 100ns |
| Pixel size | 10 μm |
| Shutter | Global shutter |
| Dynamic range | 60 dB |
| Pixel bit depth | 8 / 10 bit |
| Gain | ×2 , ×4 , ×8 |
| Ultra-Short Exposure | 100 ns exposure minimizes motion blur. |
Interfaces and I/O
| Data interface | CoaxPress-12 2 channels |
|---|
Environment and compliance
| Operating temperature / humidity | Standard 0-40 °C , below 95% (no condensation) IP64 |
|---|
Electrical
| Trigger mode | Manual, IO, Image |
|---|---|
| Power supply | DC12-28 V@12 W |
Mechanical
| Lens mount | E and C interfaces are optional, with adapters for F and EF interfaces |
|---|---|

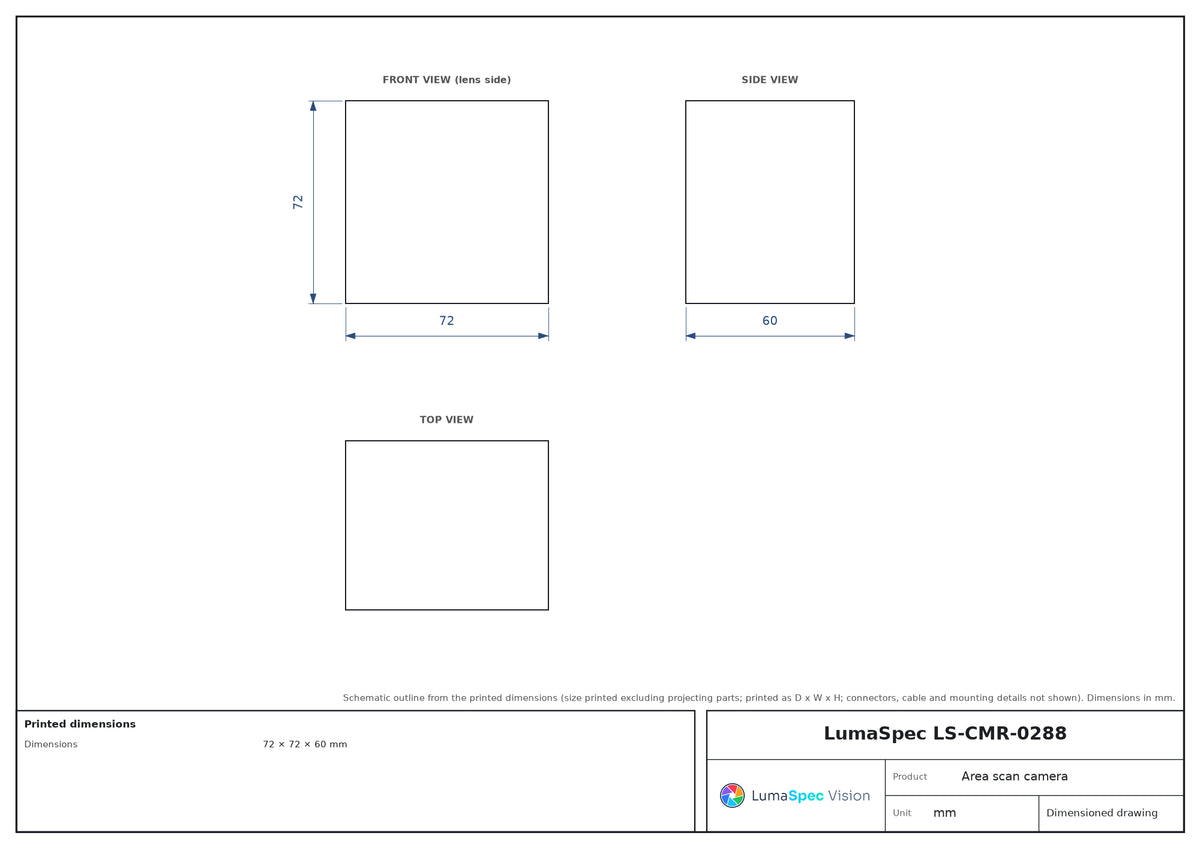

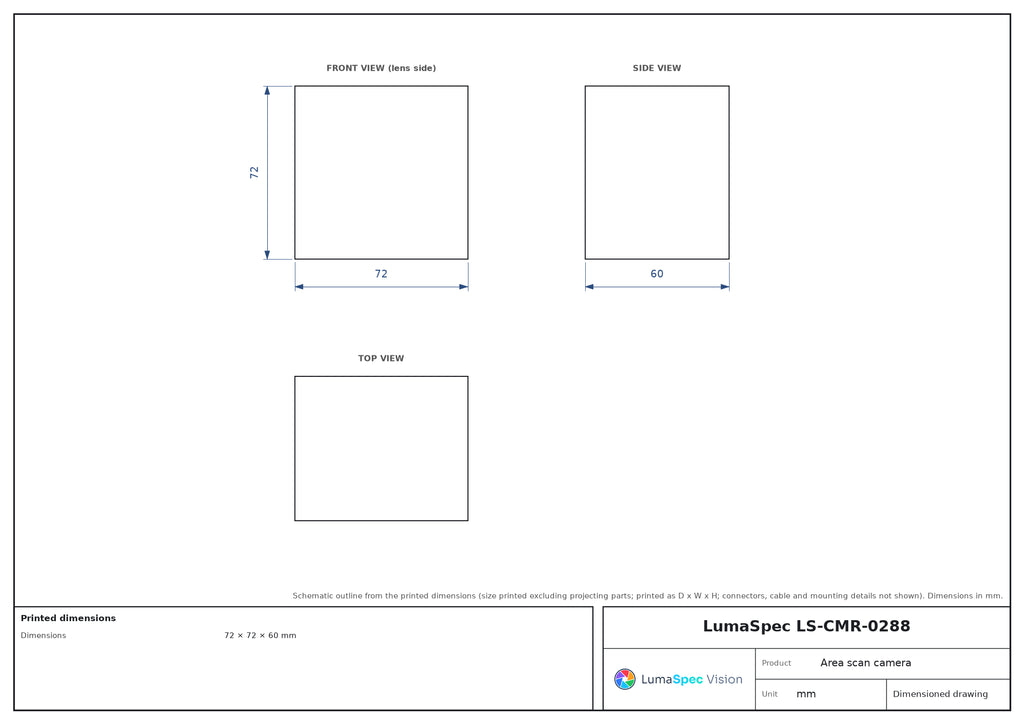

| Dimensions | 60D×72 W×72H, excluding projecting parts (<450g) |
| Shipping weight | 22.00 kg |
