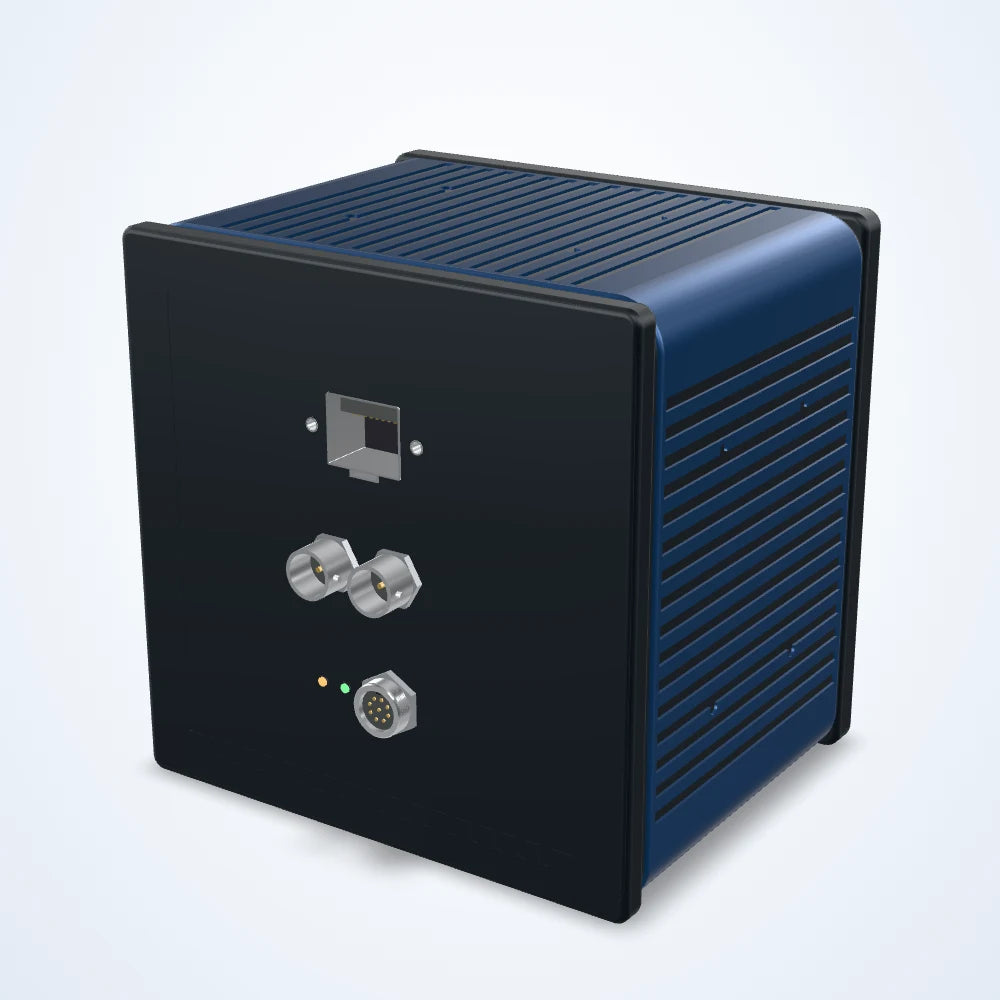

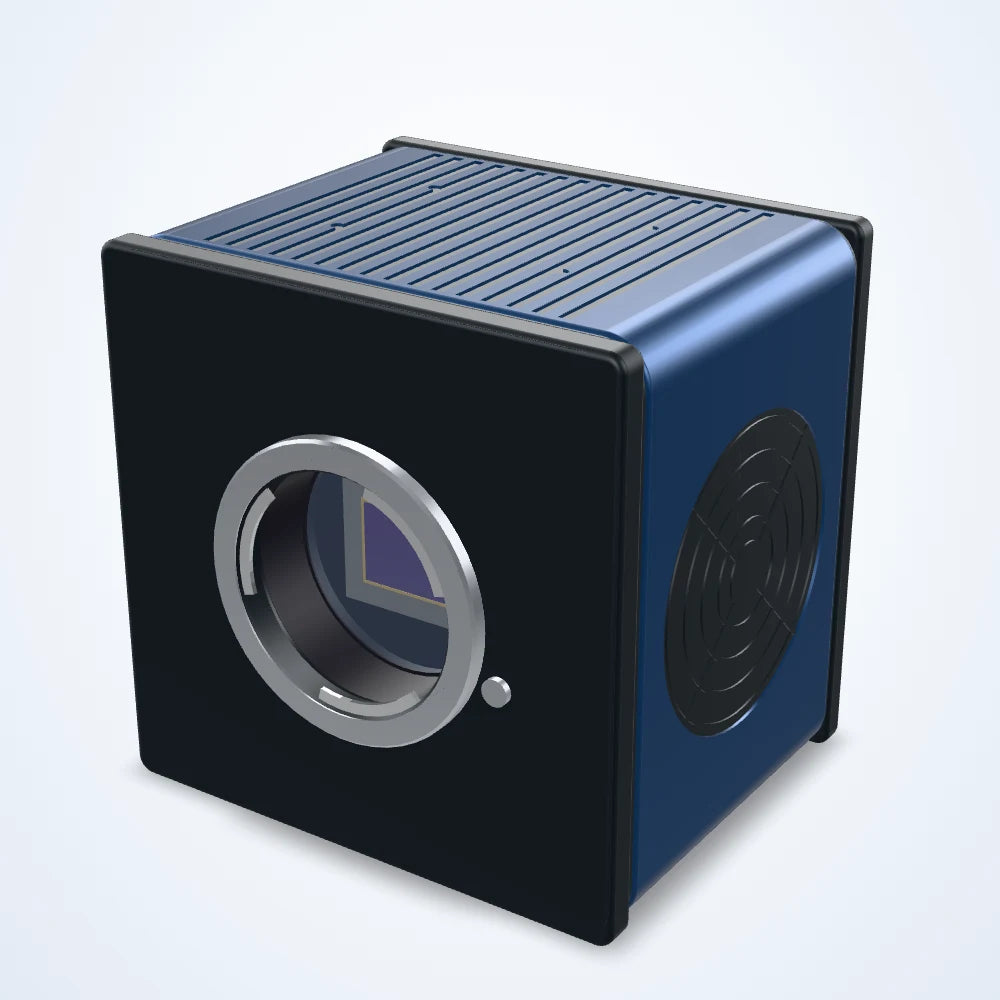

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
1.3 MP 10GigE high-speed camera, global shutter, 5000 fps (LS-CMR-0291)
Model LS-CMR-0291
- Resolution1280×1024
- Interface10 GigE, Adaptive GigE
- Speed5000 fps
- Pixel size14.6 μm
$25,900.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
2.49 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
1.3 MP high-speed camera for inspection, measurement and guidance on the production line. 1280 x 1024 pixels of 14.6 μm; up to 5000 frames per second; global shutter; 10GigE interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0291 |
|---|---|
| Recording Mode | Start, End, Center, Random, Manual |
| Fan Control | The fan can be turned on and off remotely and can auto adapt to different temperatures |
| Sensitivity | ISO21000 |
Sensor and imaging
| Resolution | 1280×1024 |
|---|---|
| Max. frame rate | 5000 fps |
| Min. exposure time | 1 us(standard), 100ns(optional) |
| Pixel size | 14.6 μm |
| Shutter | Global shutter |
| Dynamic range | 60 dB |
| Pixel bit depth | 8 / 10 / 12 bits |
| Frame rate at 1280 × 1024 | 5000 fps |
| Frame rate at 1280 × 768 | 6700 fps |
| Frame rate at 1280 × 512 | 10000 fps |
| Frame rate at 1280 × 256 | 19900 fps |
| Frame rate at 1280 × 128 | 39000 fps |
| Frame rate at 1280 × 8 | 367000 fps |
Interfaces and I/O
| Data interface | 10 GigE, Adaptive GigE |
|---|---|
| Digital I/O | Input: Trigger (TTL/switch) signal, sync signal, ready signal, event signal, IRIGB code signal. Output: Trigger signal, sync signal, ready signal |
Environment and compliance
| Operating temperature | Standard -10~50 °C , below 95% (no condensation); -40–65 °C can be customized |
|---|
Computing
| Operating system | Windows |
|---|
Electrical
| Video Signal Output | Ethernet |
|---|---|
| Trigger mode | Manual, IO, Image |
| Power supply | DC24 V@<30 W |
| Power consumption | <30 W |
Mechanical

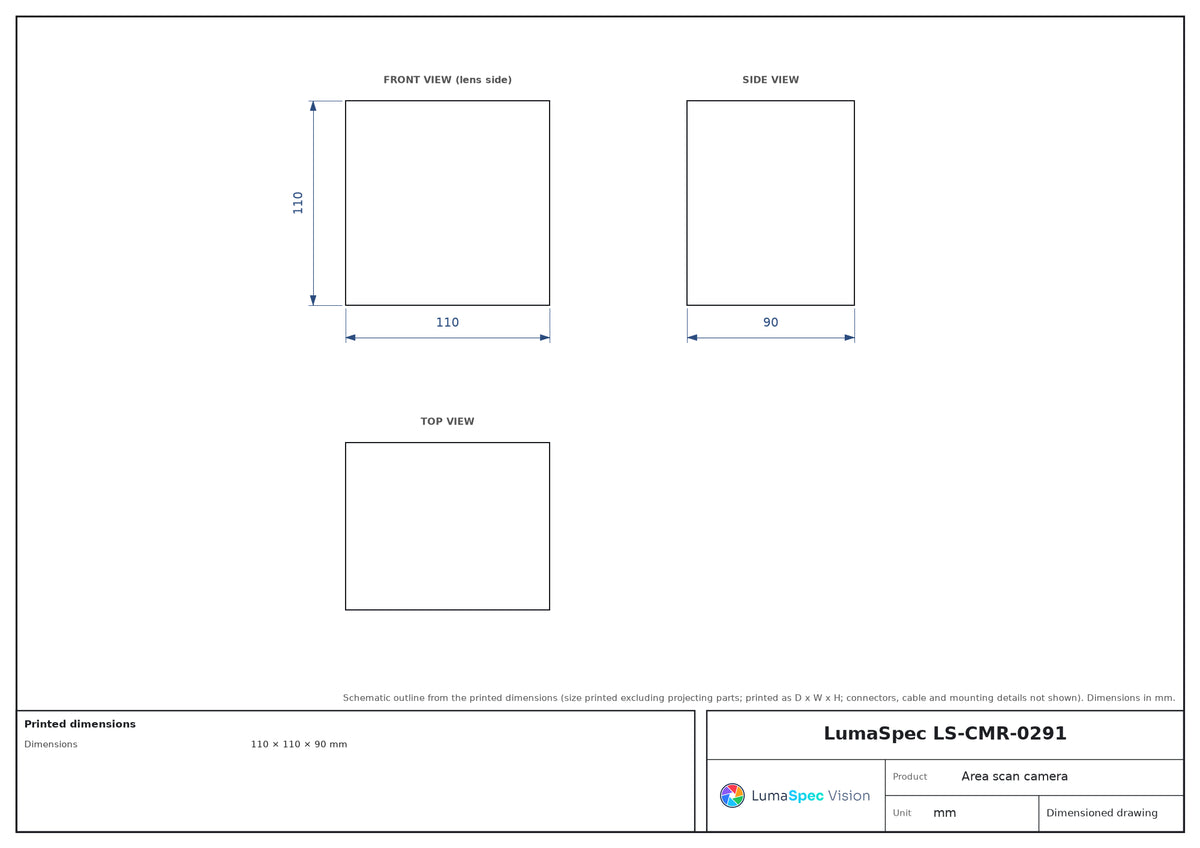

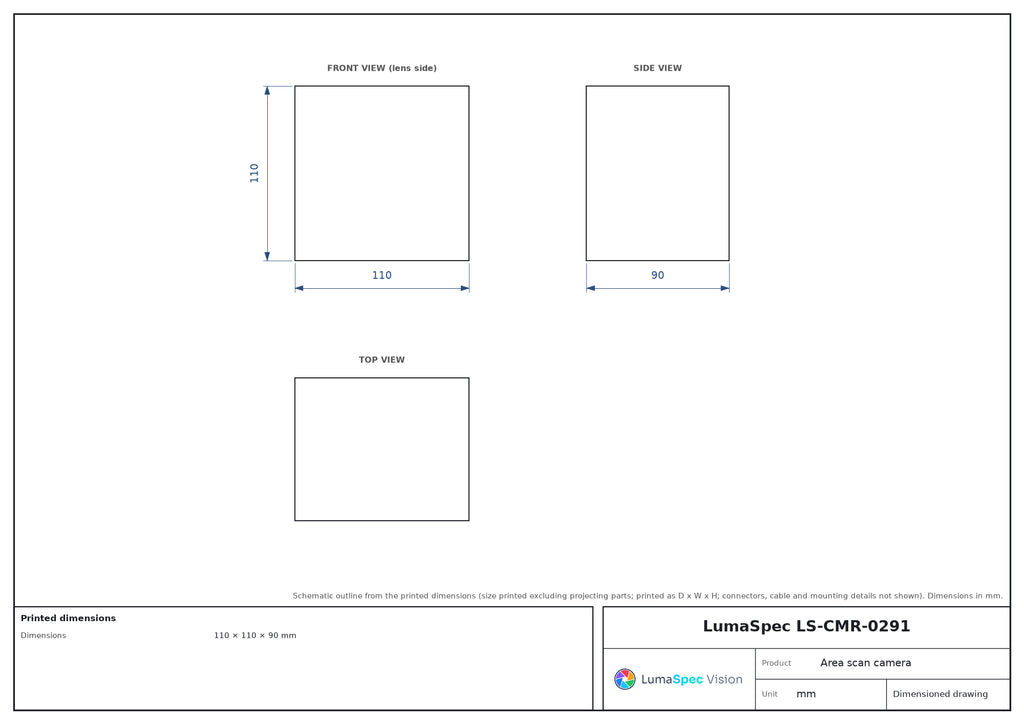

| Dimensions | 90D×110 W×110H, excluding projecting parts |
|---|---|
| Lens mount | E connector, which can be transfered to F/ C/EF connector |
| Weight | <1.8 kg |
