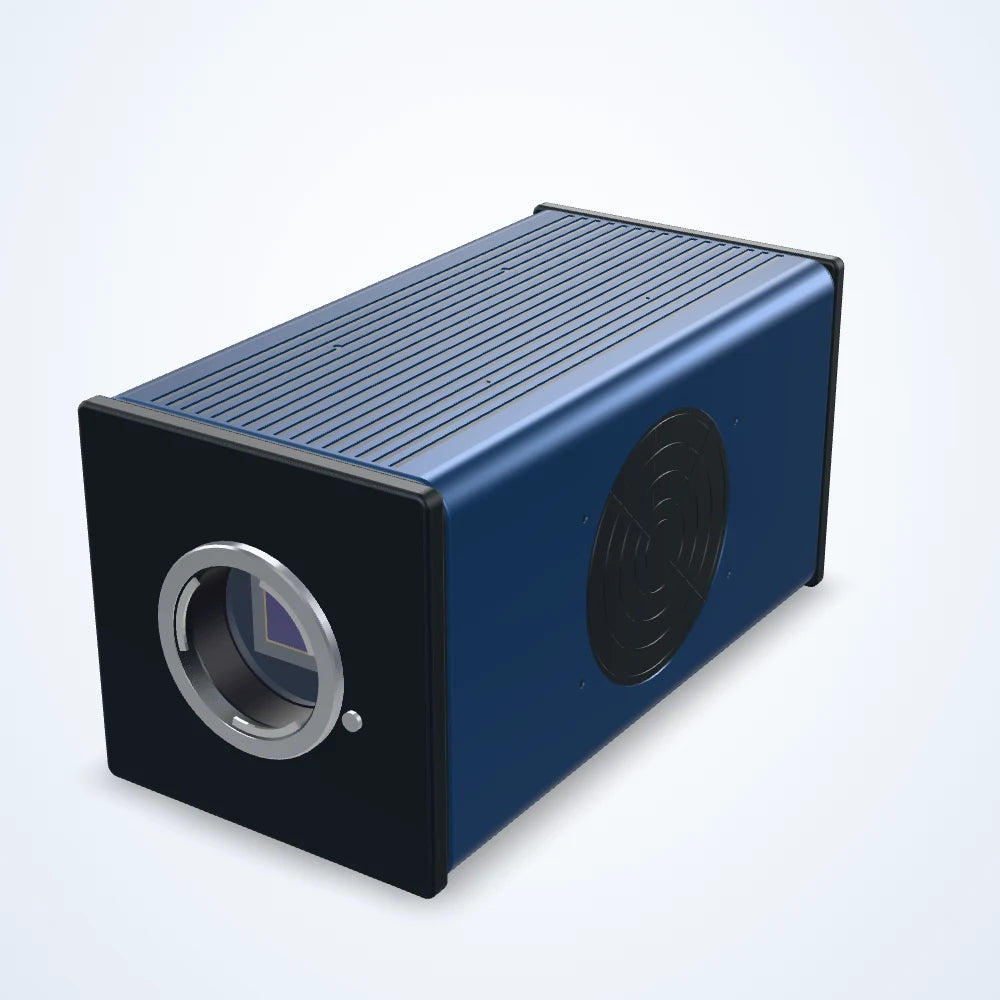

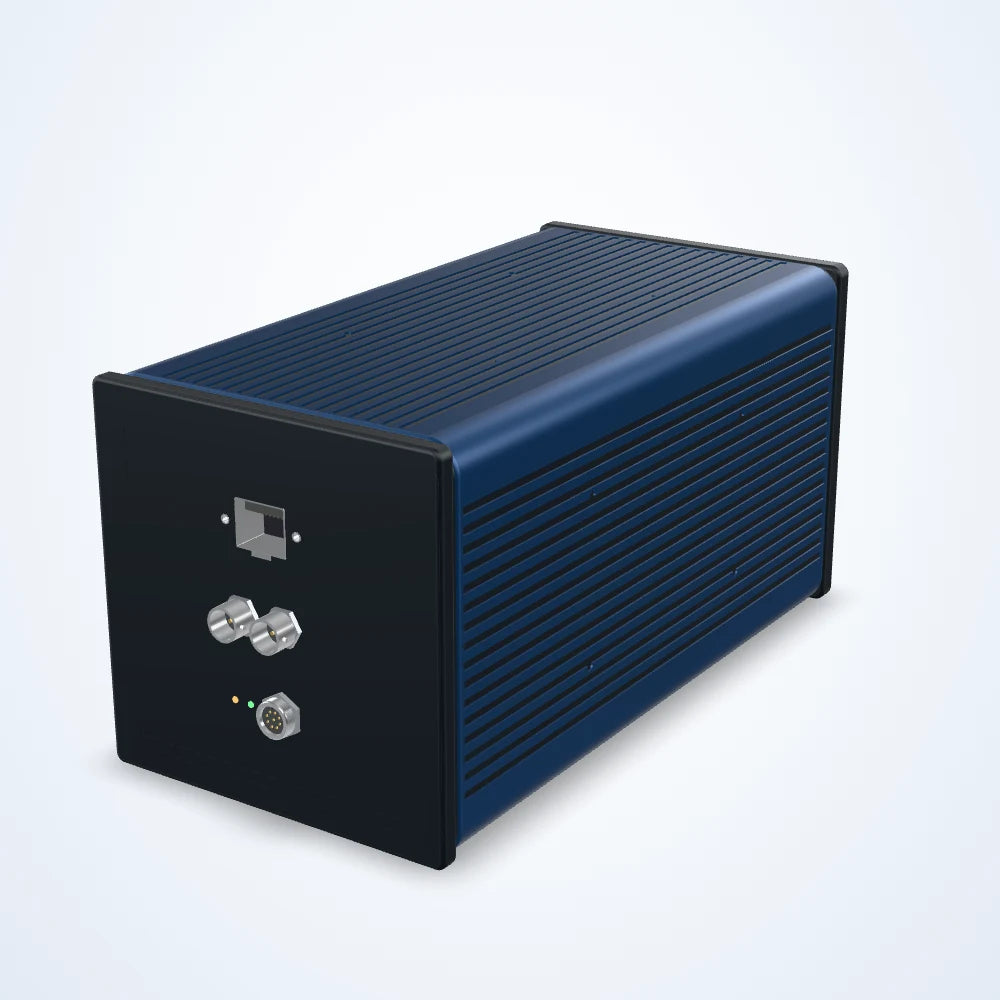

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
5.2 MP 10GigE high-speed camera, global shutter, 2000 fps (LS-CMR-0303)
Model LS-CMR-0303
- Resolution2560×2016
- Interface10 GigE, Adaptive GigE
- Speed2000 fps
- Pixel size9 μm
$36,400.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
22.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
5.2 MP high-speed camera for inspection, measurement and guidance on the production line. 2560 x 2016 pixels of 9 μm; up to 2000 frames per second; global shutter; 10GigE interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0303 |
|---|---|
| ROI | Supported |
| Sensitivity | ISO67000(Mono) ; ISO23000(Color) |
| Recording Mode | Start, End, Center, Random, Manual |
| Fan Control | The fan can be turned on and off remotely and can auto adapt to different temperatures |
| 2560¡Á2016 | 2000 fps 4.1 s 8.2 s 16.4 s |
| 2560¡Á1280 | 3000 fps 4.1 s 8.2 s 16.4 s |
| 2560¡Á1024 | 4000 fps 4.1 s 8.2 s 16.4 s |
| 2560¡Á512 | 5600 fps 5.8 s 11.6 s 23.2 s |
| 2560¡Á256 | 9000 fps 7.2 s 14.4 s 28.8 s |
| 2560¡Á128 | 12000 fps 10.8 s 21.6 s 43.2 s |
| 2560¡Á32 | 25000 fps 21 s 42 s 84 s |
Sensor and imaging
| Resolution | 2560×2016 |
|---|---|
| Max. frame rate | 2000 fps |
| Min. exposure time | 1 us |
| Pixel size | 9 μm |
| Shutter | Global shutter |
| Dynamic range | 60 dB |
| Pixel bit depth | 8 bit / 10 bit / 12 bit |
| Gain | ×2 , ×4 , ×8 |
Interfaces and I/O
| Data interface | 10 GigE, Adaptive GigE |
|---|---|
| Digital I/O | Input: Trigger (TTL/switch) signal, sync signal, ready signal, event signal, IRIGB code signal. Output: Trigger (TTL/switch) signal, sync signal, ready signal, in-exposure signal, in-record signal |
Environment and compliance
| Operating temperature / humidity | Standard -10–50 °C , below 95% (no condensation); -40–65 °C can be customized |
|---|---|
| Operating temperature | -10~50 °C,below 95% (no condensation);versions with wide temperature range of -35~65 °C can be customized |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Manual, IO, Image |
|---|---|
| Video Signal Output | SDI, Ethernet |
| Power supply | Dual power supply, DC24 V@55 W |
| Power consumption | 55 W |
Mechanical

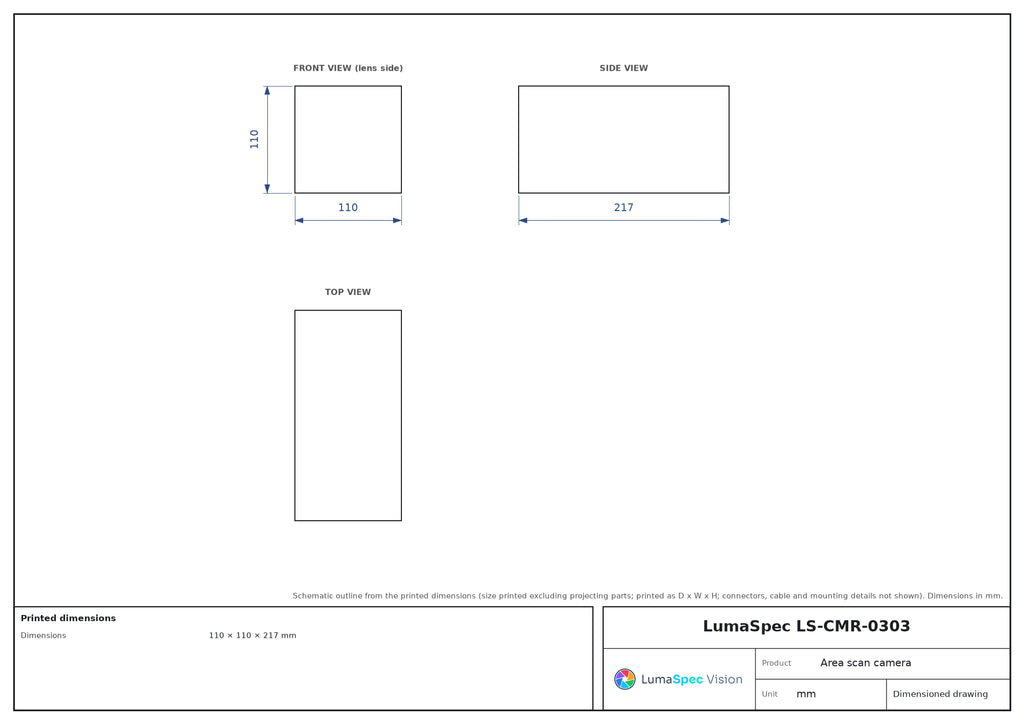

| Dimensions | 217D×110 W×110H, excluding projecting parts (3.8 kg) |
|---|---|
| Lens mount | E connector, which can be transfered to F / C / EF connector |
| Weight | 3.8 kg |
