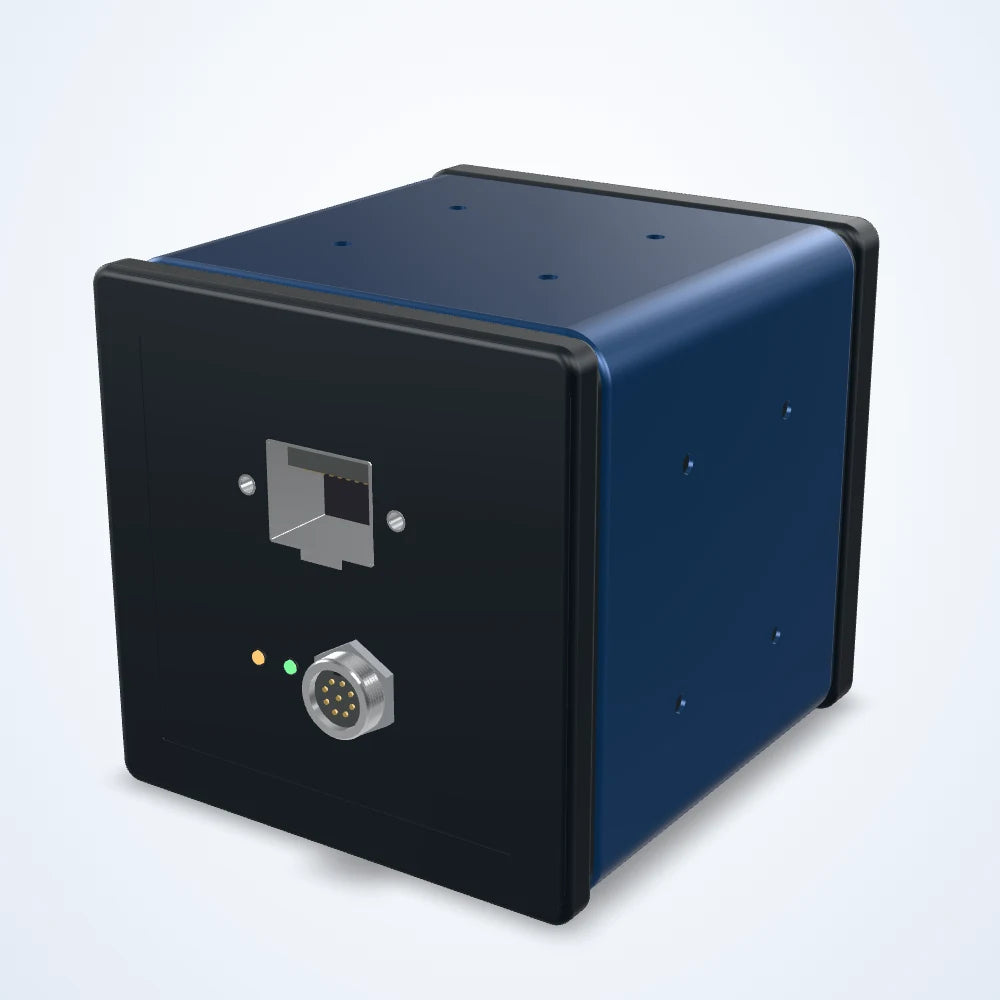

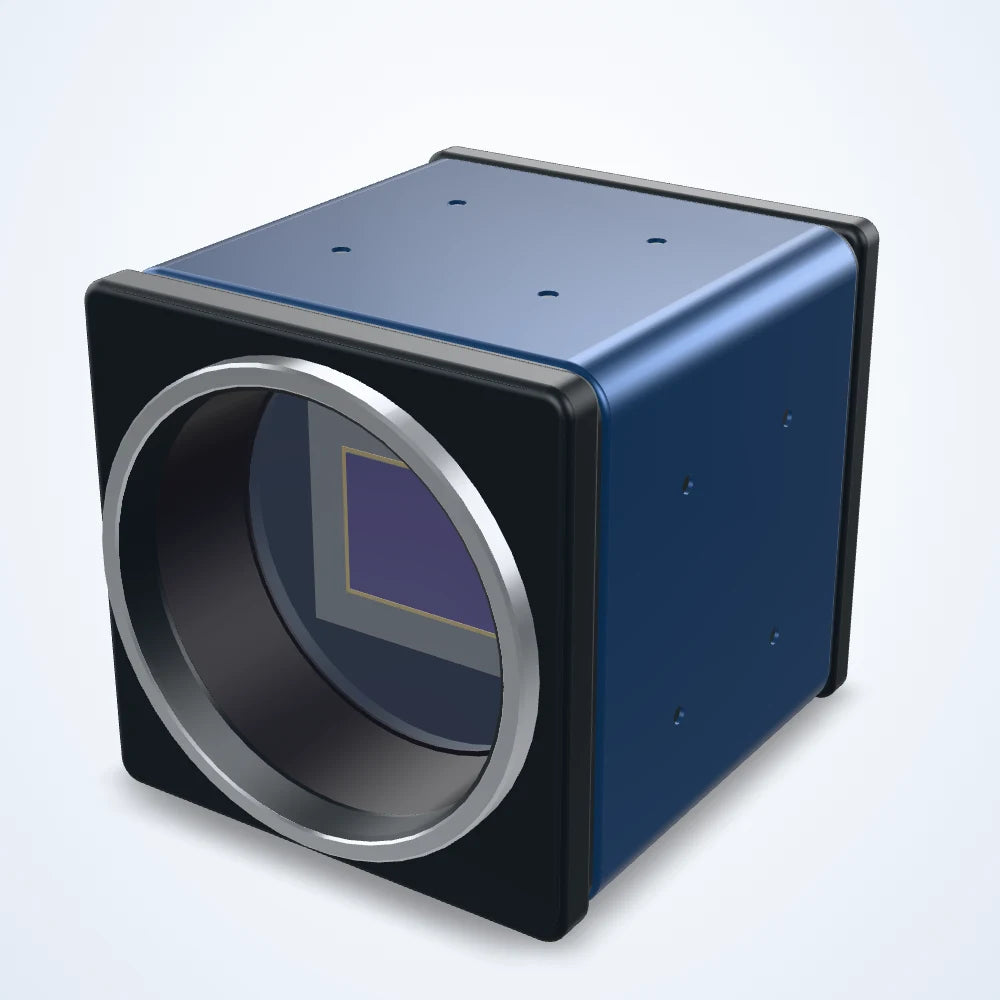

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

26.2 MP 10GigE area scan camera, GMAX0505, 1.1" global shutter, 41 fps, M58 (LS-CMR-0108)

Model LS-CMR-0108-M

  • Resolution5120 px x 5120 px
  • Sensor1.1"
  • Interface10 GigE
  • Speed41 fps
  • Lens mountM58
  • Pixel size2.5 μm x 2.5 μm
$1,980.00

Ships in 3-4 weeks

0.93 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

26.2 MP 10GigE area scan camera, GMAX0505, 1.1" global shutter, 41 fps, M58 (LS-CMR-0108)LS-CMR-0108-M

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 CMOS sensor (1.1"); 5120 x 5120 pixels of 2.5 μm; up to 41 frames per second; global shutter; 10GigE interface; M58 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0108

Sensor and imaging

Resolution5120 px x 5120 px
Pixel size2.5 μm x 2.5 μm
Max. frame rate41 fps
Sensor makeGpixel
Sensor modelGMAX0505
ShutterGlobal Shutter
Sensor size1.1"
Sensor typeCMOS
Dynamic range63 dB
Pixel bit depth12 bit
Exposure time35 us-15s

Interfaces and I/O

Data interface10 GigE
Digital I/OOpto-isolated input x 3,opto-isolated output x 3, RS232 x 1

Environment and compliance

Operating temperature-30 - 50°C(Working), -30 - 80°C(Storage)
CertificationGigE Vision and GenICam

Computing

Operating systemWindows

Electrical

Trigger modeSoft Trigger,Hardware Trigger,Free Run
Power supply24 V
Power consumption24 V@<19.4 W

Mechanical

Dimensions72 mm x 72 mm x 79 mm
Lens mountM58-mount FBL 12
Weight600 g
