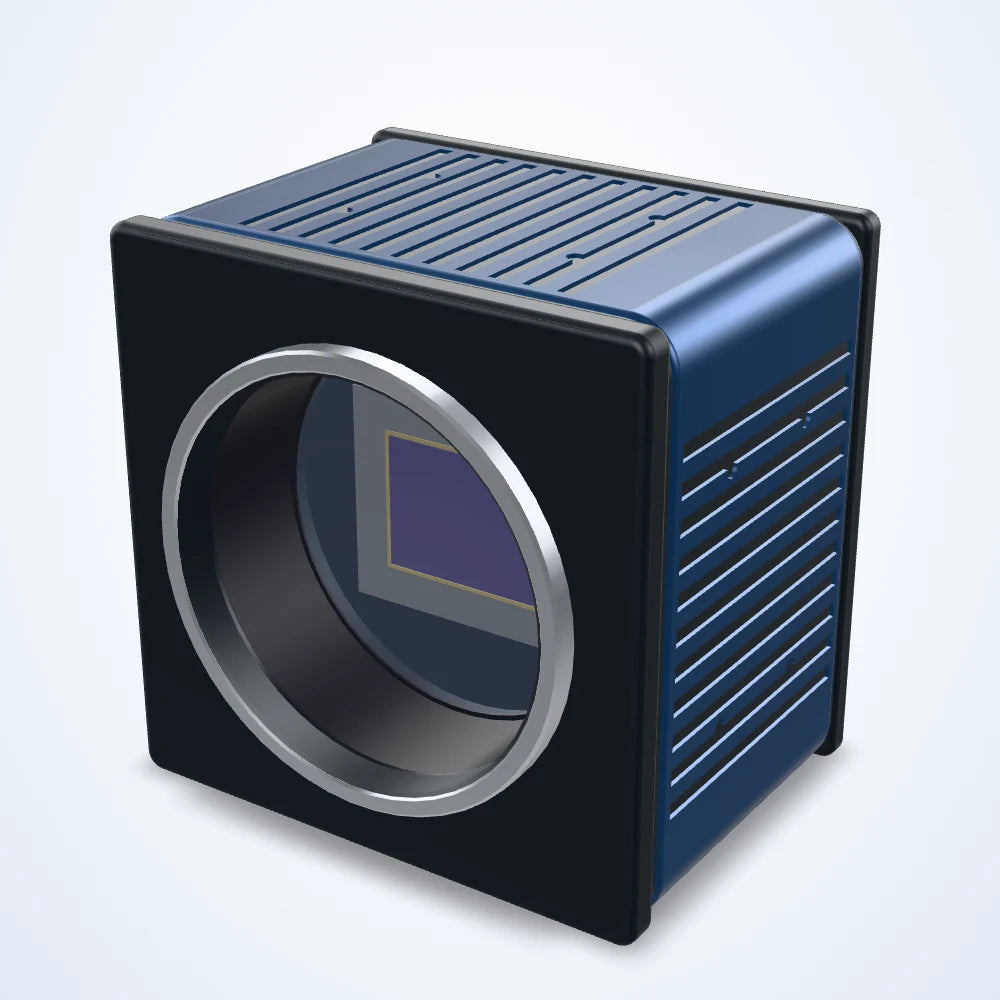

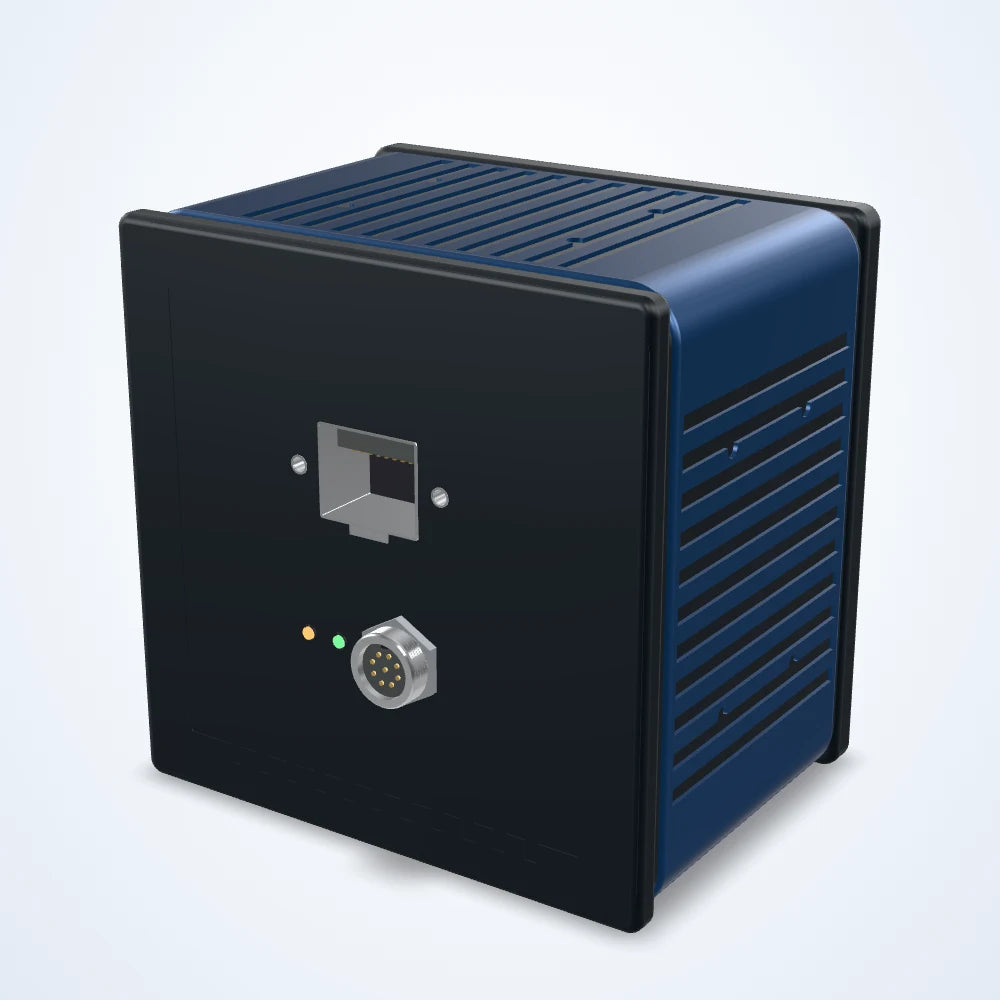

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
24.5 MP 10GigE area scan camera, IMX540, 1.2" global shutter, 35.1 fps, M58 (LS-CMR-0106)
Model LS-CMR-0106
- Resolution5320 × 4600
- Sensor1.2”
- Interface10 GigE
- Speed35.1 fps
- Lens mountM58
- Pixel size2.74 × 2.74 μm
$4,600.00
Ships in 3-4 weeks
4.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
24.5 MP area scan camera for inspection, measurement and guidance on the production line. IMX540 CMOS sensor (1.2"); 5320 x 4600 pixels of 2.74 μm; up to 35.1 frames per second; global shutter; 10GigE interface; M58 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0106 |
|---|
Sensor and imaging
| Resolution | 5320 × 4600 |
|---|---|
| Pixel size | 2.74 × 2.74 μm |
| Max. frame rate | 35.1 fps |
| Sensor make | Sony |
| Sensor model | IMX540 |
| Shutter | Global Shutter |
| Sensor size | 1.2” |
| Sensor type | CMOS |
| Pixel bit depth | 8 bit / 12 bit |
| Dynamic range | 71 dB |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Exposure time | UltraShort exposure mode: 1 μs to 7 μs Standard exposure mode: 8 μs to 10s |
| SNR | 40.0 dB |
Interfaces and I/O
| Data interface | 10 GigE |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, bi-directional custom non-isolated I/O x 1,RS232 x 1 |
Environment and compliance
| Operating temperature | -30~70 °C (Storage), 0~50°C (Working) |
|---|---|
| Certification | GigE Vision and GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Via hardware trigger, software trigger or free run mode |
|---|---|
| Power supply | DC 9 - 24 V |
| Power consumption | 12 V @10 W |
Mechanical
| Dimensions | M58/C-Mount: 84 × 84 × 62.5 mm |
|---|---|
| Lens mount | M58 |
| Mounting holes | 4-M4; 2-M2 |
| Shipping weight | 4.00 kg |
