2.1 MP 10GigE area scan camera, global shutter, 2000 fps

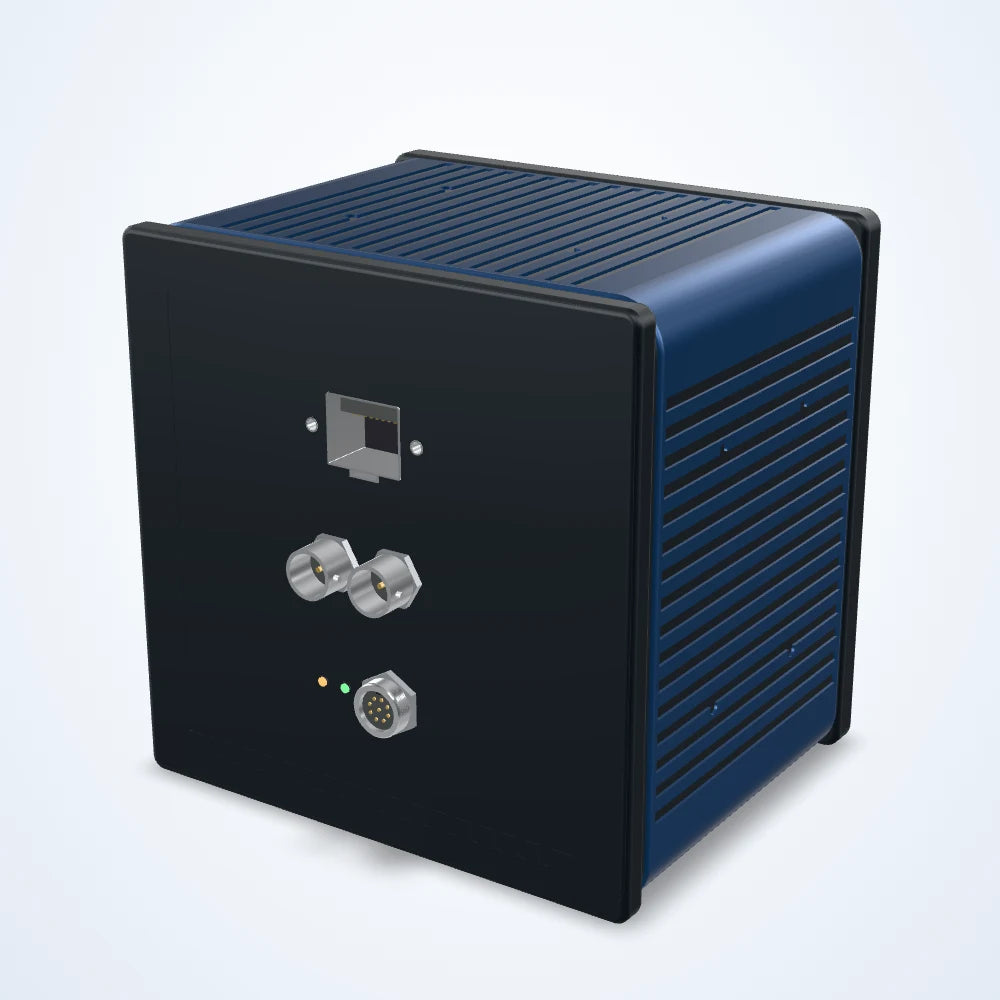

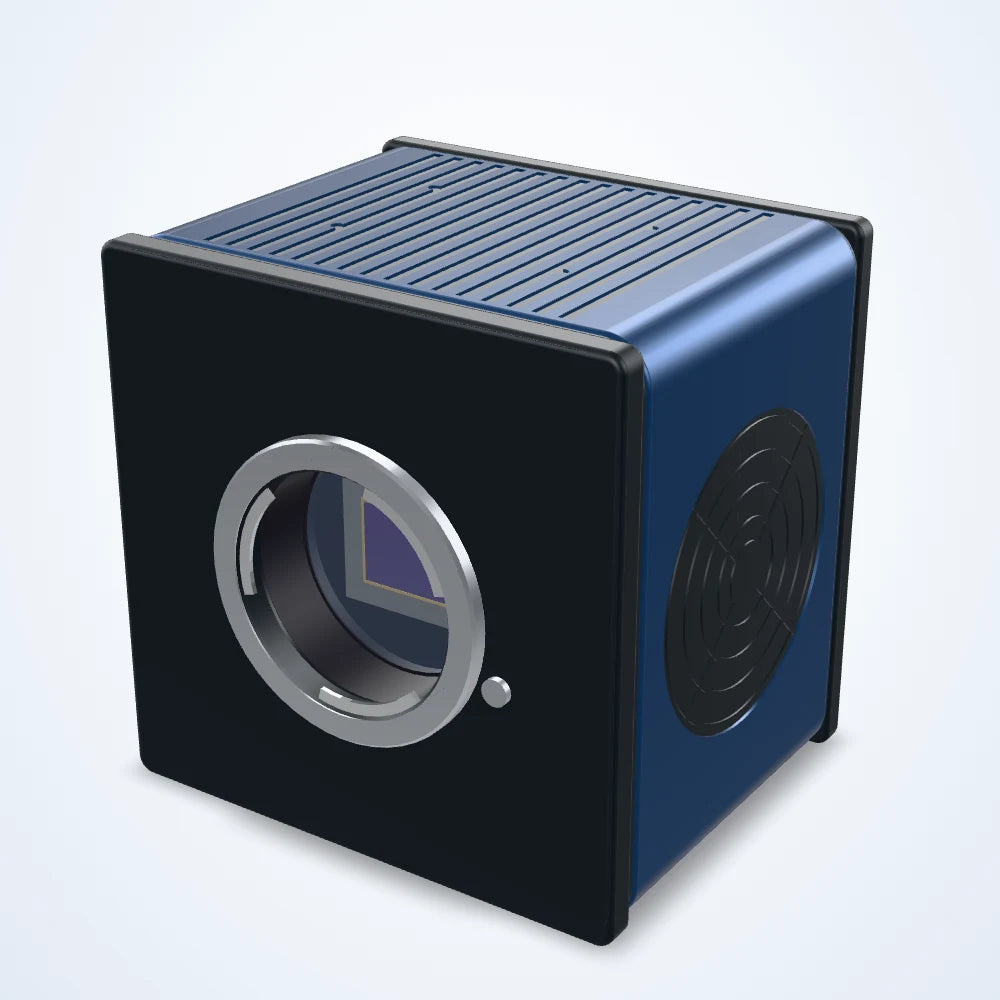

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

2.1 MP 10GigE area scan camera, global shutter, 2000 fps (LS-CMR-0102)

Model LS-CMR-0102-M

Resolution1920×1080
Interface10 GigE, Adaptive GigE
Speed2000 fps
Pixel size7.8 μm

$26,300.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

2.49 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

2.1 MP area scan camera for inspection, measurement and guidance on the production line. 1920 x 1080 pixels of 7.8 μm; up to 2000 frames per second; global shutter; 10GigE interface; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0102
Recording Mode	Start, End, Center, Random, Manual
Fan Control	The fan can be turned on and off remotely and can auto adapt to different temperatures

Sensor and imaging

Resolution	1920×1080
Max. frame rate	2000 fps
Min. exposure time	100ns
Pixel size	7.8 μm
Shutter	Global shutter
Dynamic range	60 dB
Pixel bit depth	8 / 10 / 12 bits
Frame rate at 1920 × 1080	2000 fps
Frame rate at 1920 × 796	3000 fps
Frame rate at 1920 × 512	4000 fps
Frame rate at 1920 × 256	8000 fps
Frame rate at 1920 × 128	16000 fps
Frame rate at 1920 × 8	200000 fps

Interfaces and I/O

Data interface	10 GigE, Adaptive GigE
Digital I/O	Input: Trigger (TTL/switch) signal, sync signal, ready signal, event signal, IRIGB. Output: Trigger signal, sync signal, ready signal

Environment and compliance

Operating temperature	Standard -10~50 °C , below 95% (no condensation); -40–65 °C can be customized

Computing

Operating system	Windows

Electrical

Video Signal Output	Ethernet
Trigger mode	Manual, IO, Image
Power supply	DC24 V@<30 W

Mechanical

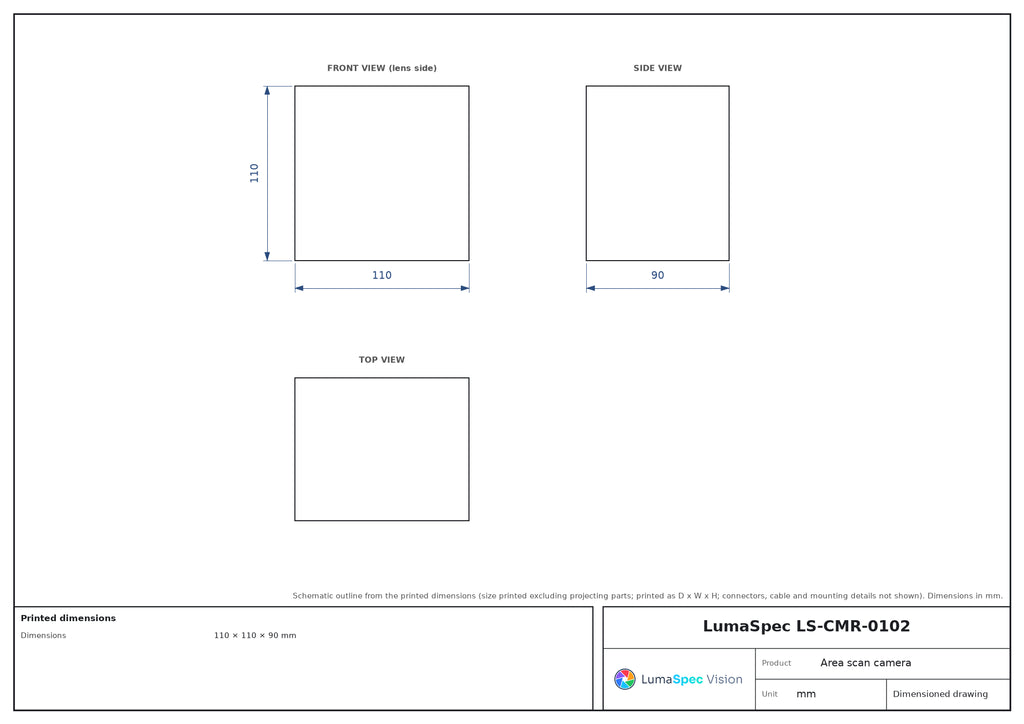

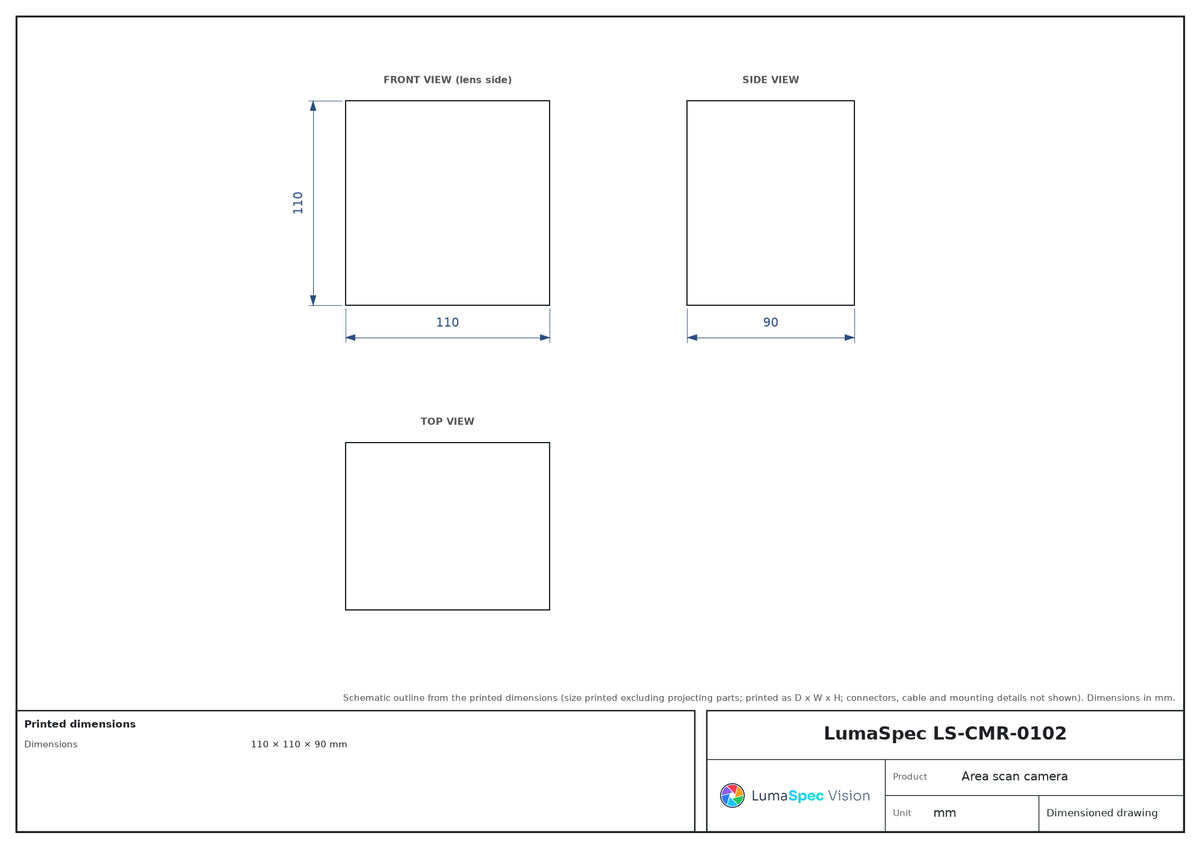

Dimensions	90D×110 W×110H, excluding projecting parts
Lens mount	E connector, which can be transfered to F/ C/EF connector
Weight	<1.8 kg
