Flat Backlight, 50 x 30 mm, Red (LS-BKL-1444)
Model LS-BKL-1444
- ColourRed
- Emitting area50 mm × 30 mm
- Size82 mm × 43 mm × 18 mm
- Voltage24 VDC
- Power2.4 W
- Wavelength625 nm
$209.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight, 50 x 30 mm, Red. Adopts high-density array LED design, and provides excellent lighting uniformity. Provides side mounting lugs to achieve flexible installation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1444 |
|---|---|
| Cooling mode | Natural cooling |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | Red |
|---|---|
| Center illuminance/irradiance | ≥ 1000 lux@100 mm |
| Wavelength | 625 nm |
| Emitting area dimension | 50 mm × 30 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 2.4 W |
|---|---|
| Input voltage | 24 VDC |
Mechanical

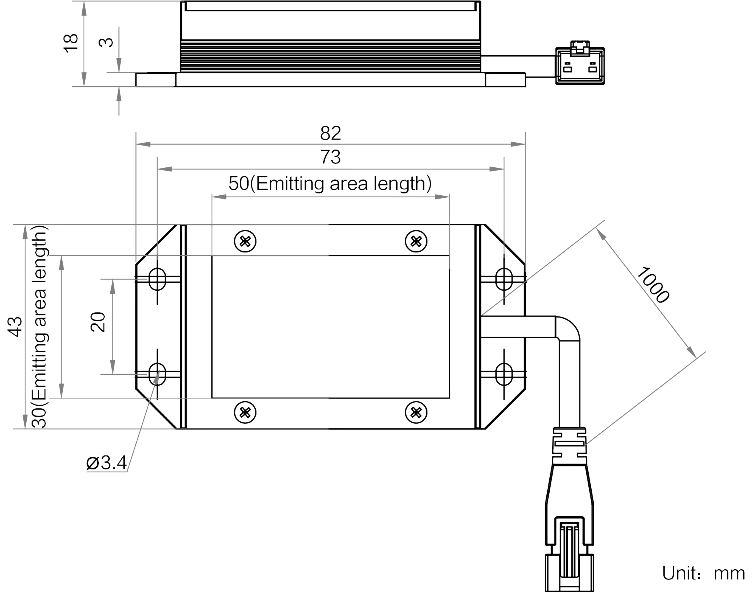

| Dimension | 82 mm × 43 mm × 18 mm |
|---|---|
| Weight | 0.1 kg |
| Shipping weight (estimated) | 0.24 kg |
