Flat Backlight, 30 x 30 mm, White (LS-BKL-1442)
Model LS-BKL-1442
- ColourWhite
- Emitting area30 mm × 30 mm
- Size62 mm × 43 mm × 18 mm
- Voltage24 VDC
- Power2.3 W
$199.00
Ships in 2-3 weeks
0.23 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight, 30 x 30 mm, White. Adopts high-density array LED design, and provides excellent lighting uniformity. Provides side mounting lugs to achieve flexible installation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1442 |
|---|---|
| Cooling mode | Natural cooling |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | White |
|---|---|
| Center illuminance/irradiance | ≥ 2700 lux@100 mm |
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 30 mm × 30 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 2.3 W |
|---|---|
| Input voltage | 24 VDC |

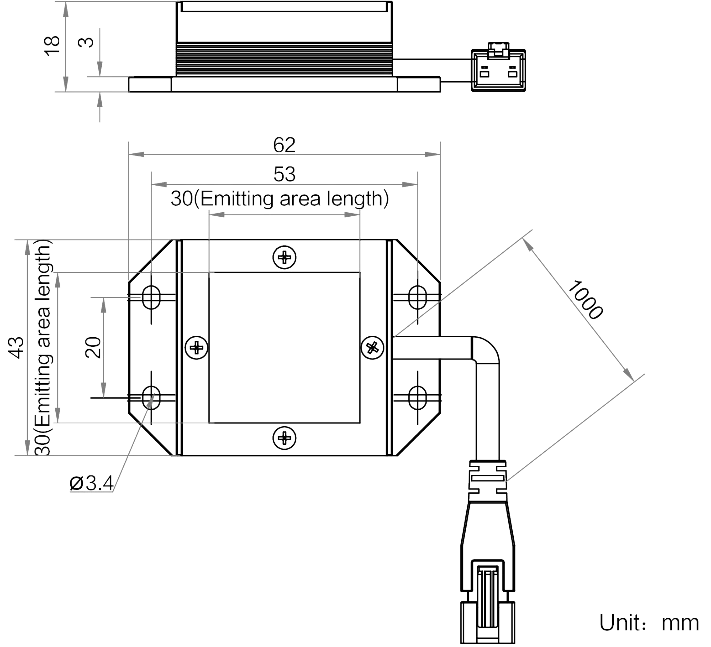

Mechanical
| Dimension | 62 mm × 43 mm × 18 mm |
|---|---|
| Weight | 0.09 kg |
| Shipping weight (estimated) | 0.23 kg |
