Side backlight source (LS-BKL-S114), no opening
  • Side backlight source (LS-BKL-S114), no opening

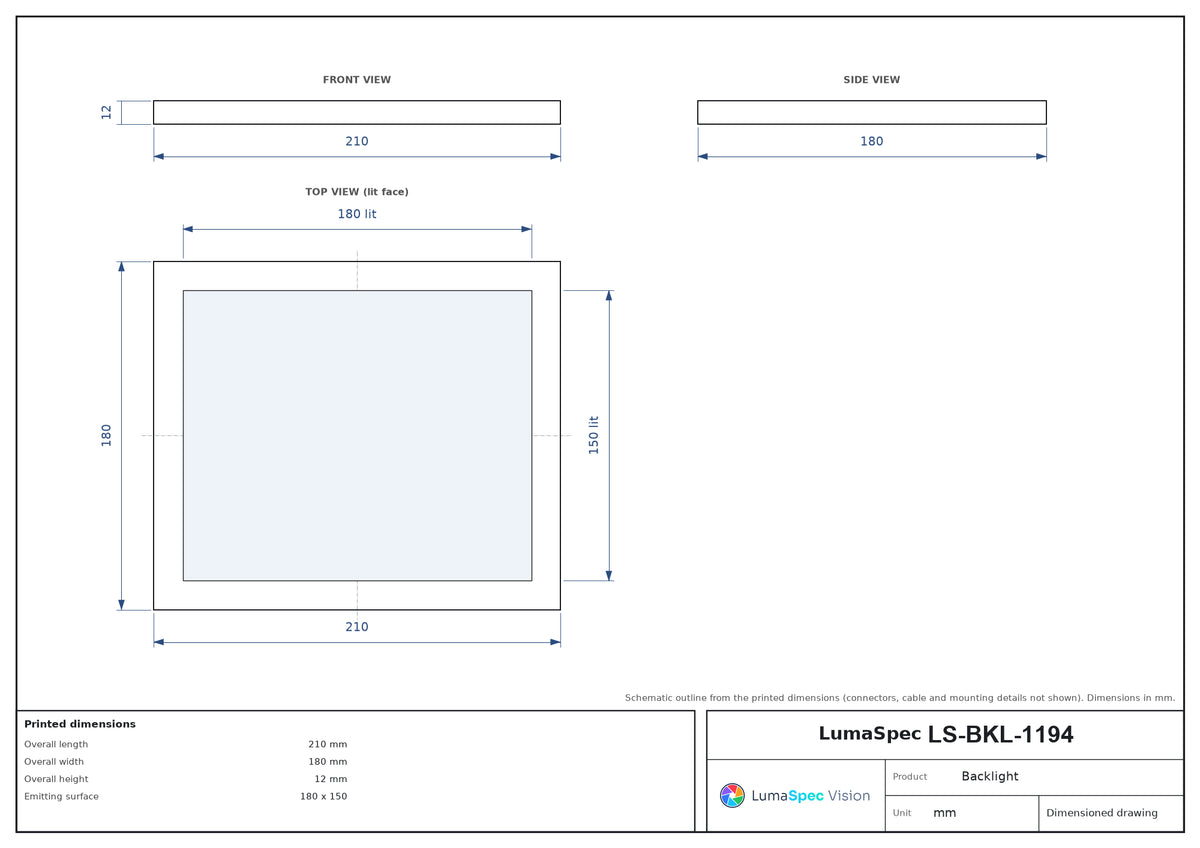

  • LS-BKL-1194 dimensions (mm)

Representative photo of this series

Backlights

180 x 150 mm side backlight source, no opening (LS-BKL-1194)

Model LS-BKL-1194-R

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area180 x 150 mm
  • Voltage24 V DC (12 V on request)
  • TypeEdge-lit / ultra-thin
$429.00

Ships in 2-3 weeks

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

180 x 150 mm side backlight source, no opening (LS-BKL-1194)LS-BKL-1194-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Side-lit backlight with large-area uniform luminescence and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1194

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface (mm)180 x 150

Electrical

Voltage24 V DC (12 V on request)
Power red (W)5.65
Power white/blue/green (W)4.44

Mechanical

Overall width (mm)180
Overall length (mm)210
Overall height (mm)12
Shipping weight0.65 kg

Other models in the Side backlight source (LS-BKL-S114), no opening series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1190 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $169.00 Ships in 2-3 weeks View
LS-BKL-1191 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $219.00 Ships in 2-3 weeks View
LS-BKL-1193 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $319.00 Ships in 2-3 weeks View
LS-BKL-1192 400 x 100 mm $549.00 Ships in 2-3 weeks View
LS-BKL-1195 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $589.00 Ships in 2-3 weeks View
LS-BKL-1196 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $859.00 Ships in 2-3 weeks View
LS-BKL-1197 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $2,569.00 Ships in 2-3 weeks View
LS-BKL-1198 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $2,799.00 Ships in 2-3 weeks View
LS-BKL-1199 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $4,549.00 Ships in 2-3 weeks View
