Side backlight source (LS-BKL-S114), no opening
  • Side backlight source (LS-BKL-S114), no opening

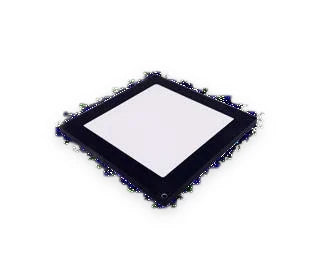

Representative photo of this series

Backlights

130 mm side backlight source, no opening (LS-BKL-1191)

Model LS-BKL-1191

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeEdge-lit / ultra-thin
  • Cable length500 mm
$219.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

130 mm side backlight source, no opening (LS-BKL-1191)LS-BKL-1191

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Side-lit backlight with large-area uniform luminescence and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1191

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)9.12
Power white/blue/green (W)11.4

Mechanical

Overall length / width (mm)130
Overall height (mm)7
Mounting4 x dia. 3 through holes
Shipping weight0.30 kg

Other models in the Side backlight source (LS-BKL-S114), no opening series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1190 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $169.00 Ships in 2-3 weeks View
LS-BKL-1193 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $319.00 Ships in 2-3 weeks View
LS-BKL-1194 180 x 150 mm $429.00 Ships in 2-3 weeks View
LS-BKL-1192 400 x 100 mm $549.00 Ships in 2-3 weeks View
LS-BKL-1195 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $589.00 Ships in 2-3 weeks View
LS-BKL-1196 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $859.00 Ships in 2-3 weeks View
LS-BKL-1197 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $2,569.00 Ships in 2-3 weeks View
LS-BKL-1198 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $2,799.00 Ships in 2-3 weeks View
LS-BKL-1199 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $4,549.00 Ships in 2-3 weeks View
