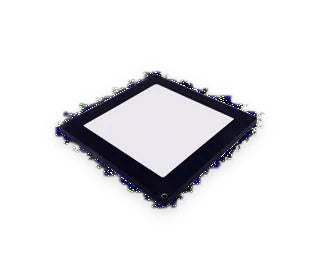

Representative photo of this series
Backlights
920 x 520 mm side backlight source, no opening (LS-BKL-1197)
Model LS-BKL-1197
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- TypeEdge-lit / ultra-thin
- Cable length500 mm
$2,569.00
Ships in 2-3 weeks
5.9 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Side-lit backlight with large-area uniform luminescence and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1197 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 51.07 |
| Power white/blue/green (W) | 63.84 |

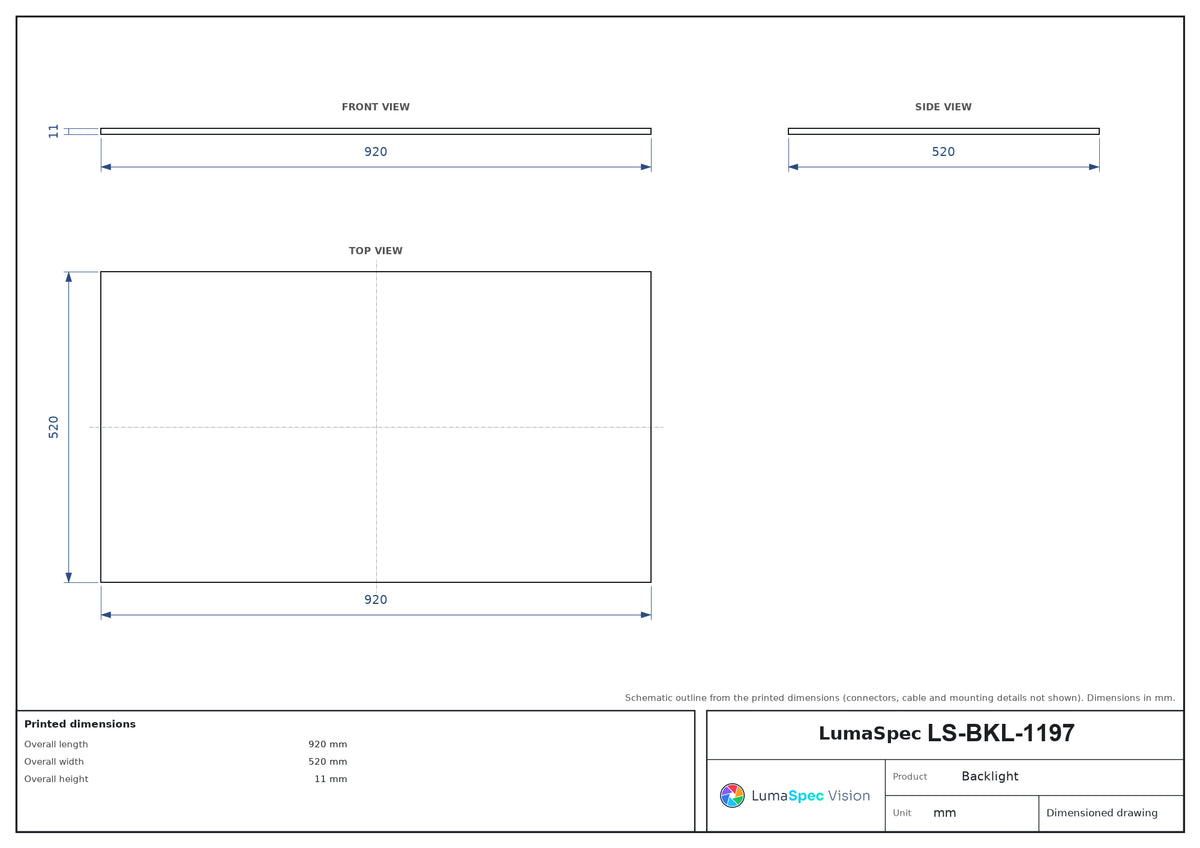

Mechanical
| Overall length (mm) | 920 |
|---|---|
| Overall width (mm) | 520 |
| Overall height (mm) | 11 |
| Mounting | 4 x M4 threaded holes |
| Shipping weight | 5.90 kg |
