High power backlight (LS-BKL-S90)
  • High power backlight (LS-BKL-S90)

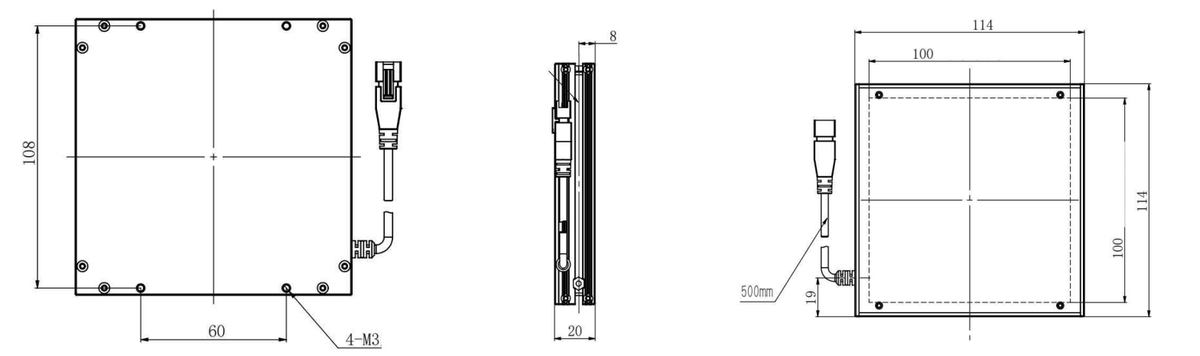

  • LS-BKL-0847 dimensions (mm)

Representative photo of this series

Backlights

100 x 100 mm High power backlight (LS-BKL-0850)

Model LS-BKL-0850

  • ColourRed, Blue, White
  • Voltage24 V
  • TypeHigh power / strobe
  • LED typeSMD
$279.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

100 x 100 mm High power backlight (LS-BKL-0850)LS-BKL-0850

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High power backlight (3FL) with SMD LEDs in luminous sizes from 29 x 29 up to 1000 x 1000 mm; SM3 connector up to 450 x 300 and 4-pin WS16/WS20 aviation connectors on large sizes.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0850
Working lifewhite: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality serviceone year product warranty, technical support
Long (mm)130
Wide (mm)110
High (mm)20
RemarksSM3 (1.3 pin) interface

Light

LED typeSMD
Luminous size (mm)100x100
Wavelength red620-630 nm
Wavelength blue460-470 nm
Colour temperature white6000-7500 K

Environment and compliance

Operating environment (indoor)temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)8.4
Power blue/white (W)10.0

Mechanical

Installation methodM3 nut slot and bottom side installation
Wire length500 mm (drawing)
Shipping weight0.50 kg

Other models in the High power backlight (LS-BKL-S90) series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-0844 29 x 29 mm $199.00 Ships in 2-3 weeks View
LS-BKL-0845 50 x 50 mm $209.00 Ships in 2-3 weeks View
LS-BKL-0846 60 x 60 mm $219.00 Ships in 2-3 weeks View
LS-BKL-0847 70 x 70 mm $229.00 Ships in 2-3 weeks View
LS-BKL-0848 80 x 80 mm $249.00 Ships in 2-3 weeks View
LS-BKL-0849 90 x 90 mm $259.00 Ships in 2-3 weeks View
LS-BKL-0851 120 x 120 mm $309.00 Ships in 2-3 weeks View
LS-BKL-0854 200 x 100 mm $369.00 Ships in 2-3 weeks View
LS-BKL-0852 150 x 150 mm $389.00 Ships in 2-3 weeks View
LS-BKL-0855 200 x 150 mm $459.00 Ships in 2-3 weeks View
LS-BKL-0853 180 x 180 mm $479.00 Ships in 2-3 weeks View
LS-BKL-0856 200 x 200 mm $549.00 Ships in 2-3 weeks View
LS-BKL-0859 300 x 150 mm $599.00 Ships in 2-3 weeks View
LS-BKL-0857 250 x 200 mm $639.00 Ships in 2-3 weeks View
LS-BKL-0860 300 x 200 mm $719.00 Ships in 2-3 weeks View
LS-BKL-0858 250 x 250 mm $739.00 Ships in 2-3 weeks View
LS-BKL-0864 400 x 200 mm $889.00 Ships in 2-3 weeks View
LS-BKL-0862 350 x 250 mm $949.00 Ships in 2-3 weeks View
LS-BKL-0861 300 x 300 mm $959.00 Ships in 2-3 weeks View
LS-BKL-0869 500 x 300 mm $1,039.00 Ships in 2-3 weeks View
LS-BKL-0866 400 x 400 mm $1,049.00 Ships in 2-3 weeks View
LS-BKL-0872 600 x 300 mm $1,169.00 Ships in 2-3 weeks View
LS-BKL-0865 400 x 300 mm $1,199.00 Ships in 2-3 weeks View
LS-BKL-0863 350 x 350 mm $1,209.00 Ships in 2-3 weeks View
