Backlights
300 x 300 mm High power backlight (LS-BKL-0861)
Model LS-BKL-0861
- ColourRed, Blue, White
- Voltage24 V
- TypeHigh power / strobe
- LED typeSMD
$959.00
In stock - ships the same business day (5 available, order by 2 PM ET)
2.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High power backlight (3FL) with SMD LEDs in luminous sizes from 29 x 29 up to 1000 x 1000 mm; SM3 connector up to 450 x 300 and 4-pin WS16/WS20 aviation connectors on large sizes.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0861 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |

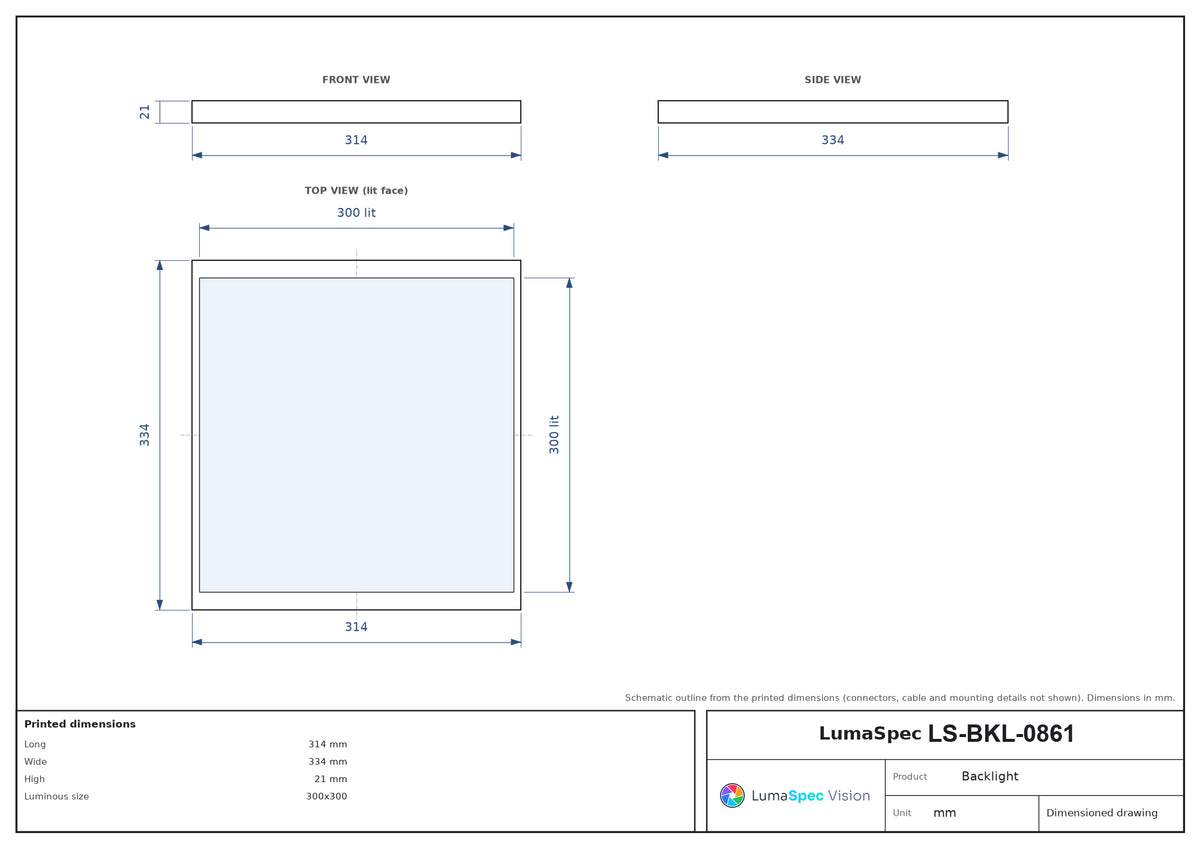

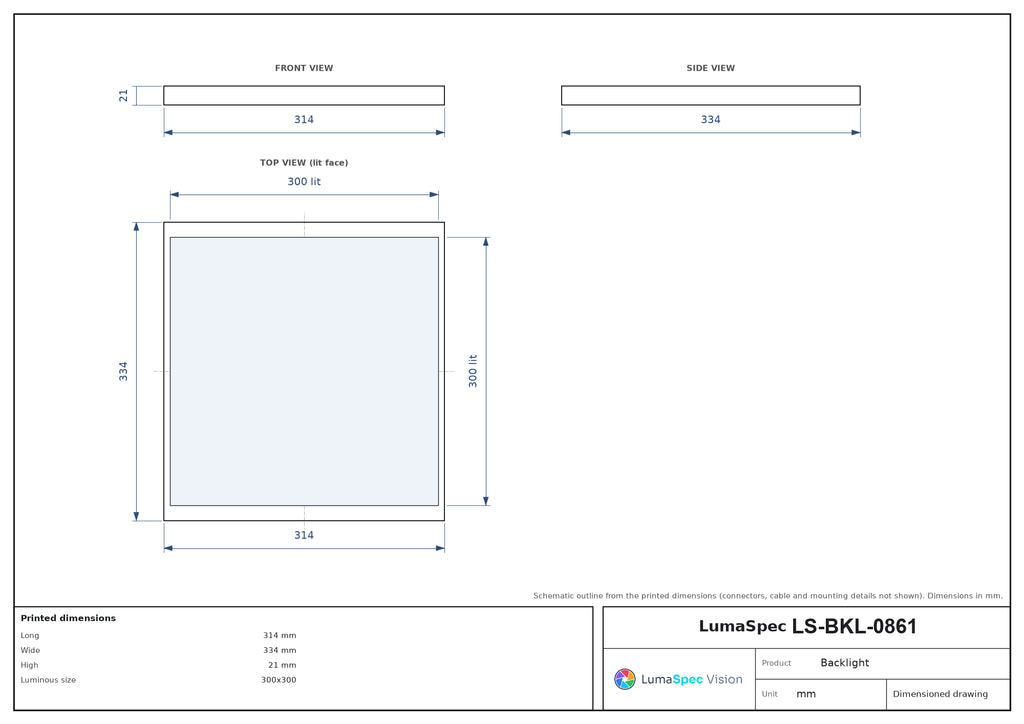

| Long (mm) | 314 |
| Wide (mm) | 334 |
| High (mm) | 21 |
| Remarks | SM3 (1.3 pin) interface |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 300x300 |
| Wavelength red | 620-630 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 69.1 |
| Power blue/white (W) | 69.1 |
Mechanical
| Installation method | M3 nut slot and bottom side installation |
|---|---|
| Wire length | 500 mm (drawing) |
| Shipping weight | 2.55 kg |
