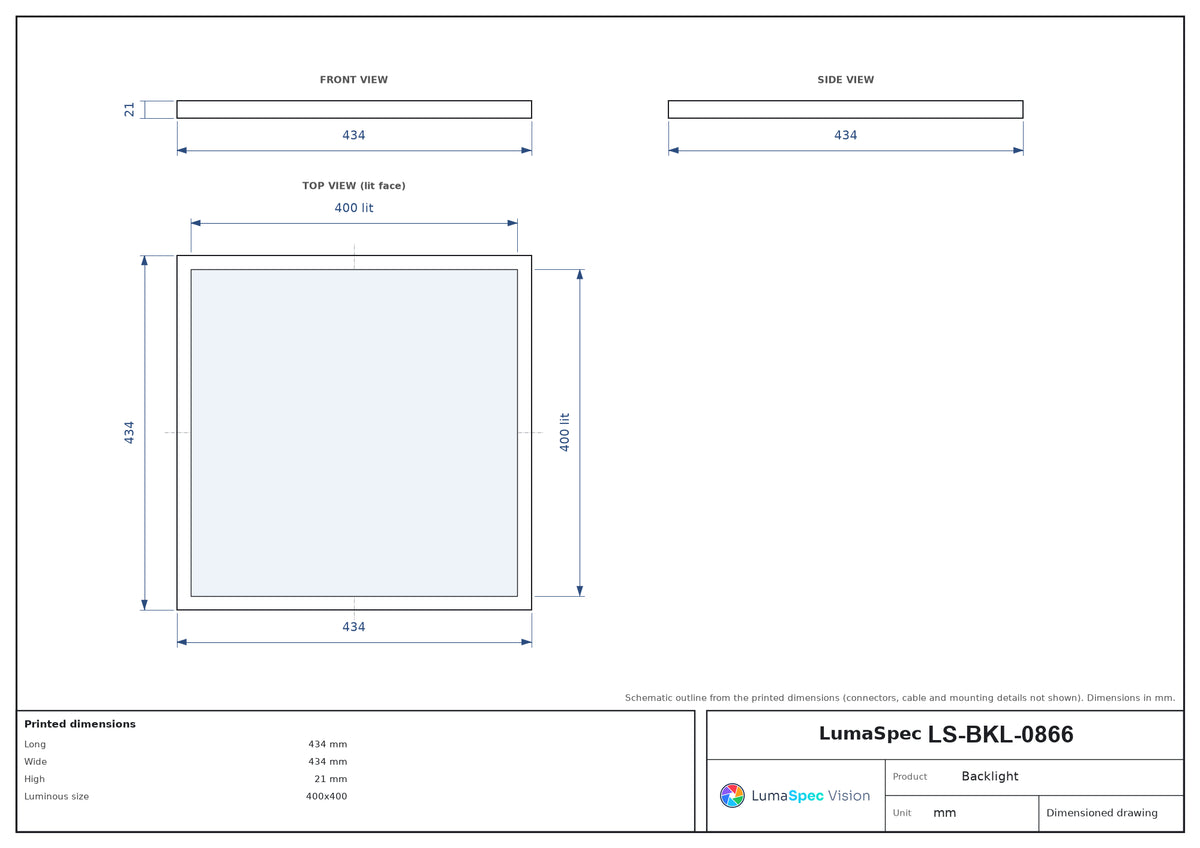

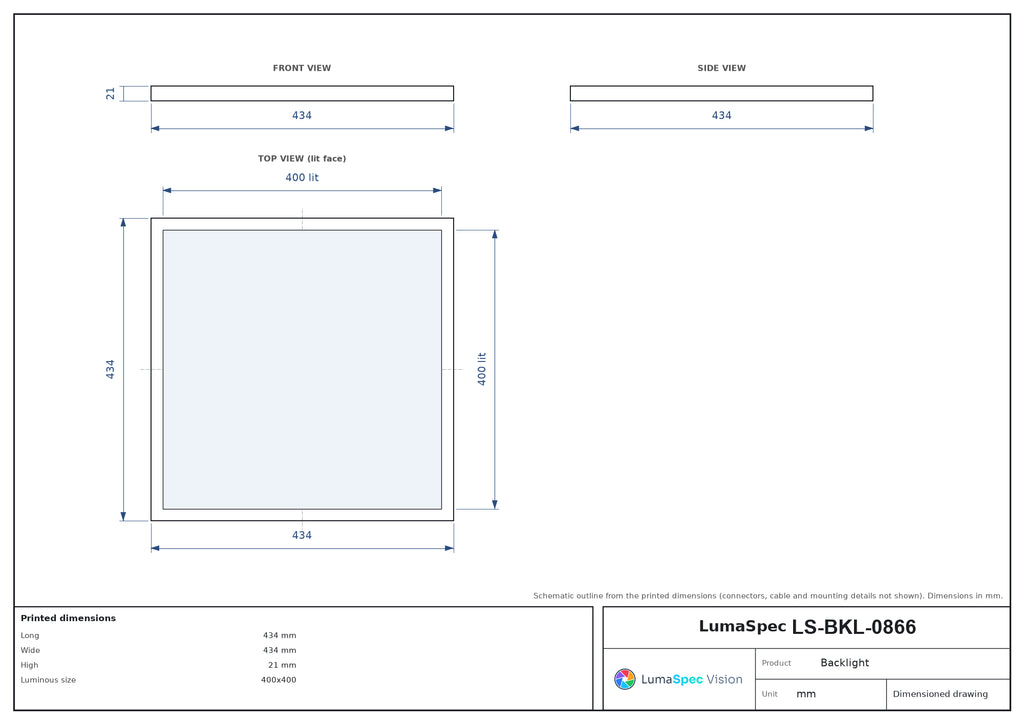

  • LS-BKL-0866 dimensions (mm)

Representative photo of this series

Backlights

400 x 400 mm High power backlight (LS-BKL-0866)

Model LS-BKL-0866

  • ColourRed, Blue, White
  • Voltage24 V
  • TypeHigh power / strobe
  • LED typeSMD
$1,049.00

Ships in 2-3 weeks

4.35 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

400 x 400 mm High power backlight (LS-BKL-0866)LS-BKL-0866

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High power backlight (3FL) with SMD LEDs in luminous sizes from 29 x 29 up to 1000 x 1000 mm; SM3 connector up to 450 x 300 and 4-pin WS16/WS20 aviation connectors on large sizes.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0866
Working lifewhite: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality serviceone year product warranty, technical support
Long (mm)434
Wide (mm)434
High (mm)21
RemarksSM3 (1.3 pin) interface

Light

LED typeSMD
Luminous size (mm)400x400
Wavelength red620-630 nm
Wavelength blue460-470 nm
Colour temperature white6000-7500 K

Environment and compliance

Operating environment (indoor)temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)122.9
Power blue/white (W)122.9

Mechanical

Installation methodM3 nut slot and bottom side installation
Wire length500 mm (drawing)
Shipping weight4.35 kg
