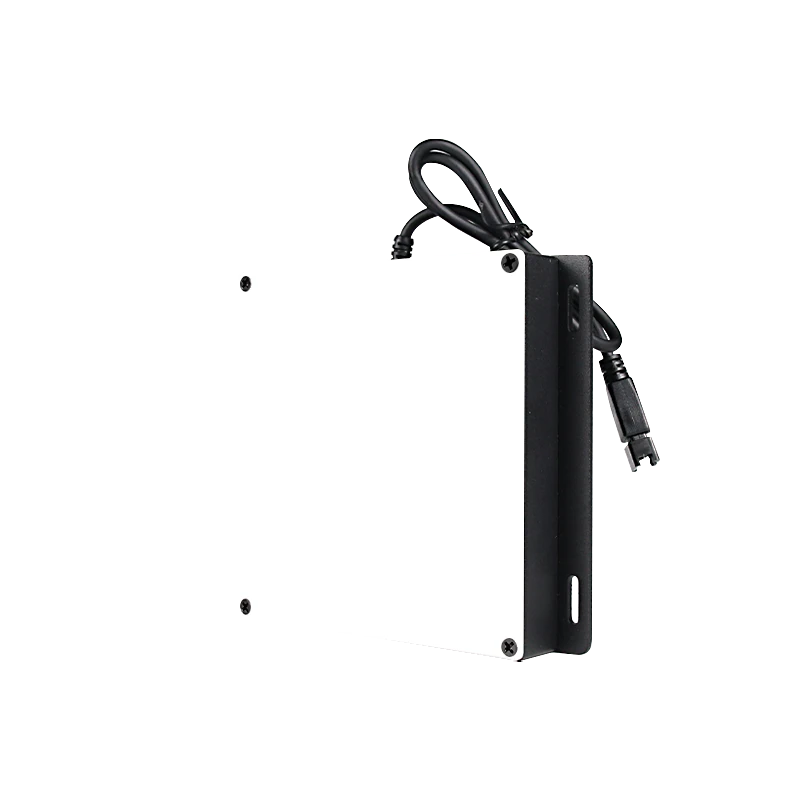

29 x 29 mm High power backlight (LS-BKL-0844)
Model LS-BKL-0844
- ColourRed, Blue, White
- Voltage24 V
- TypeHigh power / strobe
- ConnectorSM3
$199.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High power backlight (LS-BKL-S90) with SMD LEDs in luminous sizes from 29 x 29 up to 1000 x 1000 mm; SM3 connector up to 450 x 300 and 4-pin WS16/WS20 aviation connectors on large sizes.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0844 |
|---|---|
| M3 nut slot | √ |
| Category | High powe backlight |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Naturalair cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
| Long (mm) | 44 |
| Wide (mm) | 33 |
| High (mm) | 14 |
Interfaces and I/O
| Interface | SM3(1.3 pin)interface |
|---|---|
| Cable length | 0.5m |
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 29*29 |
| Color | red/white/blue/green |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 6000-6500K; blue: —; green: — |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 1.1 |
| Power blue/white (W) | 1.7 |

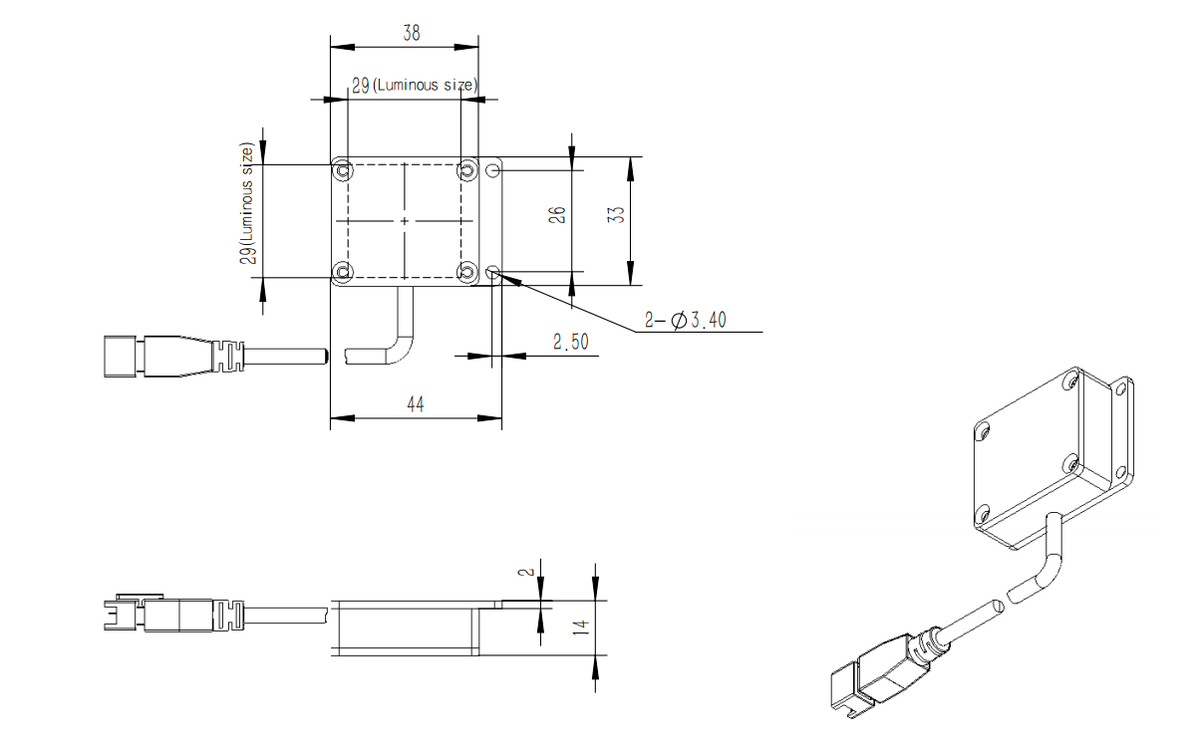

Mechanical
| Installation method | M3 nut slot and bottom side installation |
|---|---|
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| Shipping weight | 0.20 kg |
