Backlight, 77.2 x 24.6 mm lit area (LS-BKL-0015)
  • Backlight, 77.2 x 24.6 mm lit area (LS-BKL-0015)
  • Backlight - view 2

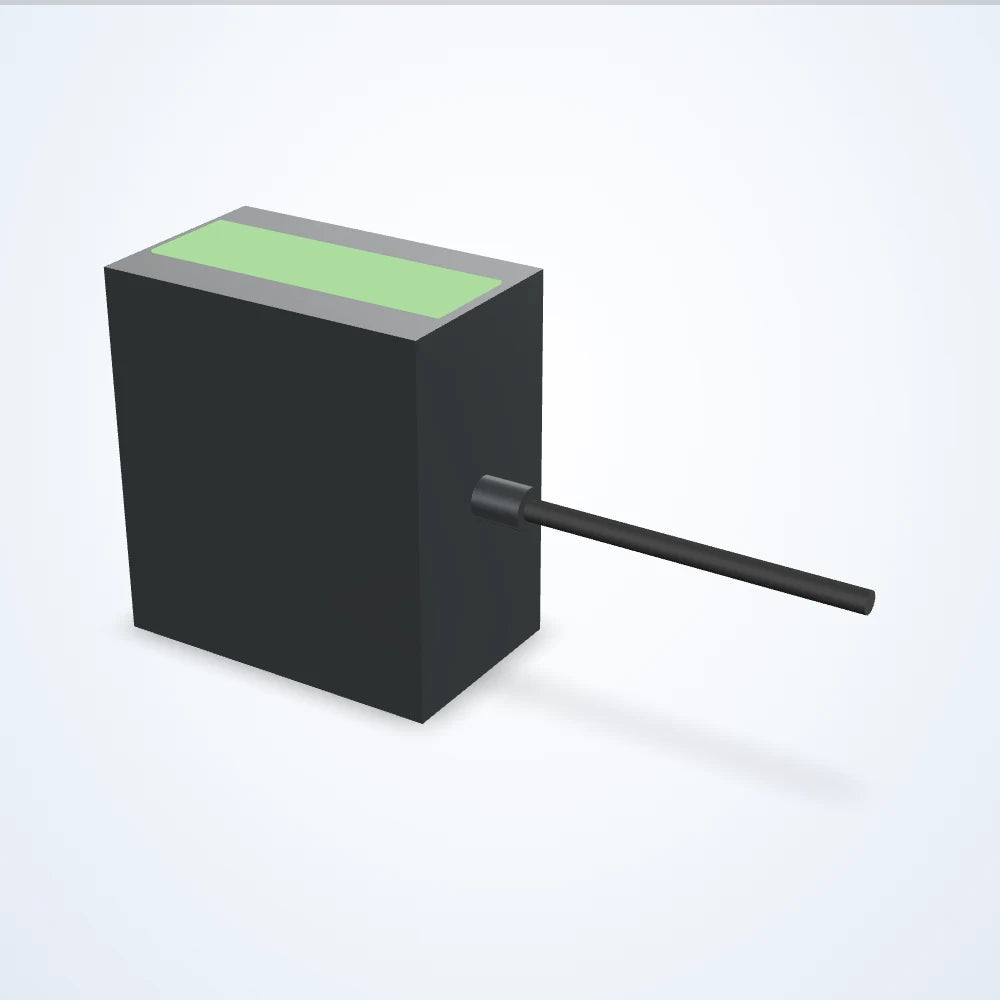

  • Backlight, 77.2 x 24.6 mm lit area (LS-BKL-0015) - view 3
  • Backlight, 77.2 x 24.6 mm lit area (LS-BKL-0015) - view 4

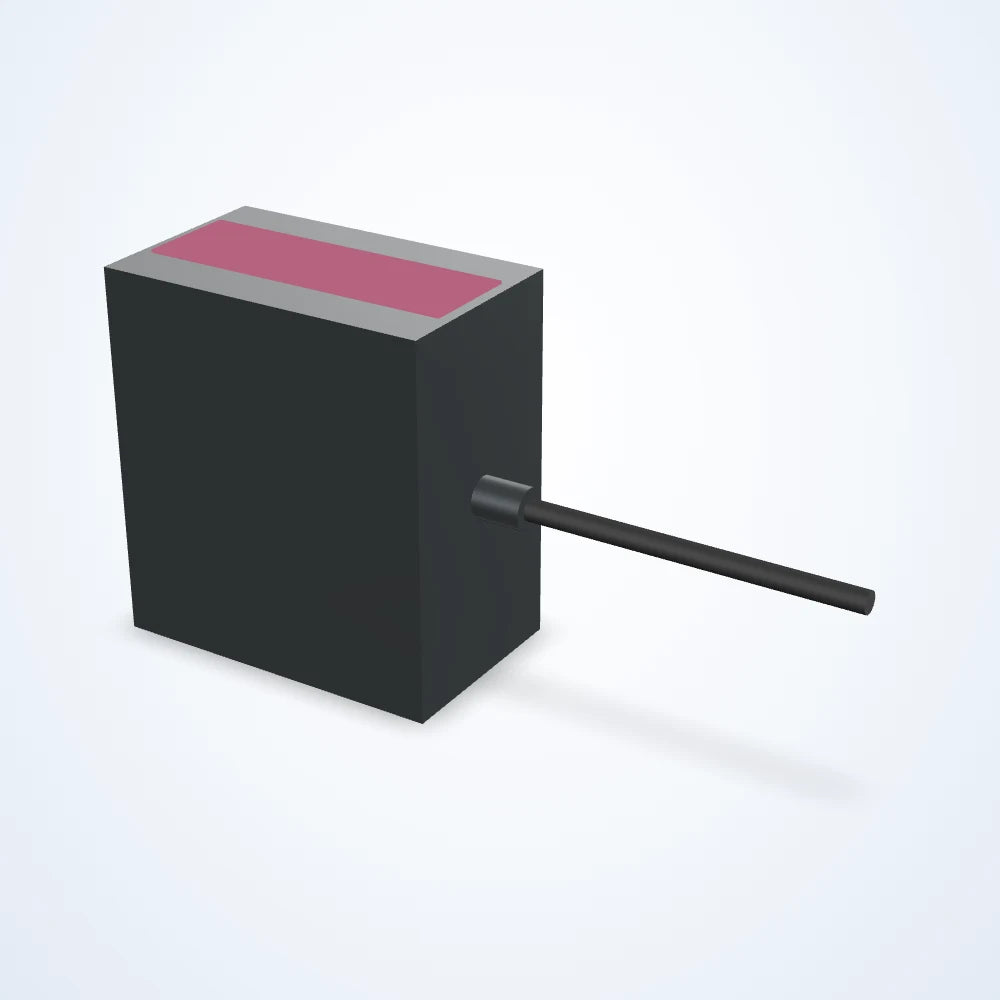

  • Backlight, 77.2 x 24.6 mm lit area (LS-BKL-0015) - view 5
  • Backlight - view 6

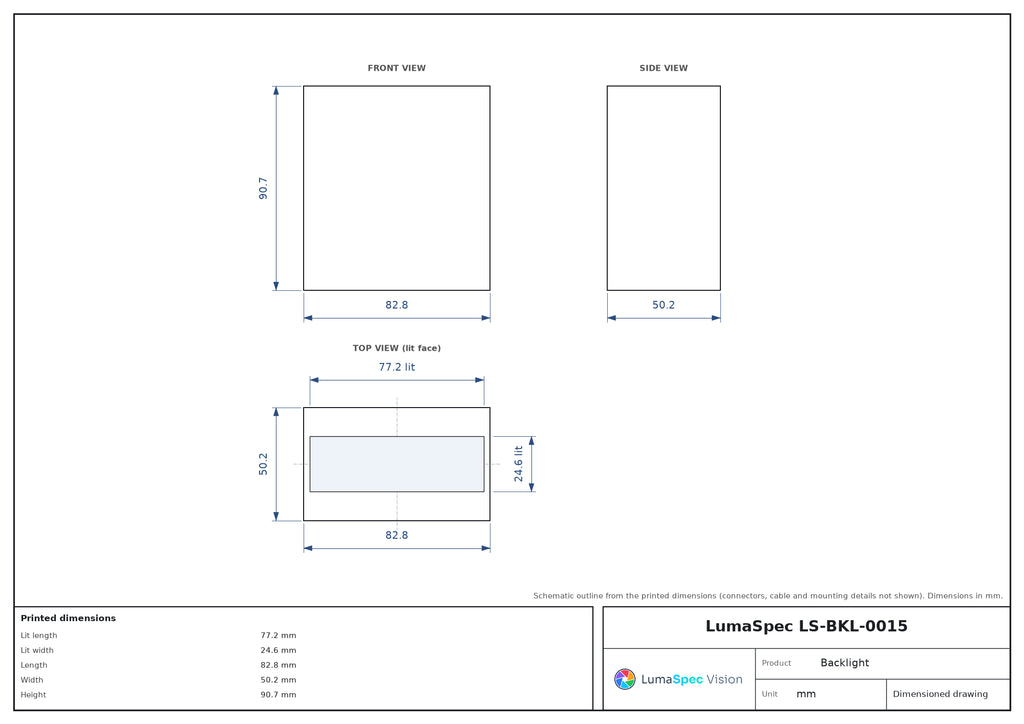

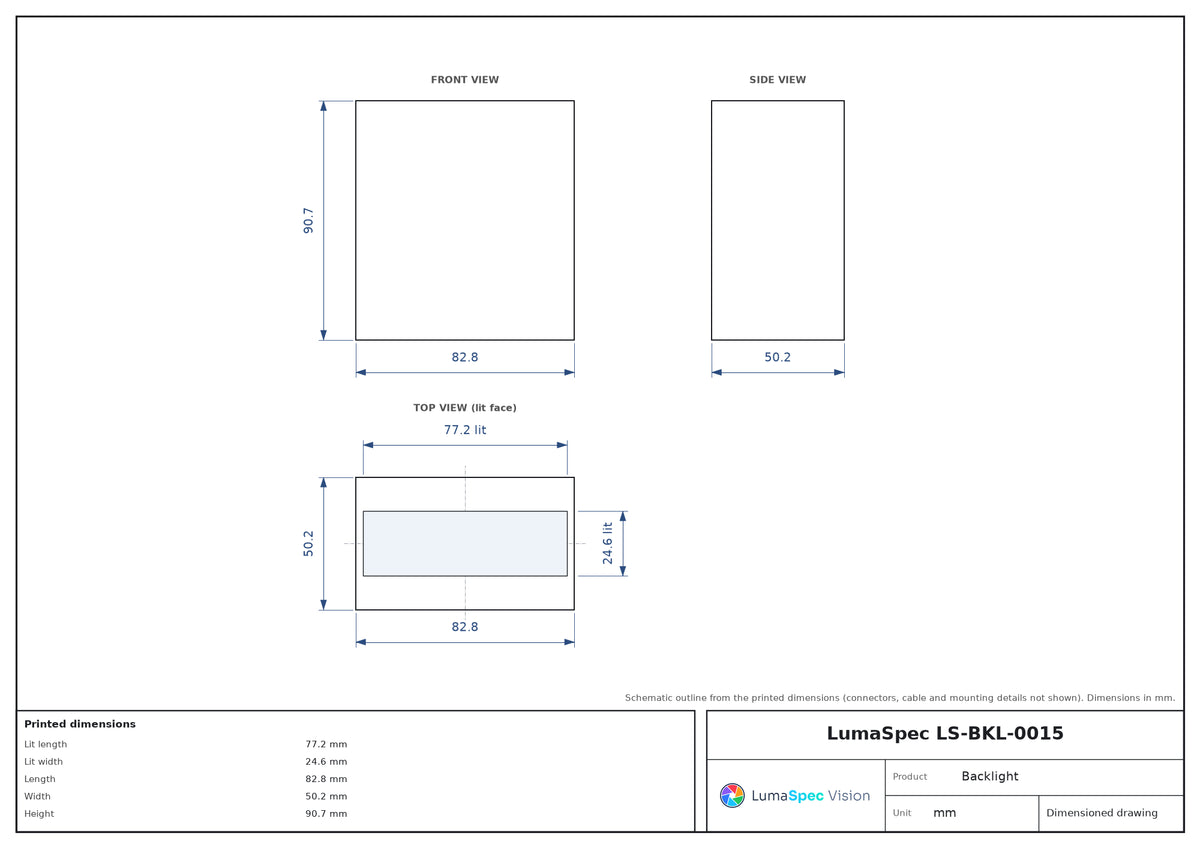

  • LS-BKL-0015 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 77.2 x 24.6 mm lit area (LS-BKL-0015)

Model LS-BKL-0015

  • ColourWhite, Red, Green, Infrared, Blue
  • Voltage24 VDC
  • TypeStandard
  • Wavelength850 nm
from $789.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 5 available

Colour

Configuration LS-BKL-0015-1 $789.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Backlight, 77.2 x 24.6 mm lit area (LS-BKL-0015)LS-BKL-0015

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 77.2 x 24.6 mm; 24 VDC supply; connection: flying leads. Choose colour below (5 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0015
Connection at lightHardwired
Driver includedNo Driver Required
Driver locationNo Driver
Operating modesConstant On
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
IP ratingIP50
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Strobe trigger inputConstant On Only
Maximum constant on current (mA)407
Maximum input power constant on (W)9.8

Mechanical

Lit length (mm)77.2
Lit width (mm)24.6
Length (mm)82.8
Width (mm)50.2
Height (mm)90.7
HousingAluminum
MountingT-Slot Channel

LS-BKL-0015

See this component from every angle.

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.

Explore the visual library
LS-BKL-0015 — Backlights, View 1 Dimension-based 3D

FROM THE PRINTED SPECIFICATIONS

Lit length (mm)
77.2
Lit width (mm)
24.6
Length (mm)
82.8
Width (mm)
50.2

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Backlight series, 90.7 mm high, Flying Leads (S02) series

See all 17 models
