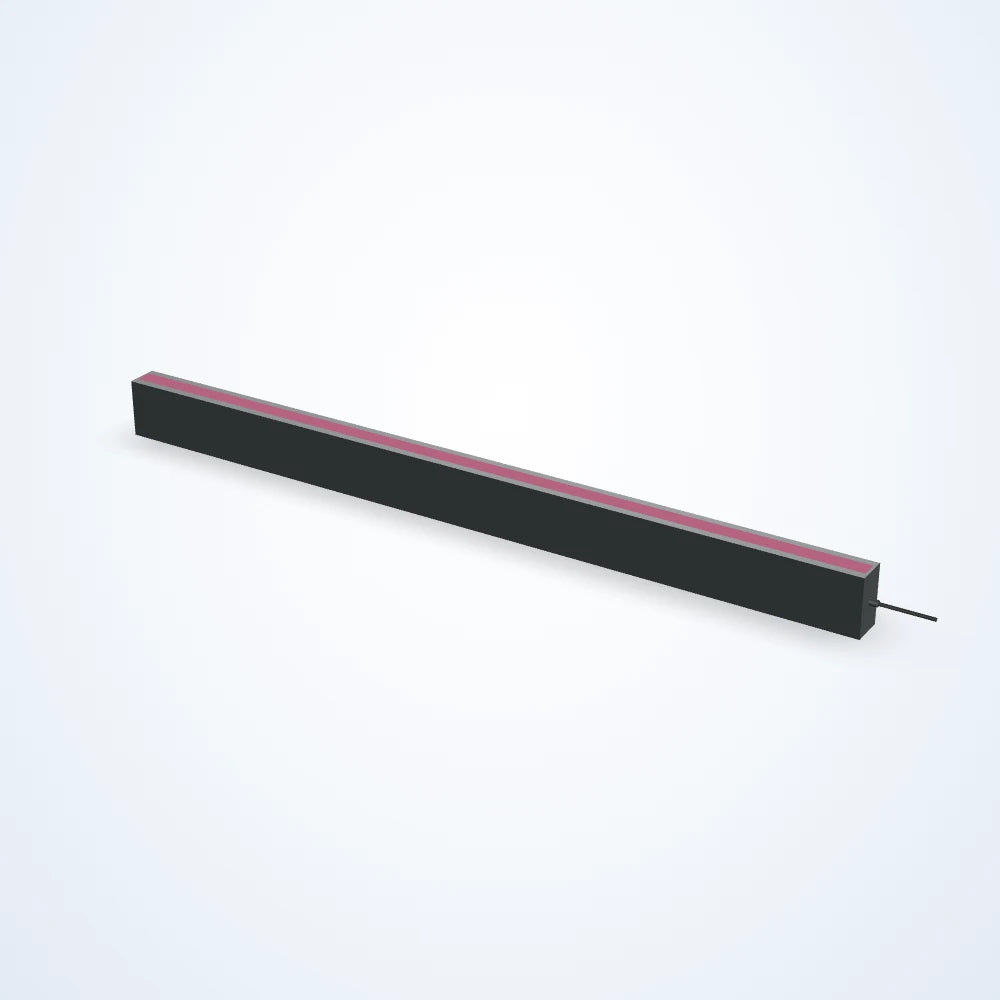

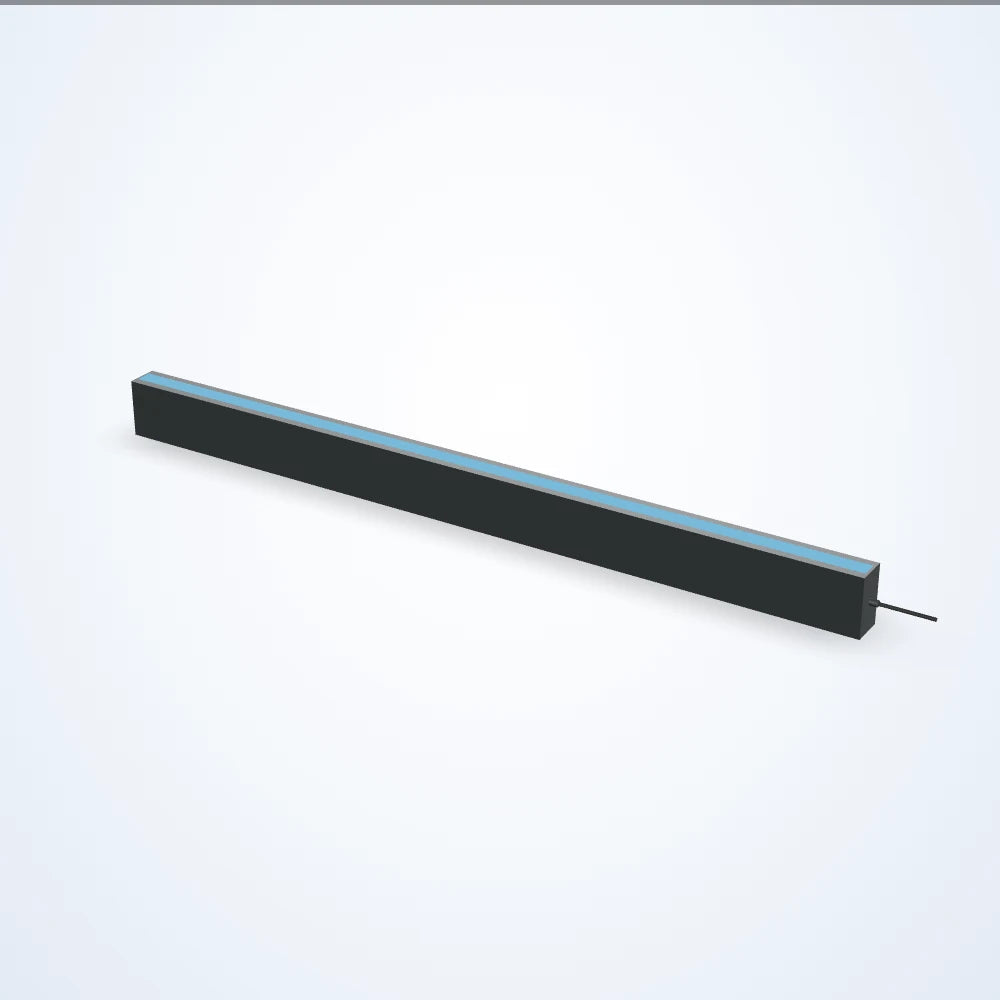

Backlight, 1218 x 24.6 mm lit area (LS-BKL-0023)

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 1218 x 24.6 mm lit area (LS-BKL-0023)

Model LS-BKL-0023

ColourWhite, Red, Green, Infrared, Blue
Voltage24 VDC
TypeStandard
Wavelength850 nm

from $6,339.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 10 available

Colour

Driver included

Driver location

Intensity control

Operating modes

Configuration LS-BKL-0023-01 $6,339.00

List price of this configuration; the final quote follows.

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1218 x 24.6 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (10 configurations) and request a quote.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0023
Connection at light	Hardwired
Collimated	Not Collimated
Daisy chain	No
Direct connect	No
Maximum duty cycle (%)	100
Polarized	Not Polarized

Interfaces and I/O

Connector	Flying Leads
Cable length (mm)	2000

Light

Diffused	Not Diffused

Environment and compliance

Operating temperature	up to 60 °C
IP rating	IP50
Compliance	CE, IEC 62471, RoHS
Minimum operating temperature	32 °F (0 °C)

Electrical

Voltage	24 VDC
Strobe trigger input	Constant On Only
Maximum constant on current (mA)	6032 / 8043 (by configuration)
Maximum input power constant on (W)	144.8 / 193 (by configuration)

Mechanical

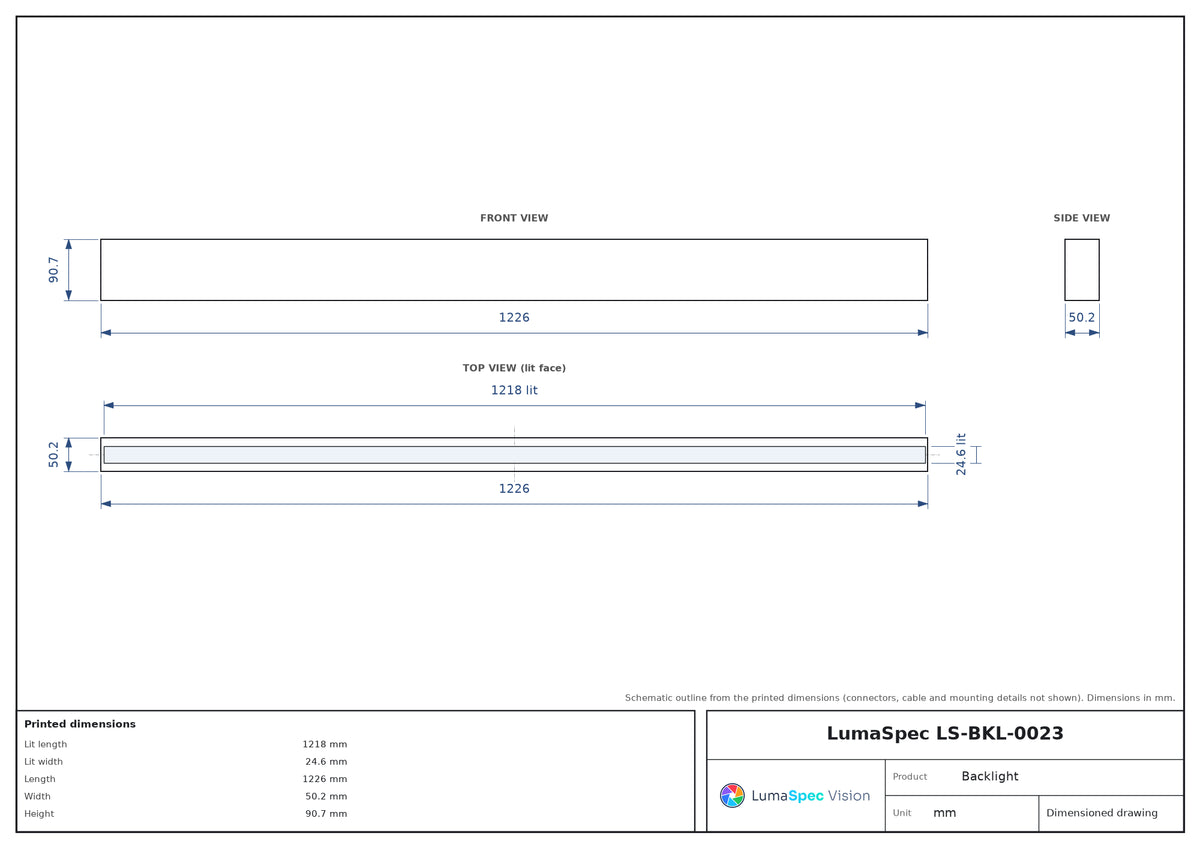

Lit length (mm)	1218
Lit width (mm)	24.6
Length (mm)	1226
Width (mm)	50.2
Height (mm)	90.7
Housing	Aluminum
Mounting	T-Slot Channel

Other models in the Backlight series, 90.7 mm high, Flying Leads (S02) series

See all 17 models

Model	Size / key data	Price	Availability	Link
LS-BKL-0015	77.2 x 24.6 mm	$789.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0016	152.4 x 24.6 mm	$1,029.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0017	304.8 x 24.6 mm	$1,849.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0018	457.2 x 24.6 mm	$2,639.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0019	609.6 x 24.6 mm	$3,409.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0020	762 x 24.6 mm	$4,169.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0021	913.1 x 24.6 mm	$4,909.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0022	1066 x 24.6 mm	$5,629.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0024	1370 x 24.6 mm	$7,029.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0025	1522 x 24.6 mm	$7,709.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0026	1674 x 24.6 mm	$8,359.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0027	1827 x 24.6 mm	$9,009.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0028	1979 x 24.6 mm	$9,639.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0029	2131 x 24.6 mm	$10,249.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0030	2283 x 24.6 mm	$10,839.00 Quote	Built to order: ships in about 4-5 weeks	View
LS-BKL-0031	2435 x 24.6 mm	$11,409.00 Quote	Built to order: ships in about 4-5 weeks	View
