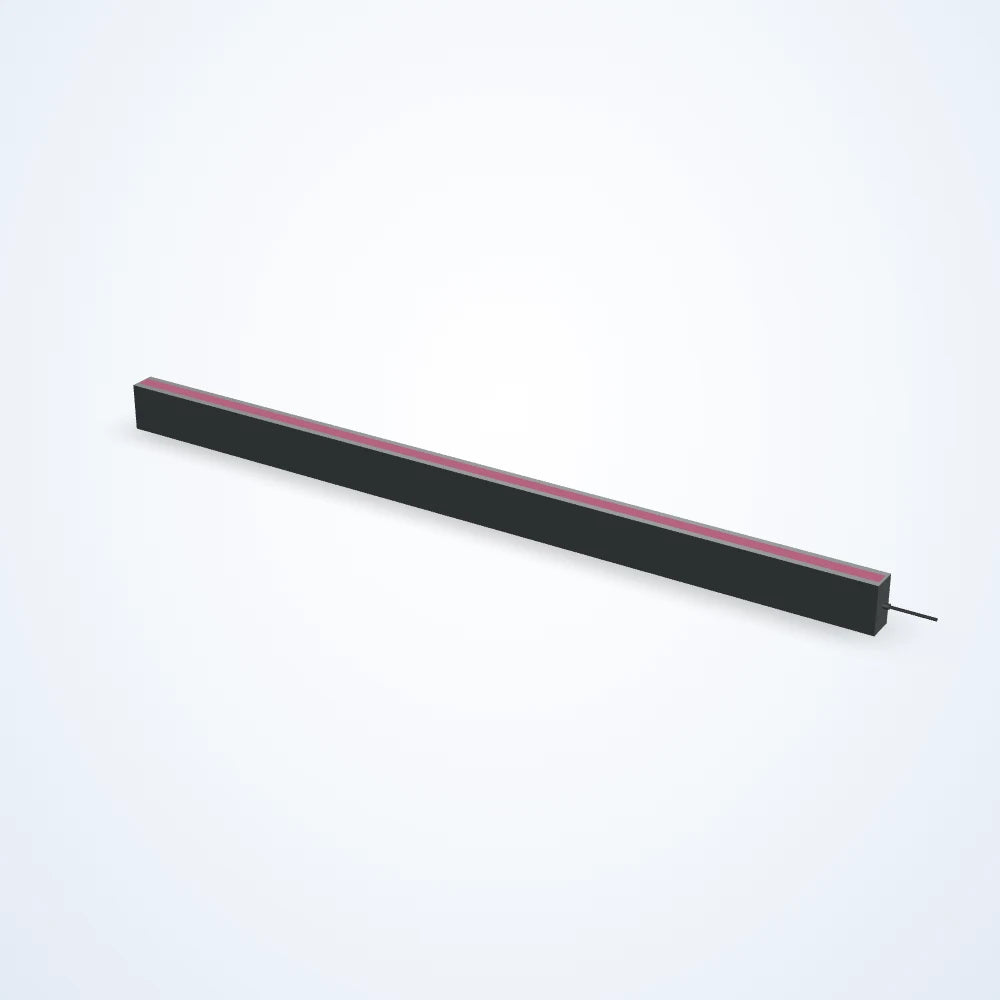

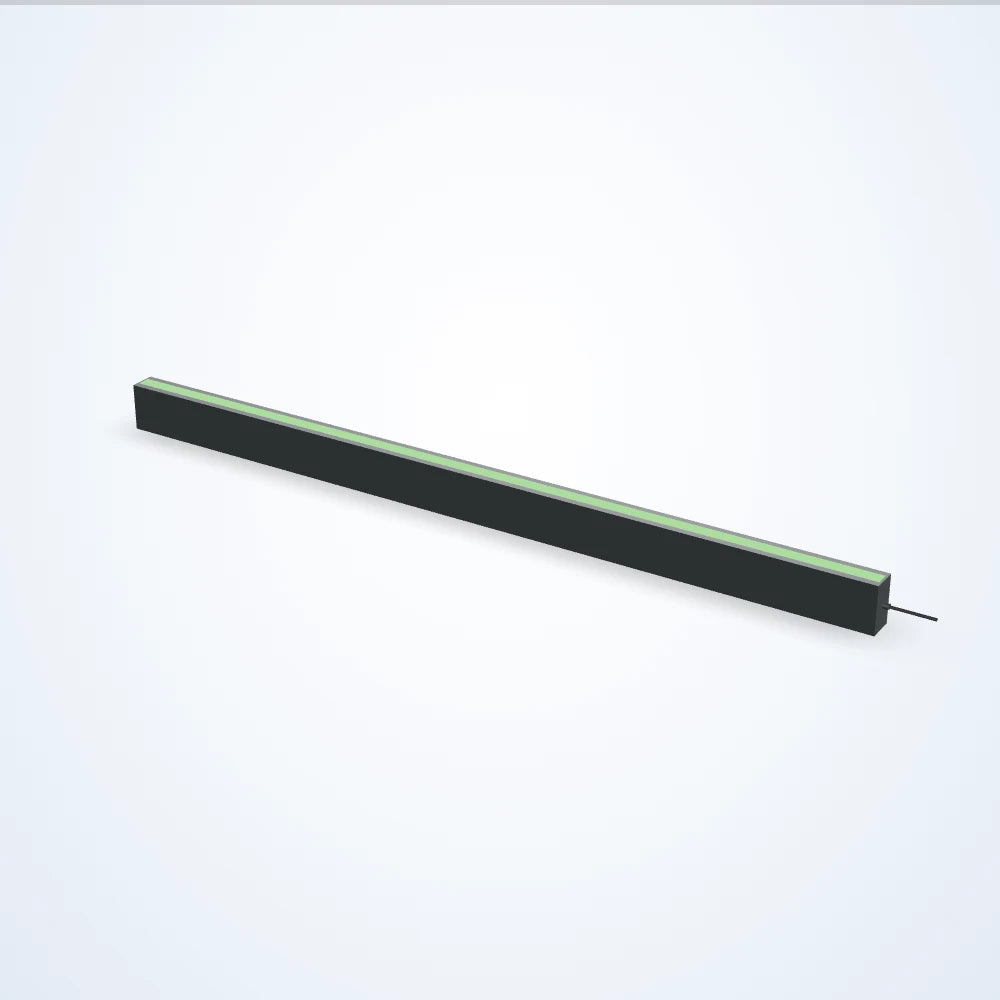

Backlight, 1522 x 24.6 mm lit area (LS-BKL-0025)
Model LS-BKL-0025
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength850 nm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 10 available
Configuration LS-BKL-0025-01 $7,709.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1522 x 24.6 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (10 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0025 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 7532 / 10043 (by configuration) |
| Maximum input power constant on (W) | 180.8 / 241 (by configuration) |

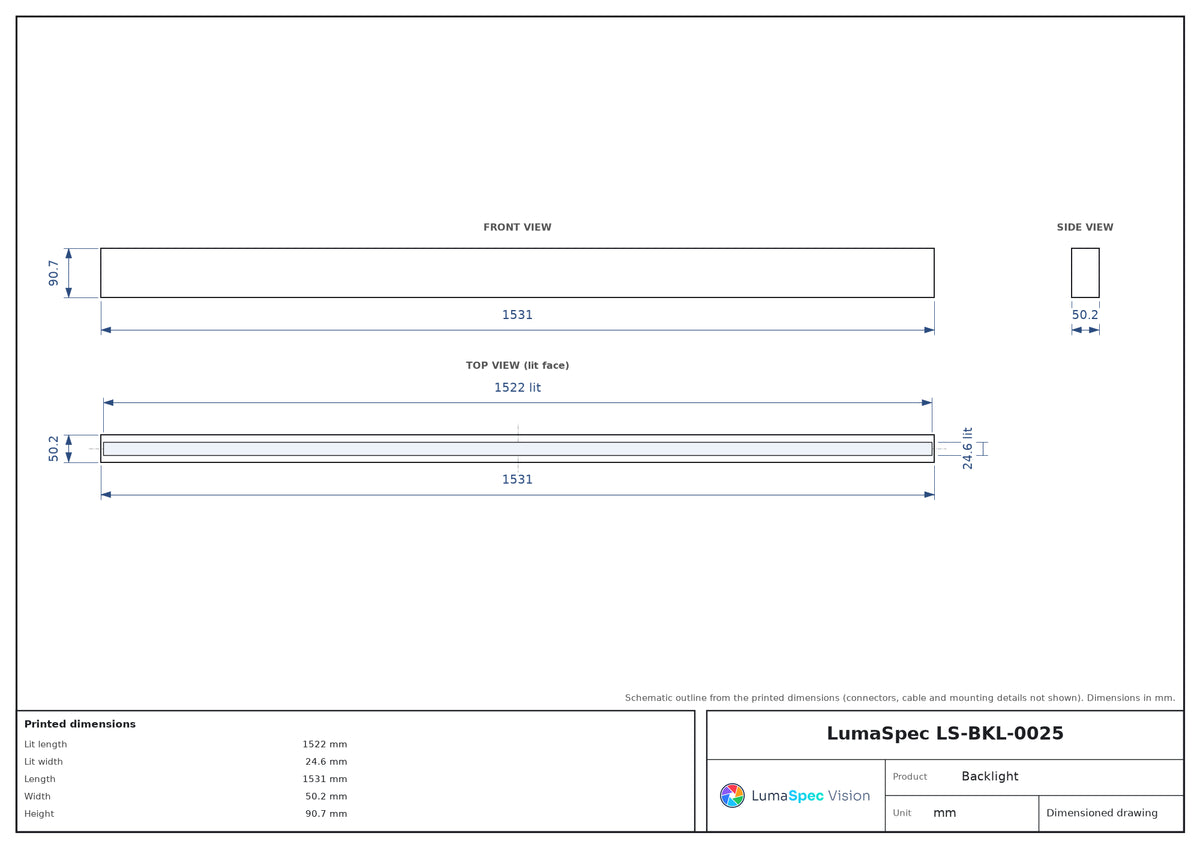

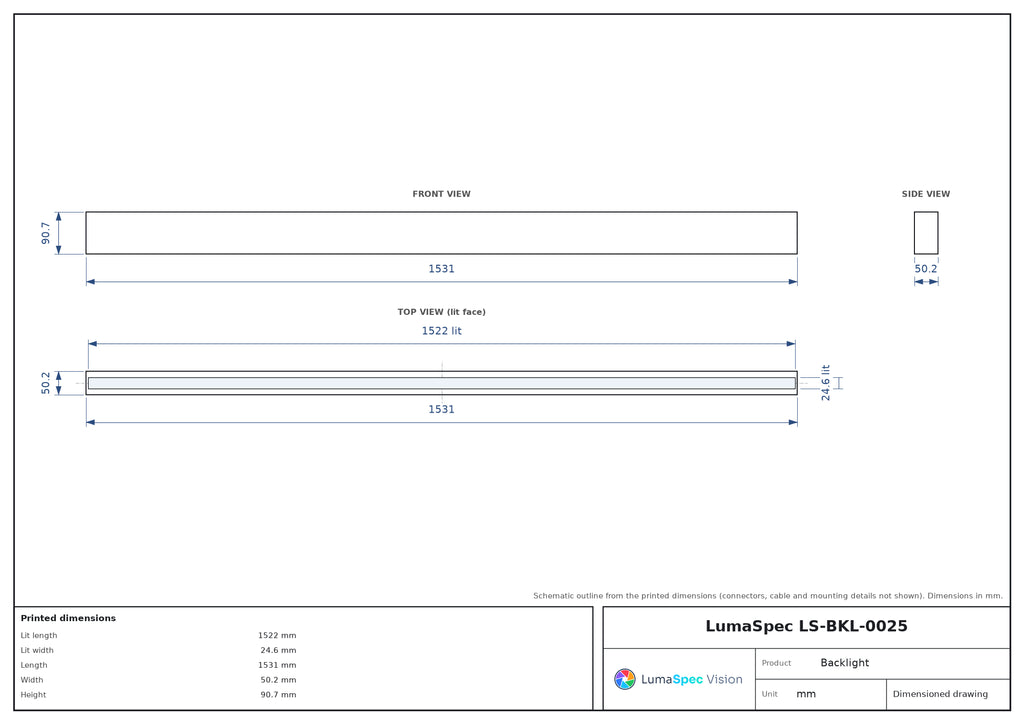

Mechanical
| Lit length (mm) | 1522 |
|---|---|
| Lit width (mm) | 24.6 |
| Length (mm) | 1531 |
| Width (mm) | 50.2 |
| Height (mm) | 90.7 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
