High-brightness bar light (series view)
  • High-brightness bar light (series view)
  • High-brightness bar light (series view)

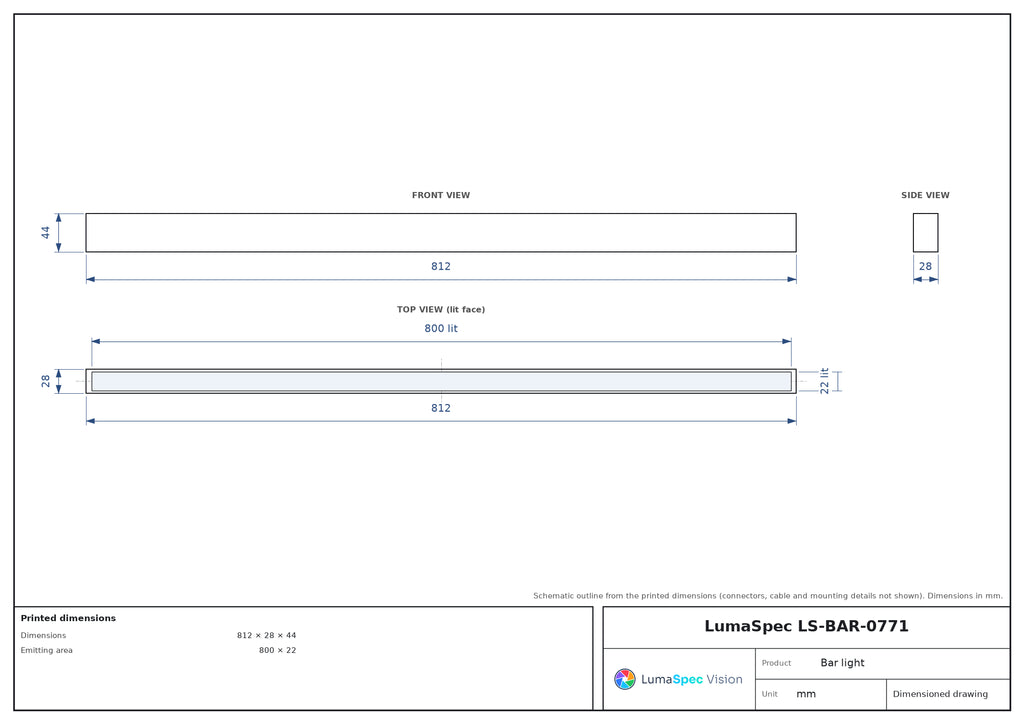

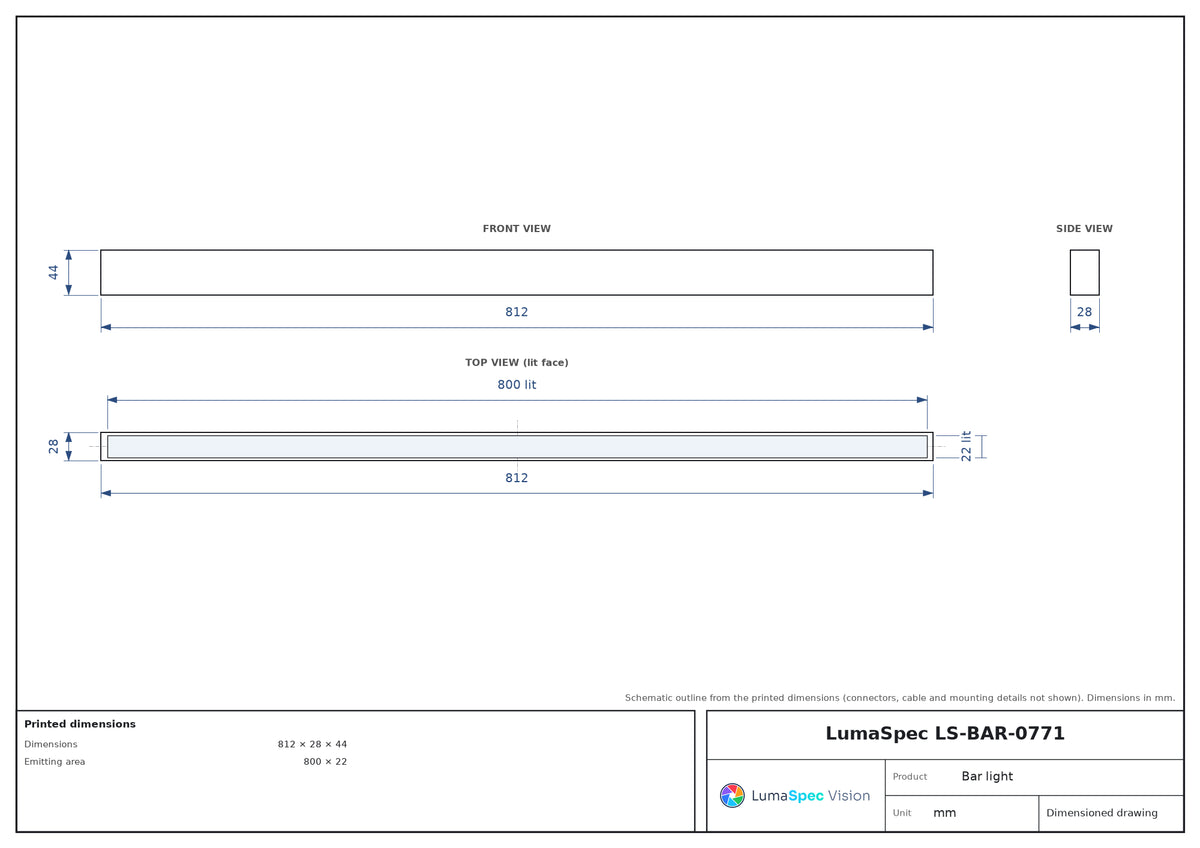

  • 800 x 22 mm high-brightness bar light

Rendered illustration: the actual product may differ in appearance.

Bar lights

800 x 22 mm high-brightness bar light (LS-BAR-0771)

Model LS-BAR-0771-W

  • ColourWhite, Red, Blue, Green
  • Emitting area800 × 22 mm
  • Size812 × 28 × 44 mm
  • Voltage24 V
  • Power68.0 W
$632.00

Ships in 3-4 weeks

1.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

800 x 22 mm high-brightness bar light (LS-BAR-0771)LS-BAR-0771-W

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-brightness bar light for directional and low-angle illumination. Emitting area 800 x 22 mm; 24 V supply; available in white, red, blue, green.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0771
Pin assignment1: (+), 2: NC, 3: (-)
Service lifeWhite:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Interfaces and I/O

ConnectorSMR-03 V-B
Cable length500 mm

Light

Emitting area (mm)800 × 22

Environment and compliance

Operating environmentTemperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage24 V
Power68.0 W

Mechanical

Dimensions (mm)812 × 28 × 44
Housing materialAluminum alloy, Resin
Shipping weight1.00 kg

Other models in the High-brightness bar lights (LS-BAR-S79) series

See all 20 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0757 100 x 22 mm from $220.00 Ships in 3-4 weeks View
LS-BAR-0758 100 x 35 mm from $269.00 Ships in 3-4 weeks View
LS-BAR-0760 200 x 35 mm from $339.00 Ships in 3-4 weeks View
LS-BAR-0759 200 x 22 mm from $385.00 Ships in 3-4 weeks View
LS-BAR-0761 300 x 22 mm from $407.00 Ships in 3-4 weeks View
LS-BAR-0763 400 x 22 mm from $440.00 Ships in 3-4 weeks View
LS-BAR-0765 500 x 22 mm from $440.00 Ships in 3-4 weeks View
LS-BAR-0762 300 x 35 mm from $485.00 Ships in 3-4 weeks View
LS-BAR-0764 400 x 35 mm from $503.00 Ships in 3-4 weeks View
LS-BAR-0766 500 x 35 mm from $538.00 Ships in 3-4 weeks View
LS-BAR-0767 600 x 22 mm from $539.00 Ships in 3-4 weeks View
LS-BAR-0769 700 x 22 mm from $583.00 Ships in 3-4 weeks View
LS-BAR-0768 600 x 35 mm from $638.00 Ships in 3-4 weeks View
LS-BAR-0770 700 x 35 mm from $693.00 Ships in 3-4 weeks View
LS-BAR-0773 900 x 22 mm from $693.00 Ships in 3-4 weeks View
LS-BAR-0775 1000 x 22 mm from $770.00 Ships in 3-4 weeks View
LS-BAR-0772 800 x 35 mm from $770.00 Ships in 3-4 weeks View
LS-BAR-0774 900 x 35 mm from $880.00 Ships in 3-4 weeks View
LS-BAR-0776 1000 x 35 mm from $990.00 Ships in 3-4 weeks View
