High-brightness bar light (series view)
  • High-brightness bar light (series view)
  • High-brightness bar light (series view)

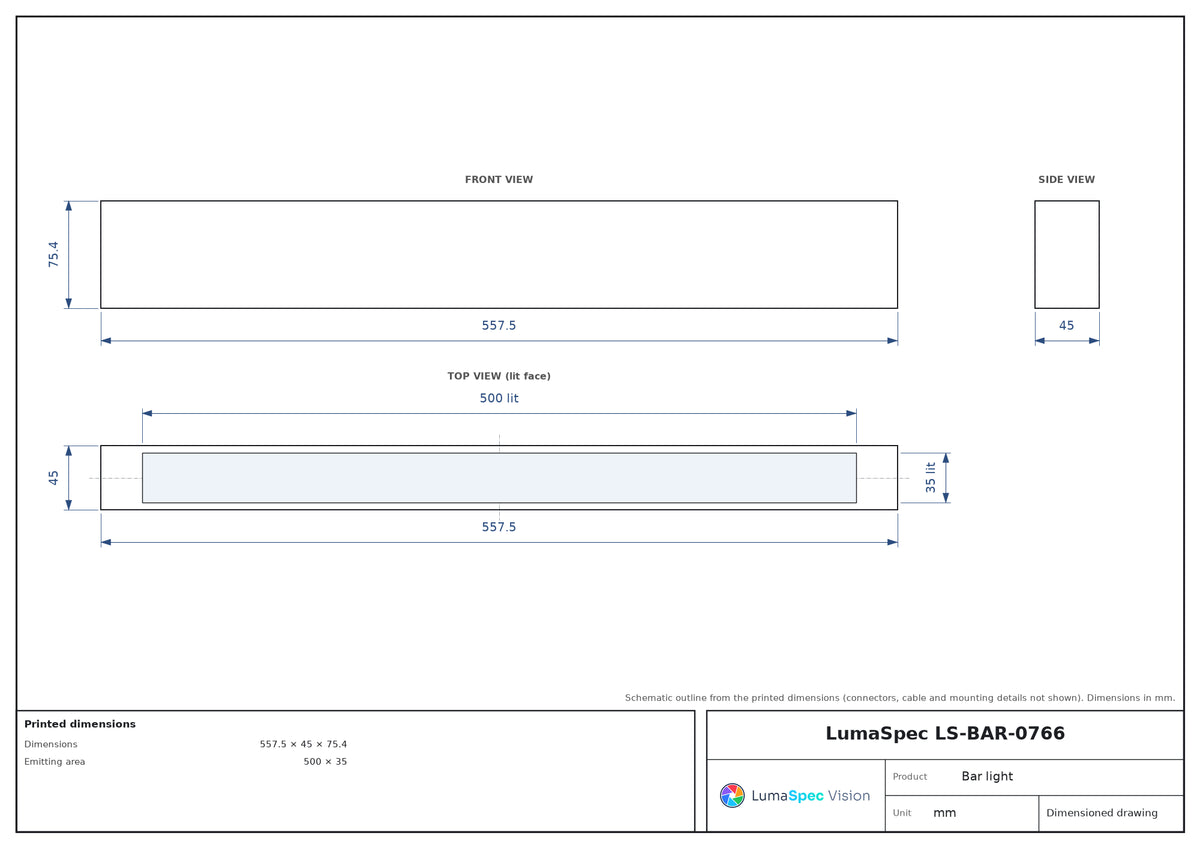

  • 500 x 35 mm high-brightness bar light

Rendered illustration: the actual product may differ in appearance.

Bar lights

500 x 35 mm high-brightness bar light (LS-BAR-0766)

Model LS-BAR-0766

  • ColourWhite, Red, Blue, Green
  • Emitting area500 × 35 mm
  • Size557.5 × 45 × 75.4 mm
  • Voltage24 V
  • Power85.0 W
$538.00

Ships in 3-4 weeks

2.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

500 x 35 mm high-brightness bar light (LS-BAR-0766)LS-BAR-0766

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-brightness bar light for directional and low-angle illumination. Emitting area 500 x 35 mm; 24 V supply; available in white, red, blue, green.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0766
Pin assignment1: (+), 2: NC, 3: (-)
Service lifeWhite:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Interfaces and I/O

ConnectorSMR-03 V-B
Cable length500 mm

Light

Emitting area (mm)500 × 35

Environment and compliance

Operating environmentTemperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage24 V
Power85.0 W

Mechanical

Dimensions (mm)557.5 × 45 × 75.4
Housing materialAluminum alloy, Resin
Shipping weight2.00 kg

Other models in the High-brightness bar lights (LS-BAR-S79) series

See all 20 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0757 100 x 22 mm from $220.00 Ships in 3-4 weeks View
LS-BAR-0758 100 x 35 mm from $269.00 Ships in 3-4 weeks View
LS-BAR-0760 200 x 35 mm from $339.00 Ships in 3-4 weeks View
LS-BAR-0759 200 x 22 mm from $385.00 Ships in 3-4 weeks View
LS-BAR-0761 300 x 22 mm from $407.00 Ships in 3-4 weeks View
LS-BAR-0763 400 x 22 mm from $440.00 Ships in 3-4 weeks View
LS-BAR-0765 500 x 22 mm from $440.00 Ships in 3-4 weeks View
LS-BAR-0762 300 x 35 mm from $485.00 Ships in 3-4 weeks View
LS-BAR-0764 400 x 35 mm from $503.00 Ships in 3-4 weeks View
LS-BAR-0767 600 x 22 mm from $539.00 Ships in 3-4 weeks View
LS-BAR-0769 700 x 22 mm from $583.00 Ships in 3-4 weeks View
LS-BAR-0771 800 x 22 mm from $632.00 Ships in 3-4 weeks View
LS-BAR-0768 600 x 35 mm from $638.00 Ships in 3-4 weeks View
LS-BAR-0770 700 x 35 mm from $693.00 Ships in 3-4 weeks View
LS-BAR-0773 900 x 22 mm from $693.00 Ships in 3-4 weeks View
LS-BAR-0775 1000 x 22 mm from $770.00 Ships in 3-4 weeks View
LS-BAR-0772 800 x 35 mm from $770.00 Ships in 3-4 weeks View
LS-BAR-0774 900 x 35 mm from $880.00 Ships in 3-4 weeks View
LS-BAR-0776 1000 x 35 mm from $990.00 Ships in 3-4 weeks View
