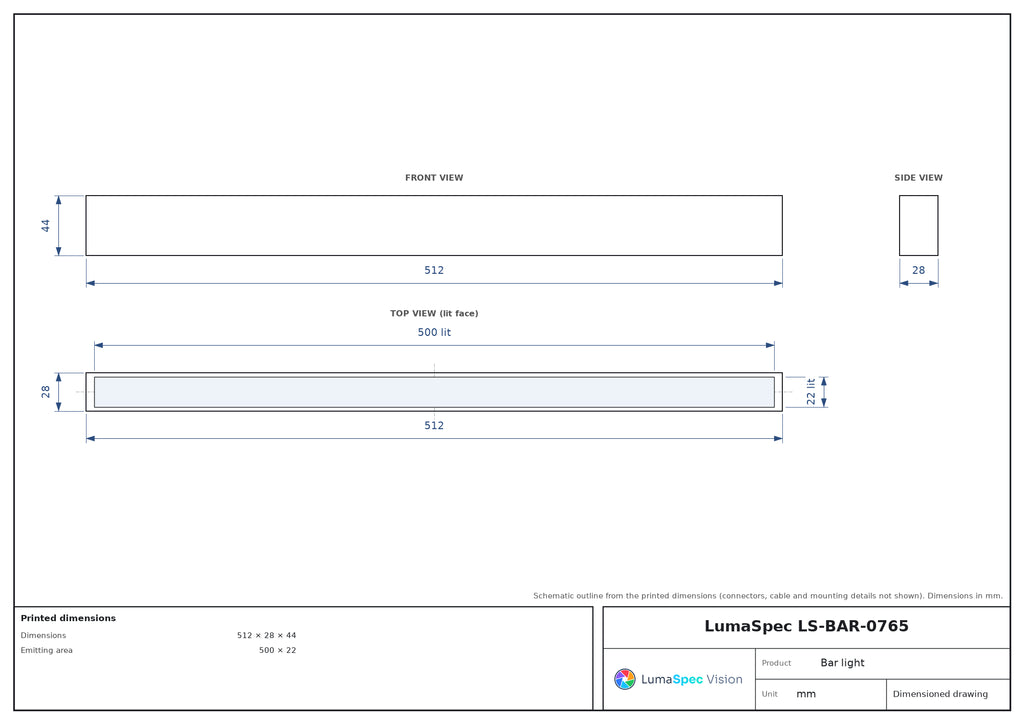

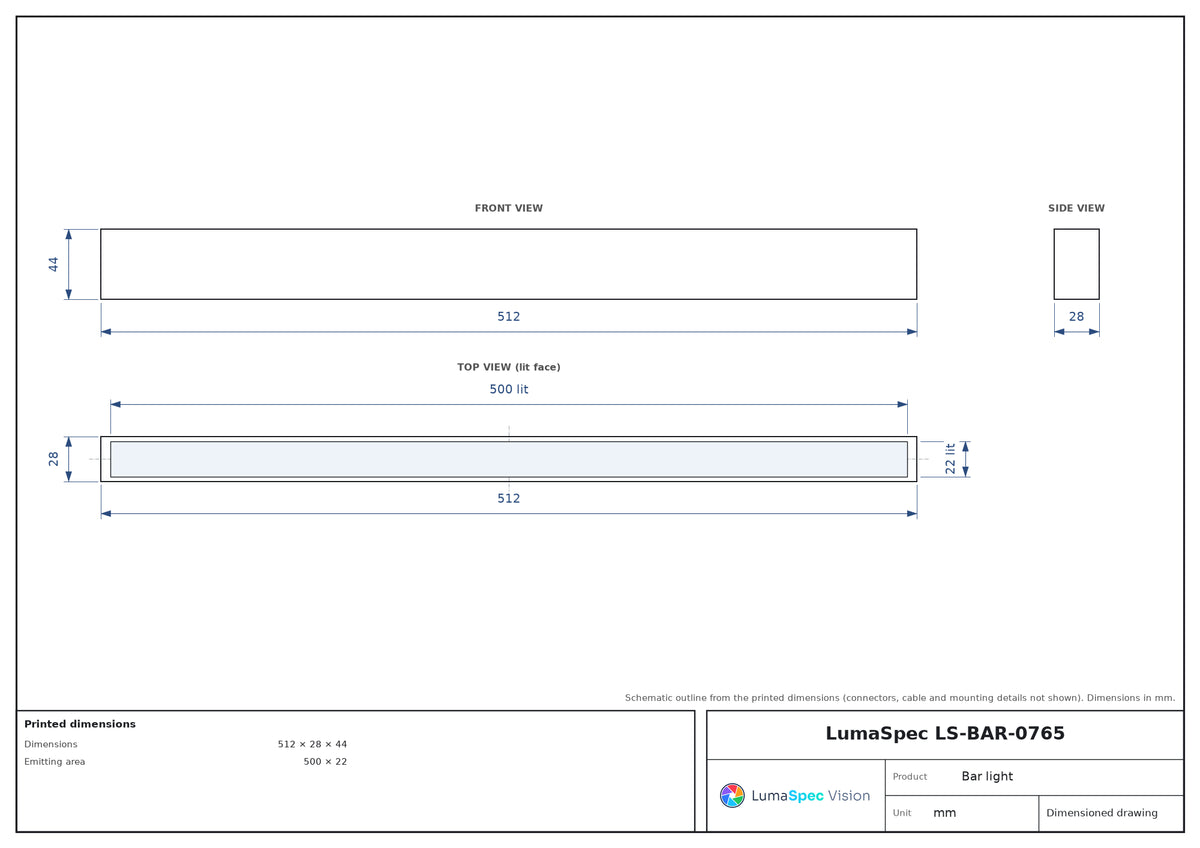

  • 500 x 22 mm high-brightness bar light

Rendered illustration: the actual product may differ in appearance.

Bar lights

500 x 22 mm high-brightness bar light (LS-BAR-0765)

Model LS-BAR-0765

  • ColourWhite, Red, Blue, Green
  • Emitting area500 × 22 mm
  • Size512 × 28 × 44 mm
  • Voltage24 V
  • Power42.5 W
$440.00

Ships in 3-4 weeks

2.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

500 x 22 mm high-brightness bar light (LS-BAR-0765)LS-BAR-0765

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-brightness bar light for directional and low-angle illumination. Emitting area 500 x 22 mm; 24 V supply; available in white, red, blue, green.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0765
Pin assignment1: (+), 2: NC, 3: (-)
Service lifeWhite:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Interfaces and I/O

ConnectorSMR-03 V-B
Cable length500 mm

Light

Emitting area (mm)500 × 22

Environment and compliance

Operating environmentTemperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage24 V
Power42.5 W

Mechanical

Dimensions (mm)512 × 28 × 44
Housing materialAluminum alloy, Resin
Shipping weight2.00 kg
