Cables

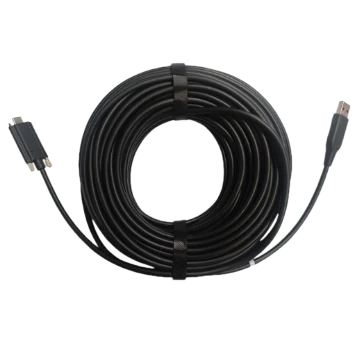

Camera Data Cable, Type-C male, screw locking to A male, 15 m (LS-ACU3-CMS-AM-SF-15M)
Model LS-ACU3-CMS-AM-SF-15M
- Length15 m
- End AType-C male, screw locking
- End BA male
- Diameter4.8 mm
- Max. voltage5 VDC
- JacketTPU
$79.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Camera Data Cable, Type-C male, screw locking to A male, 15 m.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ACU3-CMS-AM-SF-15M |
|---|---|
| Jacket | TPU |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | Type-C male, screw locking |
|---|---|
| End B connector | A male |
| Cable diameter | 4.8 mm |
| Cable mechanical | AOC-Hybrid-U-2A1b+6*24AWG+B |
| Cable color | Black |
| Connector durability | 5, 000 mating cycles |
| Applicable scenario | Static scenes / drag chains |
Environment and compliance
| Working temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 5 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 57.6 mm |
| Max. U-type bending cycles | 10 million times |
| Shipping weight (estimated) | 0.31 kg |
