Cables

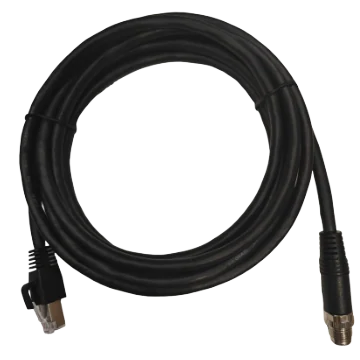

Camera Data Cable, M8 12-pin connector, Male to RJ45, 15 m (LS-ACG-M12X8M-RJ45-ST-15M)
Model LS-ACG-M12X8M-RJ45-ST-15M
- Length15 m
- End AM8 12-pin connector, Male
- End BRJ45
- Diameter6 mm
- Max. voltage30 VDC
- JacketPVC
$69.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Camera Data Cable, M8 12-pin connector, Male to RJ45, 15 m. M12 8-pin X-coded standard aviation-connector Ethernet cable for data transmission with GigE cameras; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ACG-M12X8M-RJ45-ST-15M |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M8 12-pin connector, Male |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6 mm |
| Cable mechanical | 26#*4P+AB |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 72 mm |
| Shipping weight (estimated) | 0.31 kg |
