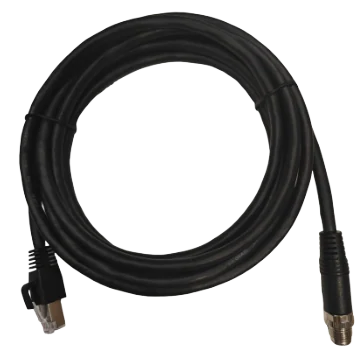

Camera Data Cable, M12 8-pin connector, Male to RJ45, 15 m, drag-chain and robot-arm use (LS-ACG-M12X8M-RJ45-SF-15M)
Model LS-ACG-M12X8M-RJ45-SF-15M
- Length15 m
- End AM12 8-pin connector, Male
- End BRJ45
- Diameter6.5 mm
- Max. voltage30 VDC
- JacketPVC
$69.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Camera Data Cable, M12 8-pin connector, Male to RJ45, 15 m. M12 8-pin X-coded ultra-flex aviation-connector Ethernet cable for data transmission with GigE cameras; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ACG-M12X8M-RJ45-SF-15M |
|---|---|
| Jacket | PVC |
| Max. ±180° torsional cycles | 5 million times |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12 8-pin connector, Male |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Cable mechanical | 26#*4P+AB |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Static/drag-chain/robot arm |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 78 mm |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 3 million times |
| Shipping weight (estimated) | 0.31 kg |
