80 x 80 mm Collimated LED Backlight (LS-2BCP-80X80)
Model LS-2BCP-80X80
- ColourRed, Green, Blue, White
- Emitting area80x80 mm
- Size94x94x23 mm
- Voltage24 V
- Power8.6 W
$119.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 or a formal quote?
80 x 80 mm Collimated LED Backlight. Collimated bottom-lit backlight in the 2BC-style finned heat-dissipation housing, 23-26 mm thick, with side M3 nut slots usable for installation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-2BCP-80X80 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 80x80 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 5.2 |
| Power W/B/G (W) | 8.6 |
Mechanical
| Outer size L x W x H (mm) | 94x94x23 |
|---|---|
| Mounting | M3 depth 4 (reverse) on back, qty X per drawing table; M3 nut slots in side profile |
| Heat sink | Finned heat-dissipation profile |
| Shipping weight (estimated) | 0.40 kg |

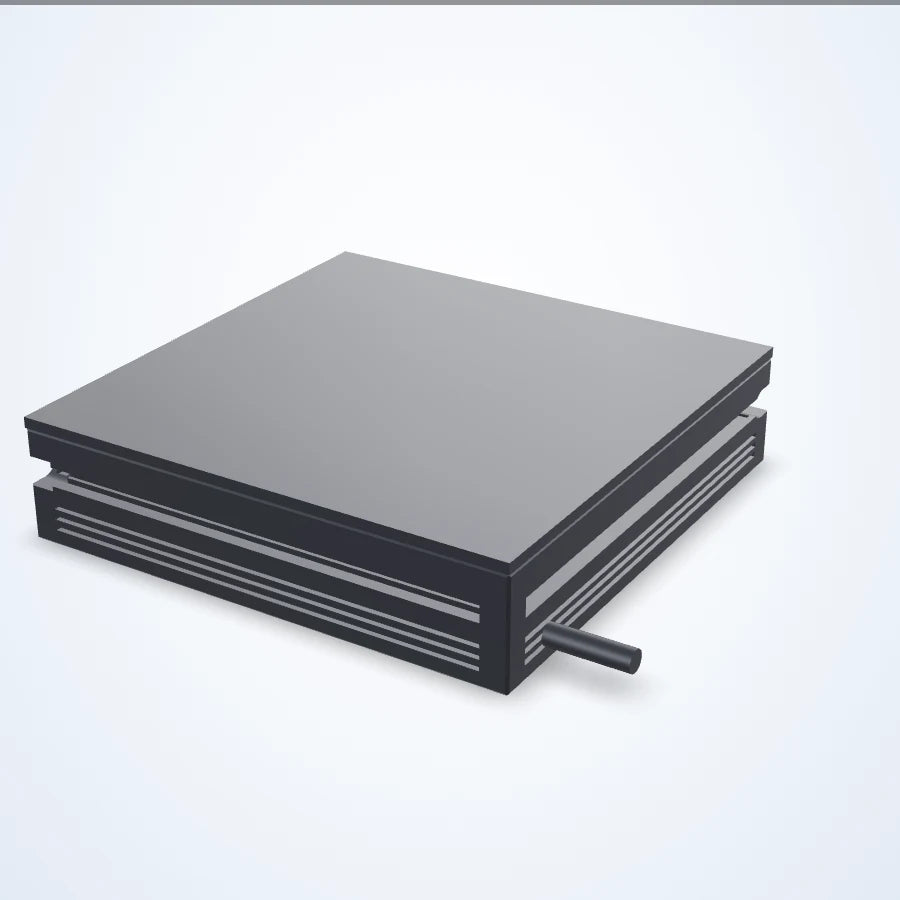

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
drawing table (LS-2BCP-AXB; X = qty of M3 depth-4 mounting holes, E = thickness): X=4, C=55, D=87, E=23
Other models in the Collimated Bottom Back Light (2BCP series) series
See all 18 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-2BCP-30X30 | 30 x 30 mm | $89.00 | 13 in stock | View |
| LS-2BCP-50X50 | 50 x 50 mm | $99.00 | 13 in stock | View |
| LS-2BCP-70X70 | 70 x 70 mm | $109.00 | 14 in stock | View |
| LS-2BCP-110X60 | 110 x 60 mm | $119.00 | 14 in stock | View |
| LS-2BCP-100X100 | 100 x 100 mm | $139.00 | 17 in stock | View |
| LS-2BCP-120X120 | 120 x 120 mm | $159.00 | 14 in stock | View |
| LS-2BCP-150X150 | 150 x 150 mm | $199.00 | 17 in stock | View |
| LS-2BCP-200X120 | 200 x 120 mm | $199.00 | 14 in stock | View |
| LS-2BCP-200X150 | 200 x 150 mm | $229.00 | 13 in stock | View |
| LS-2BCP-250X150 | 250 x 150 mm | $269.00 | 11 in stock | View |
| LS-2BCP-200X200 | 200 x 200 mm | $279.00 | 17 in stock | View |
| LS-2BCP-300X150 | 300 x 150 mm | $309.00 | 13 in stock | View |
| LS-2BCP-220X220 | 220 x 220 mm | $319.00 | 12 in stock | View |
| LS-2BCP-280X280 | 280 x 280 mm | $469.00 | 12 in stock | View |
| LS-2BCP-300X300 | 300 x 300 mm | $519.00 | 14 in stock | View |
| LS-2BCP-400X300 | 400 x 300 mm | $669.00 | 16 in stock | View |
| LS-2BCP-400X400 | 400 x 400 mm | $859.00 | 13 in stock | View |
