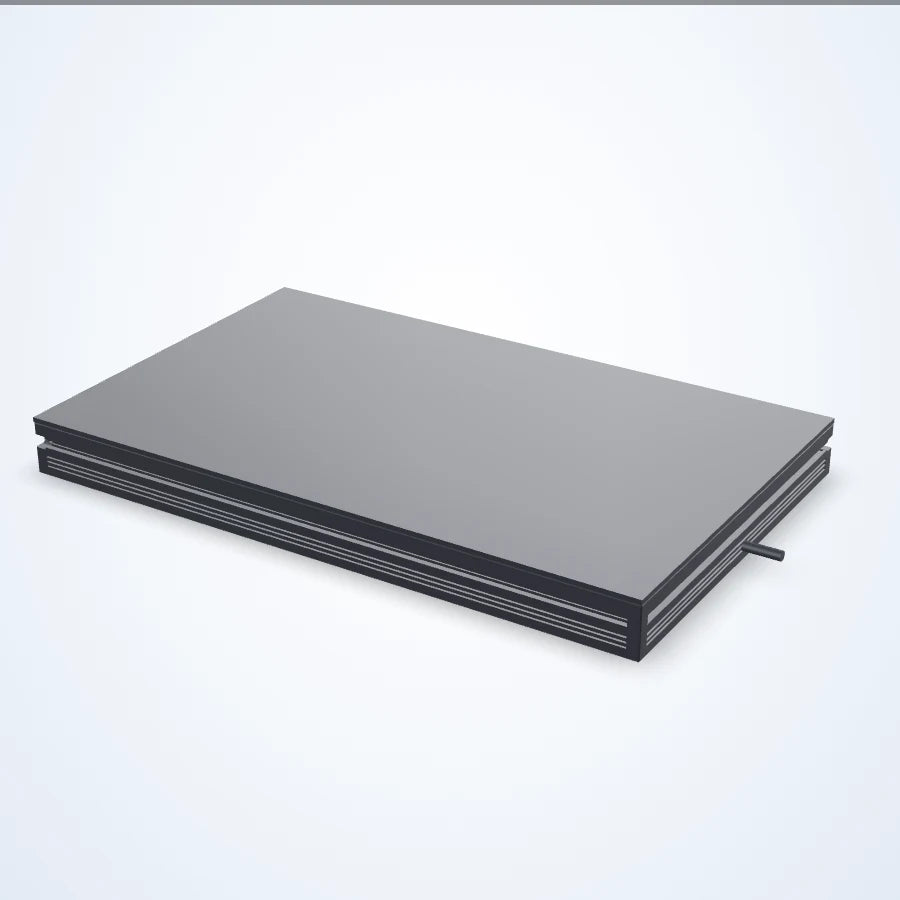

  • LS-2BCP-250X150 3D render
  • LS-2BCP-250X150 dimensions (mm)
  • LS-2BCP-250X150 3D model

Backlights

250 x 150 mm Collimated LED Backlight (LS-2BCP-250X150)

Model LS-2BCP-250X150

  • ColourRed, Green, Blue, White
  • Emitting area250x150 mm
  • Size264x164x24 mm
  • Voltage24 V
  • Power41.5 W
$269.00

In stock - ships the same business day (2 available, order by 2 PM ET)

1.25 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

250 x 150 mm Collimated LED Backlight. Collimated bottom-lit backlight in the 2BC-style finned heat-dissipation housing, 23-26 mm thick, with side M3 nut slots usable for installation.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-2BCP-250X150

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)250x150
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)27.6
Power W/B/G (W)41.5

Mechanical

Outer size L x W x H (mm)264x164x24
MountingM3 depth 4 (reverse) on back, qty X per drawing table; M3 nut slots in side profile
Heat sinkFinned heat-dissipation profile
Shipping weight (estimated)1.25 kg

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

not in drawing table (drawing table lists 2BCP-250X250: X=6, C=200, D=257, E=24 instead)
